TOM40M Above Ground Swing Gate Operator
Product Description

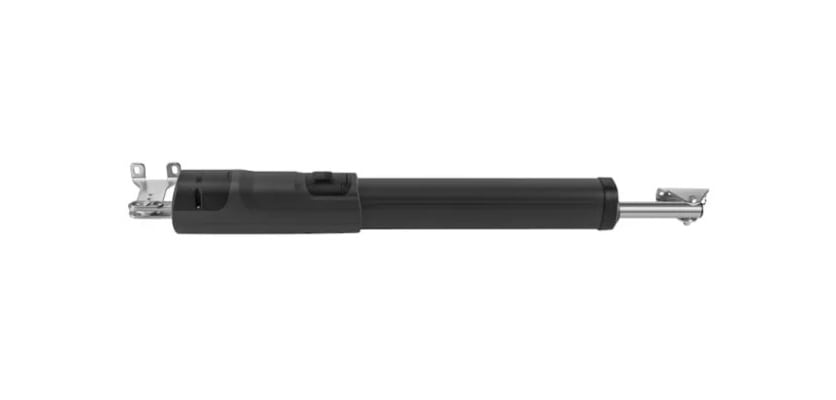

TOM40M Above Ground Swing Gate Operator
The TOM40M is a 230 Vac linear telescopic operator for gate leaves up to 3.5m and is ideal for residential settings.
The TOM40M is a dependable and cutting-edge gear motor designed with two adjustable mechanical stops to ensure smooth operation during opening and closing. Conveniently accessible from above and positioned beneath the metal cover of the shaft, these stops provide ease of use. Specifically crafted for automating a range of swing gates, it impresses with its compact 96mm width footprint and screw-in brackets, facilitating straightforward installation.
The 45° angle of the wiring cable minimises ground clearance, keeping it to a minimum. Rear and front brackets aligned on the same axis optimise load distribution, thereby enhancing the actuator's lifespan. Furthermore, protected by a wiper ring and stainless steel shaft, the worm screw ensures suitability for environments with dust, sand, or harsh weather conditions.
The FACE gears enable decreased sensitivity to misalignment, minimal transmission errors, and quiet motor operation.
Features
A non-reversible 230 Vac electromechanical gear motor featuring patented FACE gears.
It comes with easily adjustable limit switches for both opening and closing, accessible from above.
Additionally, it includes adjustable mechanical stops for precise control during operation.
First Fence has a full range of gate automation products and accessories for you to choose from, as well as an extensive range of gates, including access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product line, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. The team can be reached by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1375mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.3 A |
| Maximum Thrust | 2000 N |
| Opening Time | 24 Seconds |
| Duty Cycle | 30% |
| Maximum Stroke | 400mm |
| Protection Level | IP44 |
| Encoder | No |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 3.5m |
| Wind Loading | 50% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Screw on |
| Compatible Control Panels | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
