TOM30ME Above Ground Swing Gate Operator
Product Description

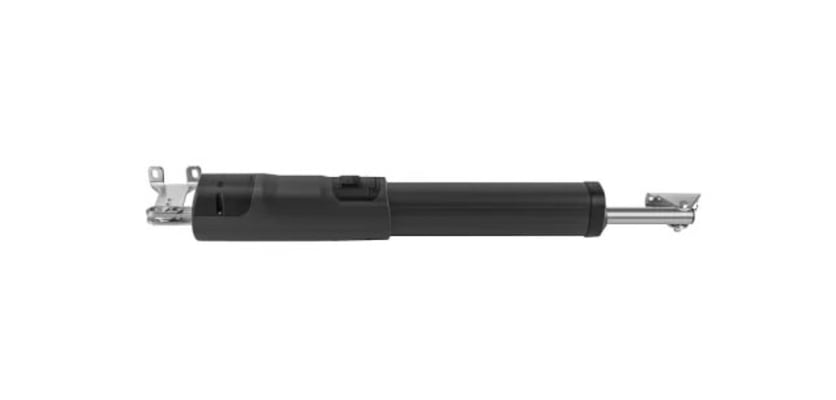

TOM30ME Above Ground Swing Gate Operator
The TOM30ME Swing Gate Operator is a 230 Vac linear telescopic opener for gate leaves up to 2.5m. This type of gate operator is ideal for residential gates.
The TOM30ME is a dependable and cutting-edge gear motor, benefiting from two adjustable mechanical stops for opening and closing. These are conveniently accessible from above and positioned beneath the metal cover of the shaft.
Perfect for automating various types of swing gates, thanks to its compact footprint (a mere 96mm width) and screw-in brackets. The 45° angle of the wiring cable minimises distance from the ground. Rear and front brackets, aligned on the same axis, enhance load distribution, optimising the actuator's lifespan.
The worm screw is protected by a wiper ring and a stainless steel shaft. This design lets the product work in dusty, sandy areas or harsh weather conditions.
Features
The TOM30ME is a 230 Vac linear telescopic operator designed for gate leaves up to 2.5 meters.
It features a non-reversible 230 Vac electromechanical gear motor with patented FACE gears.
Includes adjustable mechanical stops for both opening and closing.
The encoder in the TOM30ME version provides crush prevention and enhances precision during gate movement.
First Fence has a full range of gate automation products and accessories for you to choose from. as well as a huge range of gates including access gates, including palisade, mesh, railings, and specialist and custom offerings.
Here to help
If you need any assistance with this product range, please get in touch. The sales team is waiting to help you with the advice needed to ensure you get the perfect product. You can contact us by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Length | 1175mm |
| Motor Supply | 230 Vac |
| Maximum Absorbed Current | 1.3 A |
| Maximum Thrust | 2000 N |
| Opening Time | 18 Seconds |
| Duty Cycle | 30% |
| Maximum Stroke | 300mm |
| Protection Level | IP44 |
| Encoder | Yes |
| Built In Physical Stops | Yes |
| Operating Temperature | -20°C/+50°C |
| Max Gate Width | 2.5m |
| Wind Loading | 75% |
| Motor Type | Electromechanical |
| Gate Usage | Residential |
| Fixing Bracket Type | Screw on |
| Compatible Control Panels | Brainy |
What's Included
| Name | Quantity |
|---|---|
| Single Motor | 1 |
| Fixing Brackets | 1 |
| Manual Release Key | 1 |
| Instruction Manual | 1 |
