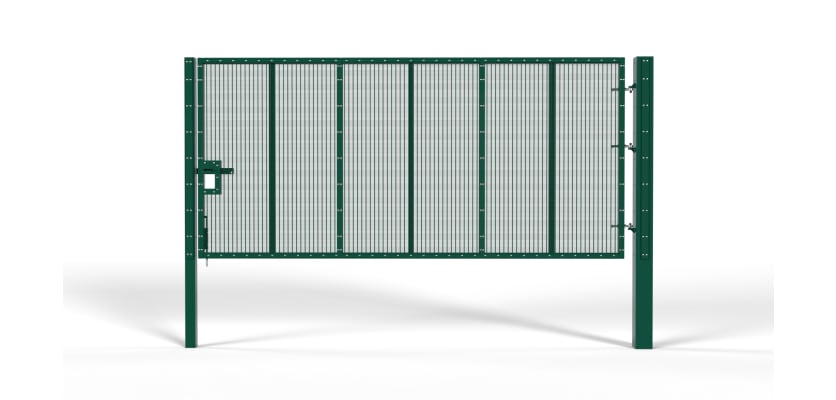

3.0m x 5.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 3000mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5470mm |
| Box Sections of Posts | [Hinge Post: 200mm x 200mm] [Catch Post: 120mm x 120mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
3.0m x 5.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
Offering a maximum 5.0m opening at a formidable 3.0m height, this ProFence® 2X single leaf gate is the definitive choice for securing wide access points where the highest level of certified security is non-negotiable.
The LPS 1175 B3 rating is a critical component in fulfilling the security obligations of sites of national critical importance. This 5.0m wide, 3.0m high gate is designed for sites like major port facilities or freight terminals, providing an imposing and certified barrier that allows for efficient movement of lorries and plant machinery while protecting essential national supply chains from disruption.
This gate's dimensions and rating also make it perfect for securing primary access points to heavy industrial sites or large-scale civil engineering projects. The vast opening accommodates the widest loads, while the 3.0m height and B3 rating protect high-value assets and machinery from theft and sabotage. For a continuous, certified high-security perimeter, this gate should be installed with the 3.0m high ProFence® 2X fence system.
This system carries the prestigious LPS 1175 certification and, as a Red Book listed product, it provides a trusted and verified solution for the ultimate protection against serious threats.
Features & Benefits

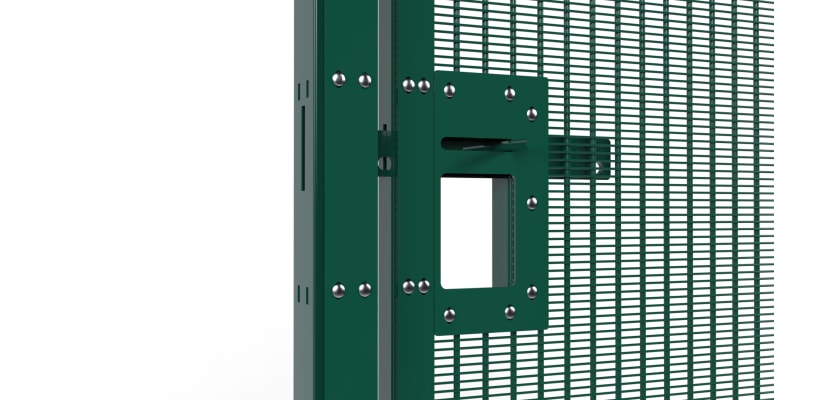

This comprehensive 3.0m x 5.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit contains one 5.0m leaf, a specially engineered hinge post designed for the extreme load, a heavy-duty catch post, and the required SR2-rated fixtures. The gate's locking system features a powerful slide latch that secures the long leaf firmly against the catch post.
The gate's structure is made from high-quality steel that has been hot-dip galvanised and polyester powder coated for superior protection against corrosion and wear. The rigid MeshPro® 10 mesh infill combined with the 3.0m height makes it an extreme anti-climb and anti-cut barrier. To prevent tampering, all three hinges are permanently secured with shear nuts.
Installation Made Easy
Installation is supported with options for either dig-in posts for soft ground or bolt-down posts for concrete. All ground anchor bolts are supplied with the bolt-down kits. For dig-in applications with this gate, a substantial foundation using at least four bags of Post Mix per post with C20 or C25 concrete is essential for safe and secure operation.
