3.0m x 4.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 3000mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4470mm |
| Box Sections of Posts | [Hinge Post: 200mm x 200mm] [Catch Post: 120mm x 120mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
3.0m x 4.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
This 3.0m high, 4.0m wide ProFence® 2X single leaf gate is one of the most imposing security barriers available, certified to the LPS 1175 SR2 (B3) standard for high-risk applications.
The robust nature of the LPS 1175 B3 certification gives security managers the confidence to specify wide-opening gates without creating a vulnerability. This 4.0m gate is ideal for the main vehicular entrance to secure government buildings or MoD facilities, where the 3.0m height provides a powerful visual deterrent and the certified construction provides a proven delay against hostile acts.
It is also a critical security element for securing the perimeters of airports and aviation facilities. The 4.0m width allows for the movement of service vehicles and baggage carts on airside roads, while the maximum height and B3 rating meet the stringent security protocols required for such establishments. Ensure a fully compliant perimeter by using this gate with the 3.0m high ProFence® 2X fence kit.
Its inclusion in the Red Book guarantees its elite security credentials, confirming its ability to resist a prolonged, professional assault.
Features & Benefits

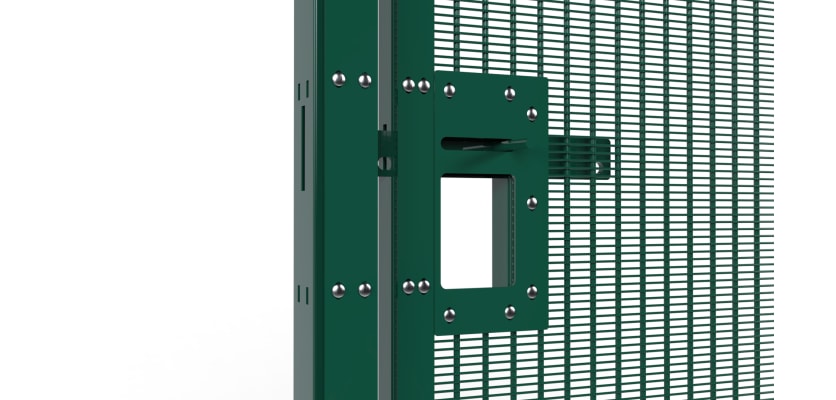

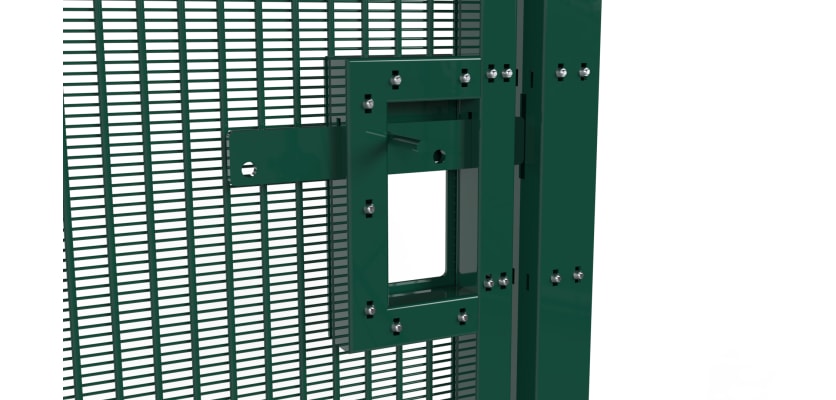

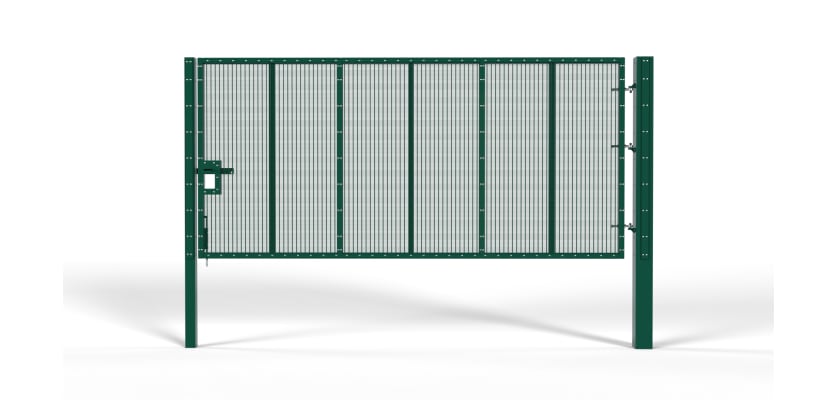

The 3.0m x 4.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit includes one 4.0m wide gate leaf, a specially engineered heavy-duty hinge post, a reinforced catch post, and all essential SR2-rated hardware. Security is assured by a powerful central sliding latch, which ensures the wide gate leaf is held rigidly and cannot be forced.
Its robust steel frame is protected by a hot-dip galvanised coating and a tough polyester powder finish for an extremely long service life. The gate leaf is filled with MeshPro® 10 security mesh, which, at this height, provides an exceptional anti-climb deterrent. The three gate eyes are attached using shear nuts for a permanent, tamper-proof fit.
Installation Made Easy
Supplied in either dig-in or bolt-down options. The bolt-down version includes all necessary ground anchor bolts. For a permanent and stable installation of the 3.0m dig-in posts, we recommend using a minimum of four bags of Post Mix per post with C20 or C25 grade concrete.
