3.0m x 2.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 3000mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2370mm |
| Box Sections of Posts | [Hinge Post: 120mm x 120mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |

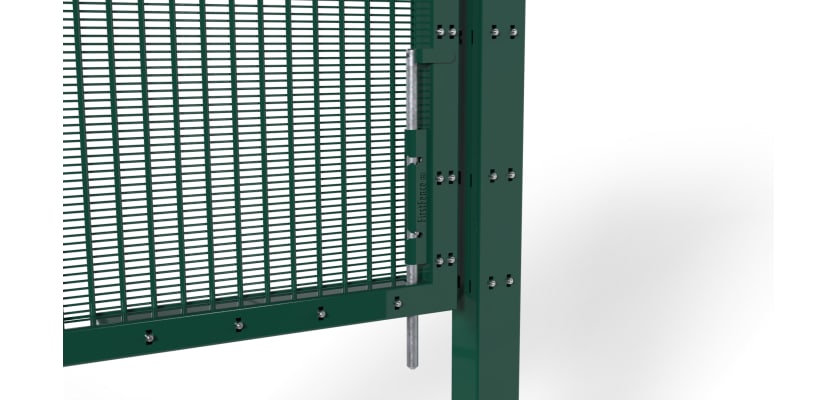

| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
3.0m x 2.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
Combining maximum height with a versatile 2.0m width, this ProFence® 2X single leaf gate offers a certified LPS 1175 B3 solution for a wide range of high-security applications.
This gate’s LPS 1175 B3 certification and 3.0m height provide an unparalleled layered defence. It is an ideal choice for securing access to external compounds at prisons or other secure institutions, allowing for the movement of small utility vehicles or equipment, while the extreme height and certified strength prevent any breach of the secure line.
Beyond government facilities, this gate is perfectly suited for securing the perimeter of high-value storage facilities for art, wine, or classic cars. The 2.0m width allows for the careful movement of crated goods, while the B3 rating provides the high level of security demanded by insurers for such valuable assets. A seamless high-security perimeter is formed by installing this gate with the 3.0m high ProFence® 2X fence.
Its Red Book listing guarantees it has been tested to withstand a three-minute, intensive attack from an intruder using advanced tools like axes and drills (Toolkit B).
Features & Benefits

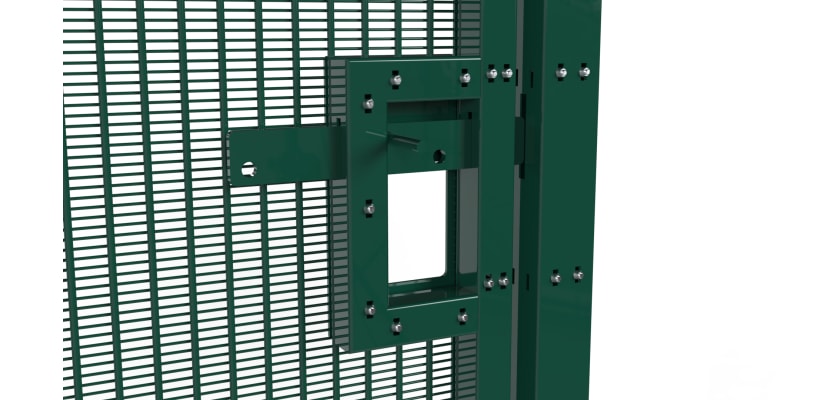

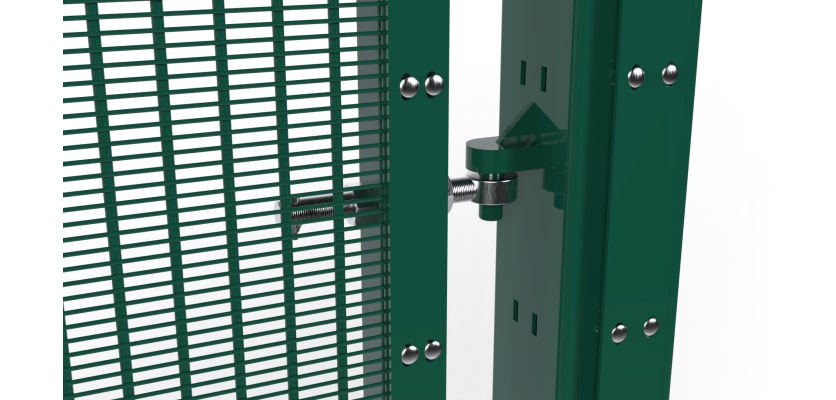

The complete 3.0m x 2.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit comprises one 2.0m wide gate leaf, a heavy-duty hinge post, a reinforced catch post, and three SR2-rated gate eyes. Its locking system features a powerful sliding latch for a padlock, ensuring the gate leaf is held rigidly and securely.
Fabricated from high-grade steel, the gate is protected by a hot-dip galvanised treatment and a tough polyester powder-coated layer for ultimate weather resistance and longevity. The gate's extreme anti-climb properties are delivered by its 3.0m height and the dense MeshPro® 10 mesh infill. The hinge system is secured with high-security shear nuts that cannot be removed after installation.
Installation Made Easy
Available in both bolt-down and dig-in formats. The bolt-down option is supplied with ground anchor bolts for fixing to concrete. To support the height and weight of this gate, the dig-in version requires a solid foundation using C20 or C25 concrete and a minimum of four bags of Post Mix per post.
