3.0m x 1.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 3000mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1330mm |
| Box Sections of Posts | [Hinge Post: 100mm x 100mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
3.0m x 1.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
At a maximum height of 3.0 metres, this ProFence® 2X single leaf gate offers the highest level of physical and psychological deterrence for personnel access points, fully certified to the LPS 1175 B3 standard.
The combination of a 3.0m anti-climb height and a B3 attack delay rating is a critical specification for the most sensitive sites of national critical importance. This 1.0m wide gate is designed for staff entrances at high-security prisons, MoD facilities, or nuclear sites, ensuring that even designated pedestrian access points provide an exceptionally high level of resistance to forced entry.
It is also the ultimate choice for securing rooftop access hatches or entry points to sensitive communication rooms in critical buildings. Its formidable height and certified strength prevent it from becoming a weak point in the building's overall security envelope. For a complete, uniform high-security enclosure, this gate is designed to be used with the 3.0m high ProFence® 2X fence system.
Its Red Book listing confirms it has successfully resisted a simulated three-minute attack using Toolkit B, providing the highest possible assurance of its security performance.
Features & Benefits

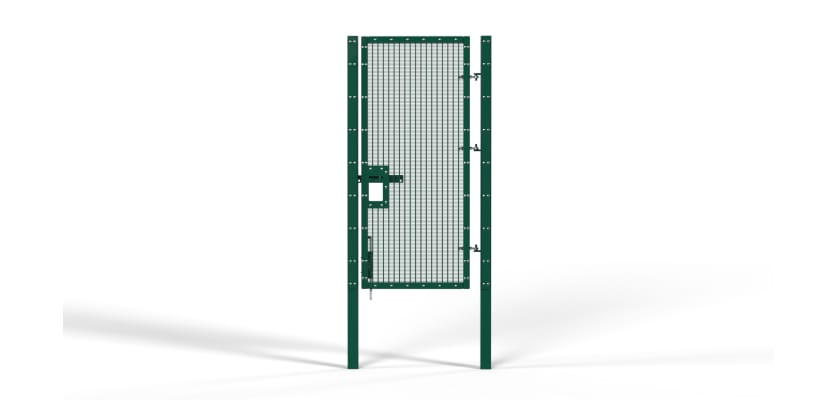

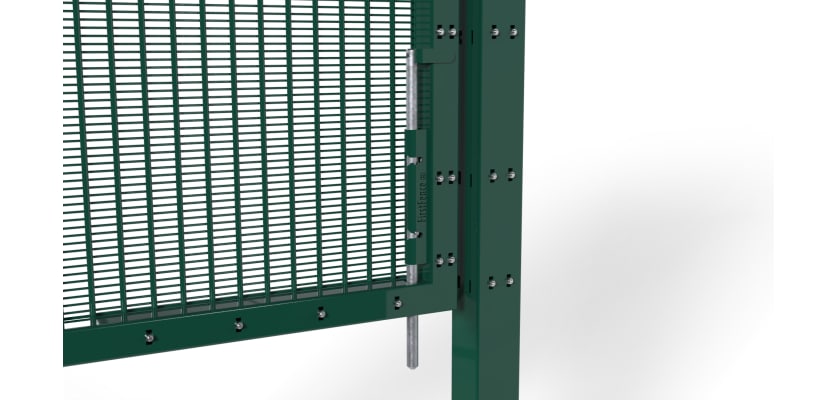

This 3.0m x 1.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit contains one 1.0m gate leaf, one extra-length hinge post, a reinforced catch post, and three SR2-rated gate eyes. The gate's security is ensured by a robust slide latch that provides a positive, secure lock into the catch post.
The gate's robust steel frame is shielded from the elements by both a hot-dip galvanised coating and a tough polyester powder finish for an extended, maintenance-free life. The gate leaf is infilled with MeshPro® 10 security mesh, which makes scaling the 3.0m height virtually impossible for an unaided person. The three heavy-duty gate eyes are attached using permanent, tamper-proof shear nuts.
Installation Made Easy

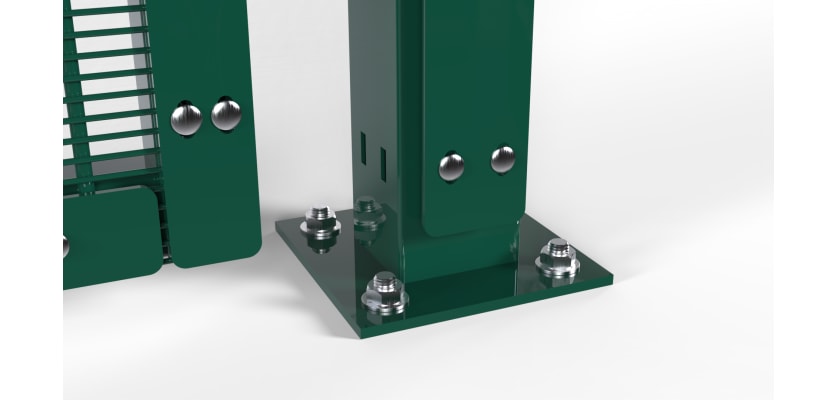

This gate is available in both bolt-down and dig-in formats. The bolt-down version is supplied with ground anchor bolts for fixing to a suitable concrete substrate. For the 3.0m dig-in posts, a substantial foundation is essential; we advise using at least four bags of Post Mix for each post with C20 or C25 grade concrete.
