3.0m x 1.2m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
Product Description
3.0m x 1.2m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
This 3.0m high, 1.2m wide ProFence® 2X single leaf gate is engineered for maximum security applications where a wider personnel entrance is needed without any reduction in physical deterrence.
The LPS 1175 B3 rating provides the verified delay crucial for protecting critical national infrastructure. This gate is an ideal specification for maintenance entrances at secure data centres or telecommunication exchanges, where the 1.2m width can accommodate the movement of tools and replacement parts, while the 3.0m height and B3 rating prevent it from being a vulnerable point.
It also serves as a perfect solution for securing emergency exits on high-security government buildings or research labs. The specification provides an extreme level of security from the outside, while allowing for compliant and safe egress for staff in an emergency. To ensure the entire boundary is impenetrable, this gate works as part of a system with the 3.0m high ProFence® 2X fence kit.
This Red Book listed system provides the highest confidence in your perimeter's security, having been tested to defeat a determined attacker for a full three minutes.
Features & Benefits

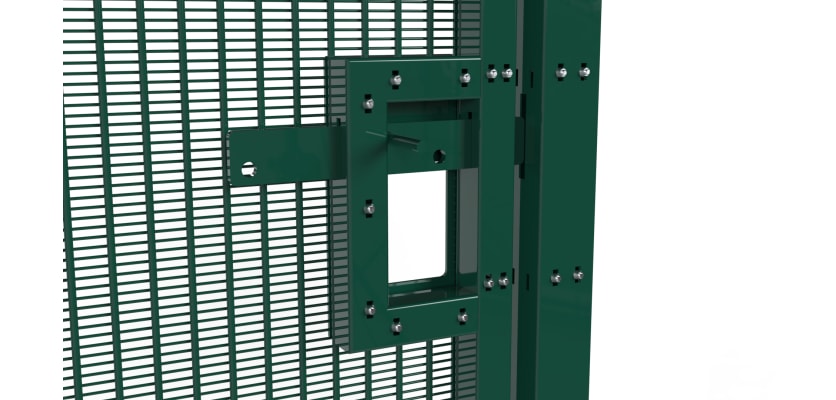

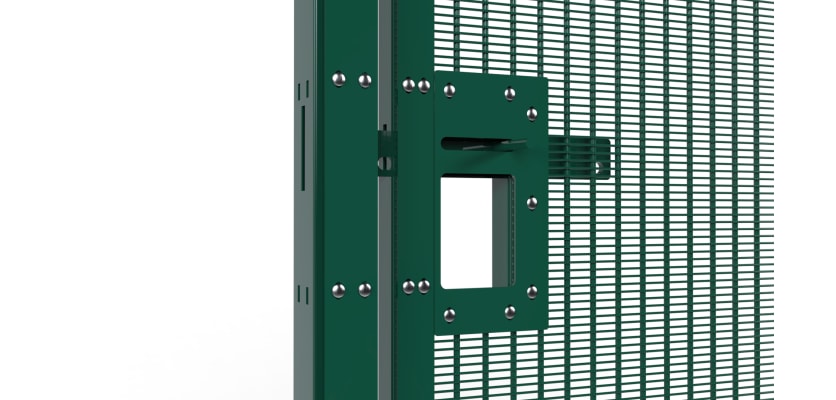

The 3.0m x 1.2m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit includes one 1.2m gate leaf, one hinge post, one catch post, and all essential SR2-rated hardware. The gate is secured by a powerful central sliding latch that slots firmly into the reinforced catch post, creating a very strong and stable closure.

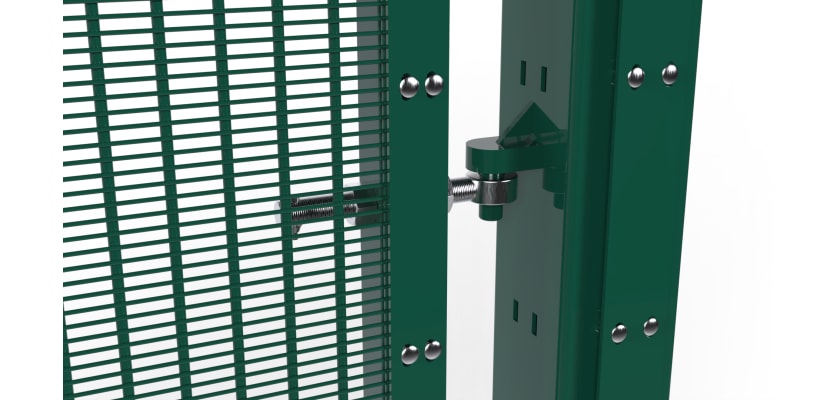

The gate's outstanding durability comes from its galvanised steel construction, which is enhanced with a protective polyester powder-coated finish. The dense MeshPro® 10 infill offers excellent visibility for monitoring while being almost impossible to climb at this height. All three hinges are fastened with tamper-proof shear nuts for maximum security.
Get in Touch
Contact our knowledgeable sales team today on 01283 512 111 or by email at sales@firstfence.co.uk. You can also connect via our live chat service for quick questions and answers.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 1200mm |
| Total Width | 1530mm |
| Box Sections of Posts | [Hinge Post: 100mm x 100mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |

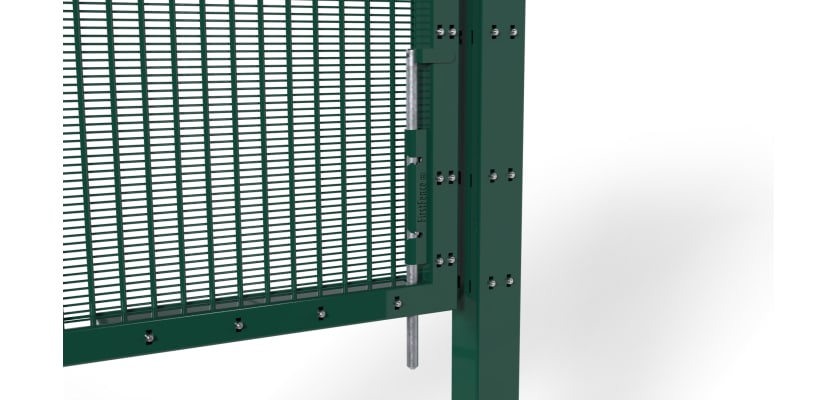

| Locking Drop Bolt | 1 |

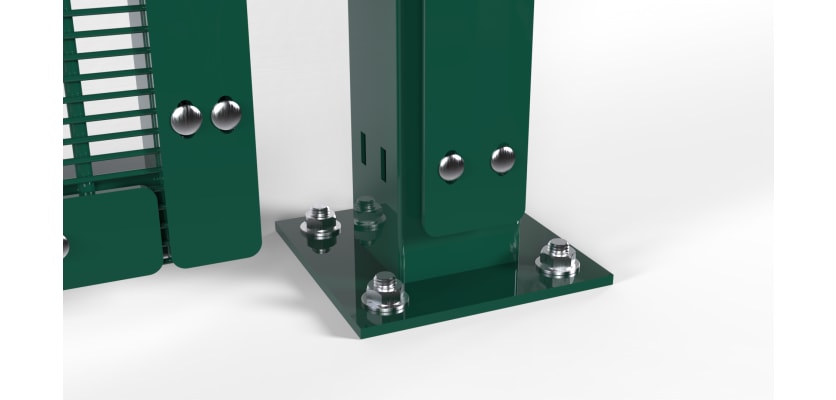

| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 1200mm |
| Total Width | 1530mm |
| Box Sections of Posts | [Hinge Post: 100mm x 100mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
Product Description
3.0m x 1.2m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
This 3.0m high, 1.2m wide ProFence® 2X single leaf gate is engineered for maximum security applications where a wider personnel entrance is needed without any reduction in physical deterrence.
The LPS 1175 B3 rating provides the verified delay crucial for protecting critical national infrastructure. This gate is an ideal specification for maintenance entrances at secure data centres or telecommunication exchanges, where the 1.2m width can accommodate the movement of tools and replacement parts, while the 3.0m height and B3 rating prevent it from being a vulnerable point.
It also serves as a perfect solution for securing emergency exits on high-security government buildings or research labs. The specification provides an extreme level of security from the outside, while allowing for compliant and safe egress for staff in an emergency. To ensure the entire boundary is impenetrable, this gate works as part of a system with the 3.0m high ProFence® 2X fence kit.
This Red Book listed system provides the highest confidence in your perimeter's security, having been tested to defeat a determined attacker for a full three minutes.
Features & Benefits
The 3.0m x 1.2m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit includes one 1.2m gate leaf, one hinge post, one catch post, and all essential SR2-rated hardware. The gate is secured by a powerful central sliding latch that slots firmly into the reinforced catch post, creating a very strong and stable closure.
The gate's outstanding durability comes from its galvanised steel construction, which is enhanced with a protective polyester powder-coated finish. The dense MeshPro® 10 infill offers excellent visibility for monitoring while being almost impossible to climb at this height. All three hinges are fastened with tamper-proof shear nuts for maximum security.
