2.0m x 5.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
Product Description

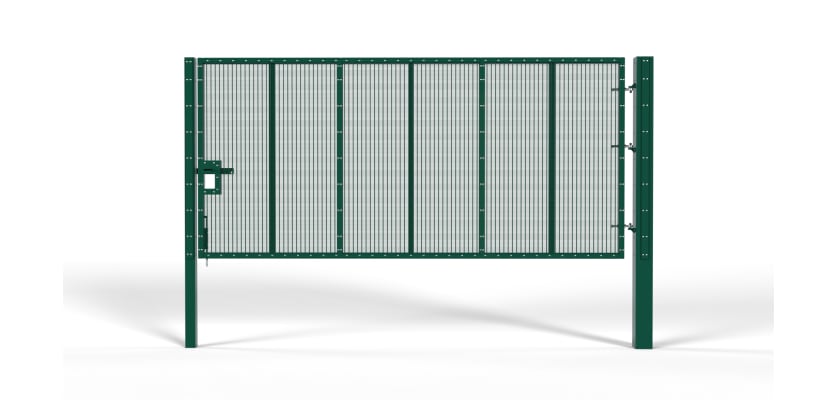

2.0m x 5.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
This ProFence® 2X gate provides a very wide 5.0m opening with a single leaf, delivering maximum access with the minimum footprint, all while maintaining a certified LPS 1175 B3 security rating.
The proven three-minute delay against forced entry is a cornerstone of modern physical security, especially for high-value logistics and distribution hubs. This gate's substantial 5.0m width is perfect for secondary or less-frequently used HGV access points, ensuring that the entire industrial estate perimeter maintains its security rating without the need for a double gate system in every location.
It is also an ideal specification for securing the perimeters of solar farms or wind turbine sites. The wide opening allows for the passage of long vehicles and maintenance equipment, while the B3 rating protects millions of pounds worth of renewable energy assets from theft and vandalism. A seamless boundary is achieved by pairing the gate with our 2.0m high ProFence® 2X fence system.
As a Red Book listed product, this gate provides a trusted and verified solution, having demonstrated its ability to defeat a professional, three-minute attack using the advanced tools of Toolkit B.
Features & Benefits

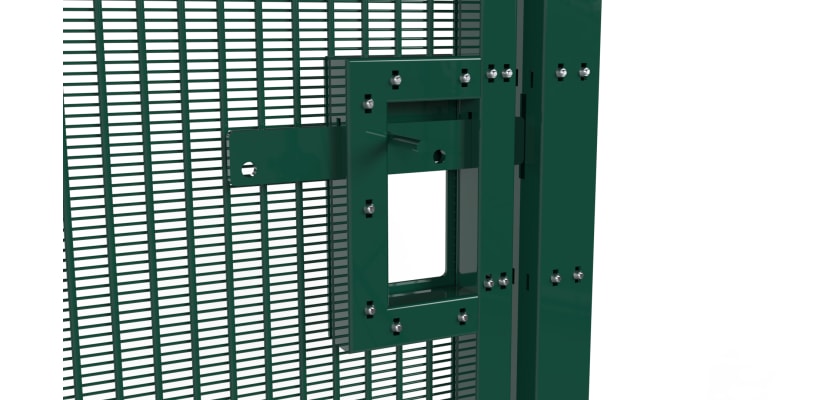

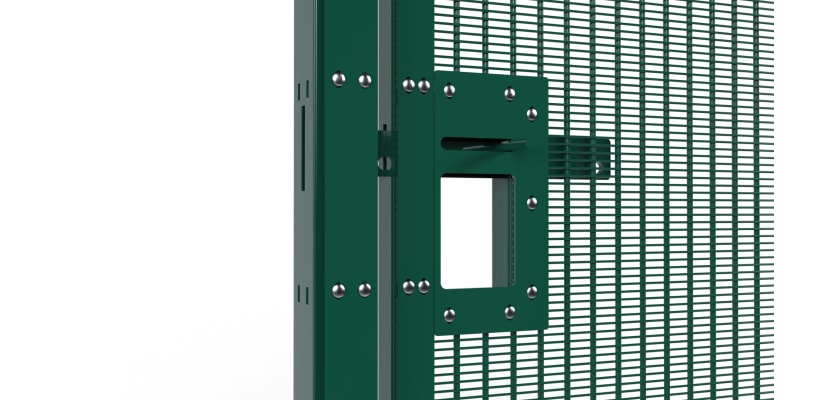

This comprehensive 2.0m x 5.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit contains one 5.0m leaf, a specially designed heavy-duty hinge post, a reinforced catch post, and the required SR2-rated fixtures. The gate's locking system is designed for maximum resistance, featuring a powerful slide latch that secures the long leaf firmly against the catch post.

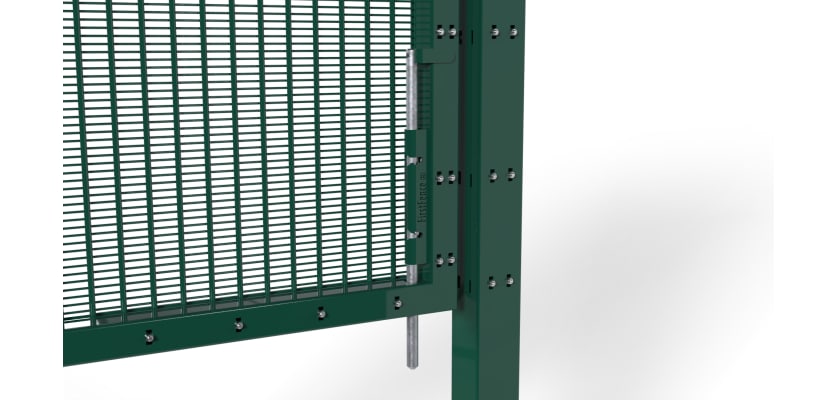

The gate's structure is manufactured from high-quality steel that has been hot-dip galvanised and polyester powder coated for superior, long-lasting protection against all forms of corrosion. This ensures a long operational life and an excellent return on investment. The rigid MeshPro® 10 infill is a key security feature, offering an anti-climb and anti-cut barrier that doesn't obstruct visibility for CCTV systems. To prevent tampering, all three hinges are permanently secured with shear nuts.
Get in touch
For specialist advice on your security fencing project, speak to our team today by calling 01283 512 111 or using the website's live chat feature.
Specifications & Downloads
| Height | 2000mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5470mm |
| Box Sections of Posts | [Hinge Post: 200mm x 200mm] [Catch Post: 120mm x 120mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
