2.0m x 1.2m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 2000mm [Installed] |
| Access Width | 1200mm |
| Total Width | 1530mm |
| Box Sections of Posts | [Hinge Post: 100mm x 100mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |

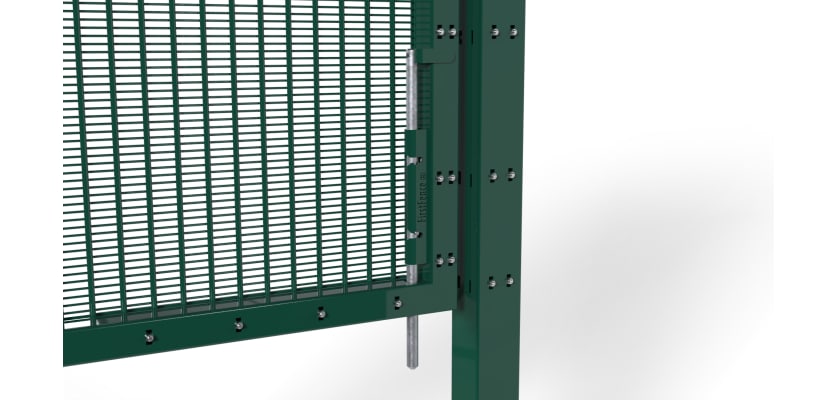

| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |

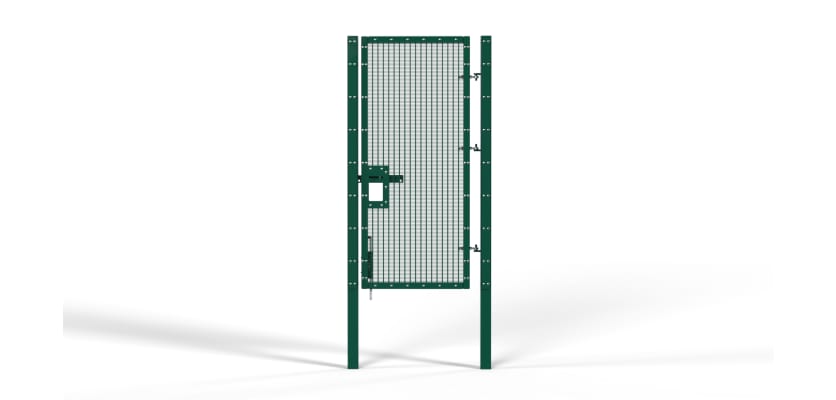

2.0m x 1.2m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
Wider Access with Certified Security
The ProFence® 2X SR2 (B3) single leaf gate is designed to provide a secure yet practical entry point within a certified high-security perimeter. With a clear width of 1.2m, it delivers greater accessibility for personnel and small equipment, while maintaining the proven resilience of the ProFence® 2X system.
Certified Performance for High-Risk Sites
Independently tested and approved to LPS 1175 Issue 8, Security Rating B3, this gate is verified to withstand a minimum three-minute delay against forced entry using Toolkit B implements. This makes it particularly suited for data centres, government facilities, and high-value industrial environments, where verified delay is essential for response effectiveness.
The wider opening also makes it an excellent option for fire escape routes or emergency exits, providing compliant egress capability while continuing to protect against intrusion attempts. When installed alongside the 2.0m ProFence® 2X fence system, it completes a continuous, certified perimeter barrier.
Features & Benefits
- Complete Gate Kit: includes one single gate leaf, one hinge post, one catch post, and three SR2-rated heavy-duty gate eyes.

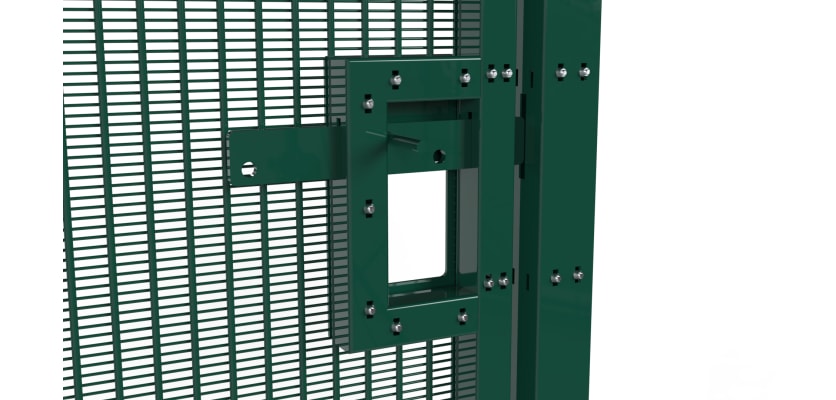

- Secure Closure: heavy-duty sliding latch bolt engages securely with the catch post and can be padlocked for additional protection.
- Durable Construction: manufactured from all-steel components, hot-dip galvanised to ISO 1461 and finished with a polyester powder coat for maximum weather resistance.
- MeshPro® 10 Infill: dense, anti-climb and anti-cut mesh that still permits clear visibility for CCTV and on-site monitoring.

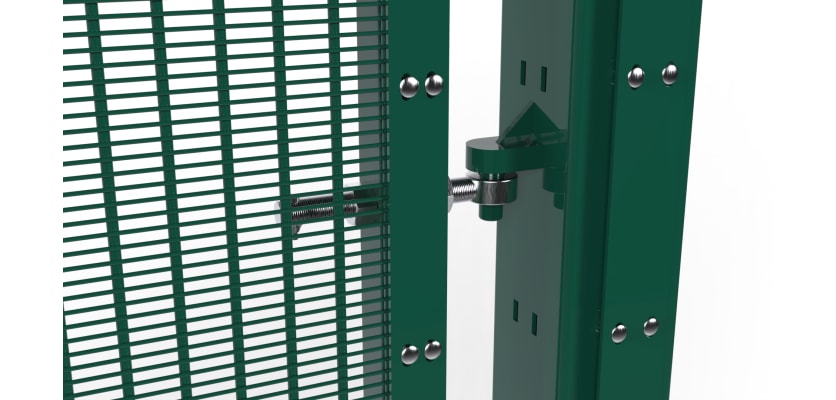

- Tamper-Proof Hinges: fitted with shear nuts to ensure a permanent, secure installation.
Installation Options
Available in bolt-down and dig-in formats to suit different ground conditions:
- Bolt-down version comes complete with ground anchor bolts for surface fixing.
- Dig-in version requires a stable concrete base; we recommend 3 bags of Post Mix per post using C20 or C25 grade concrete for a reliable foundation.
Expert Advice
Need guidance on specification, layout, or installation? Our experienced team is here to help. Call us on 01283 512 111 or reach us through our website live chat for tailored advice on high-security perimeter solutions.
