2.4m x 5.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 2400mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5470mm |
| Box Sections of Posts | [Hinge Post: 200mm x 200mm] [Catch Post: 120mm x 120mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
2.4m x 5.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
Providing an impressive 5.0m clear opening with a single gate leaf, this 2.4m high ProFence® 2X gate offers maximum access for vehicles at sites requiring LPS 1175 B3 certified security.
The B3 certification is a key requirement for many sites of national critical importance, and this gate allows that standard to be maintained even at very wide access points. It is ideally suited for secondary HGV entrances at ports or logistics hubs, or for access roads at large utility sites like reservoirs or power stations, providing a formidable barrier against intrusion.
It's also an indispensable asset for securing the perimeters of large-scale construction projects for sensitive government or corporate buildings. The 5.0m width allows for easy passage of construction traffic and wide loads, while the B3 rating protects the site from theft of high-value plant and materials throughout the project lifecycle. For end-to-end site protection, install this gate with the 2.4m high ProFence® 2X fence system.
As a Red Book listed product, it provides a trusted and verified solution for protecting your most valuable assets and infrastructure against serious threats.
Features & Benefits

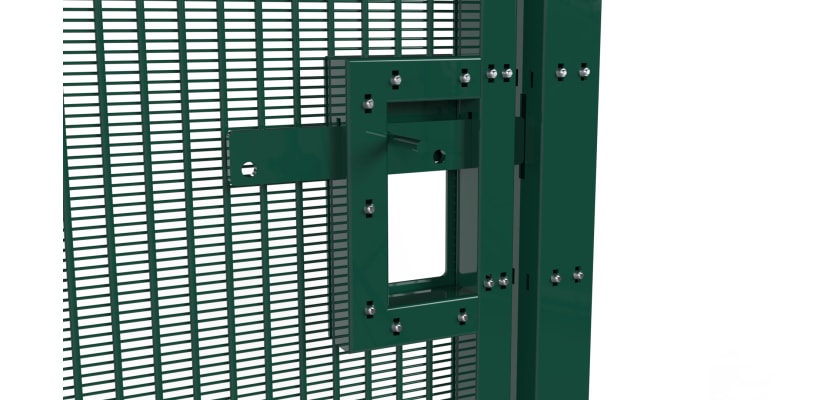

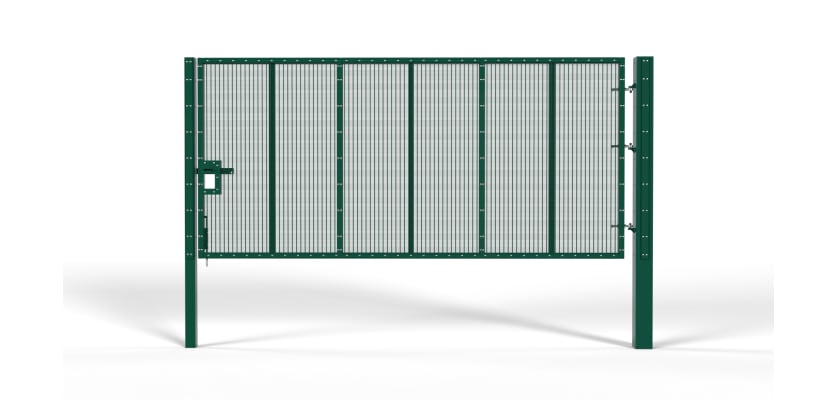

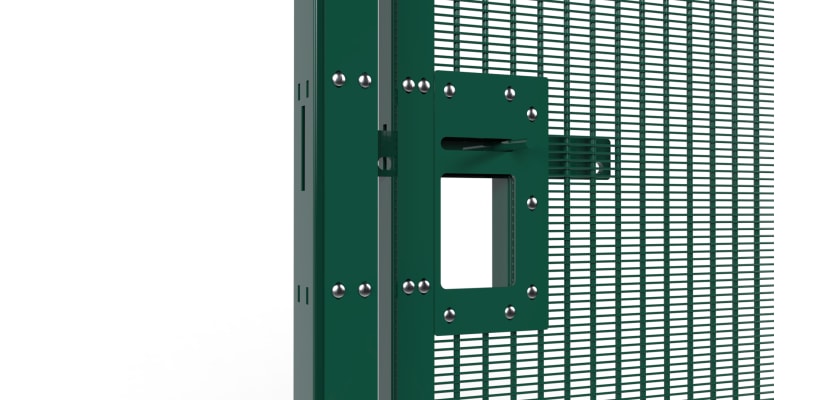

This comprehensive 2.4m x 5.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit contains one 5.0m leaf, an expertly engineered heavy-duty hinge post, a robust catch post, and the required SR2-rated fixtures. The gate's locking system features a powerful slide latch that secures the long leaf firmly against the catch post, ensuring rigidity and security.

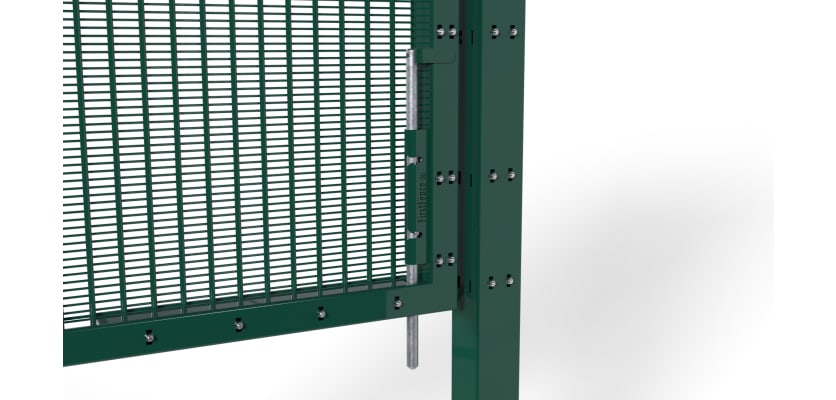

The gate's structure is made from high-quality steel that has been hot-dip galvanised and polyester powder coated for superior protection against rust and environmental damage. The rigid MeshPro® 10 infill, combined with the 2.4m height, makes the gate extremely resistant to climbing and cutting attempts. To prevent tampering, all three hinges are permanently secured with shear nuts.
Installation Made Easy

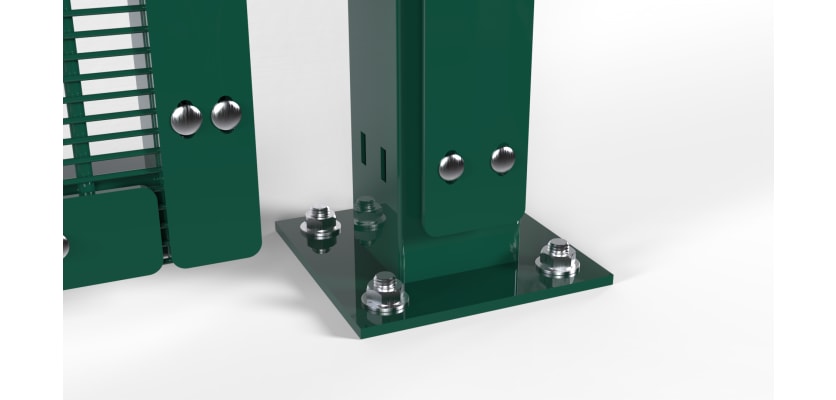

Installation is supported with options for either dig-in posts for soft ground or bolt-down posts for concrete surfaces. All ground anchor bolts are supplied with the bolt-down kits. To support the considerable leverage of this wide single leaf, a strong foundation using three to four bags of Post Mix per post with C20 or C25 concrete is essential.
