2.4m x 4.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 2400mm [Installed] |
| Access Width | 4000mm |
| Total Width | 4470mm |
| Box Sections of Posts | [Hinge Post: 200mm x 200mm] [Catch Post: 120mm x 120mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |

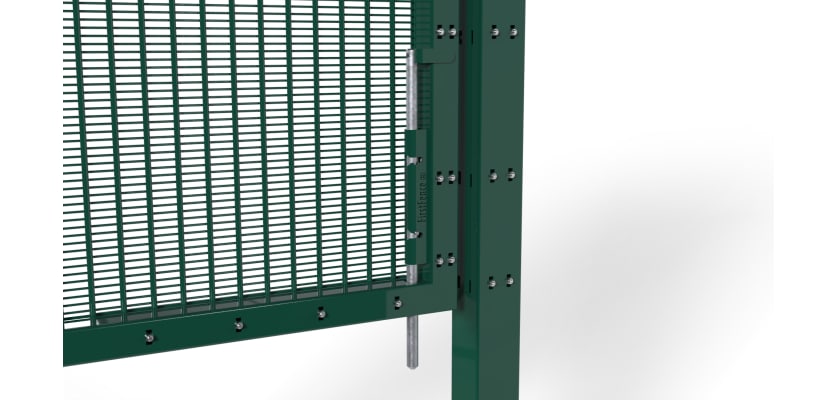

| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
2.4m x 4.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
This formidable 2.4m high ProFence® 2X single leaf gate provides a wide 4.0m opening, delivering a certified LPS 1175 B3 solution for vehicular access points where security is paramount.
The proven attack delay offered by the LPS 1175 B3 rating is a critical asset in protecting facilities where operational continuity is vital, such as data centres or broadcast facilities. This 4.0m gate is perfect for main vehicle entrances, allowing cars, vans, and small lorries to pass while ensuring the access point is a hardened target against a determined physical attack.
It is also an excellent specification for securing the entrances to secure compounds for emergency services, such as ambulance stations or fire depots. The wide opening allows for rapid deployment of vehicles, while the B3 rating and 2.4m height ensure the site is protected when not in use. A fully compliant perimeter is achieved by installing this gate with the 2.4m high ProFence® 2X fence system.
This system's inclusion in the Red Book guarantees its elite security credentials, having been independently tested against a sustained, professional assault.
Features & Benefits

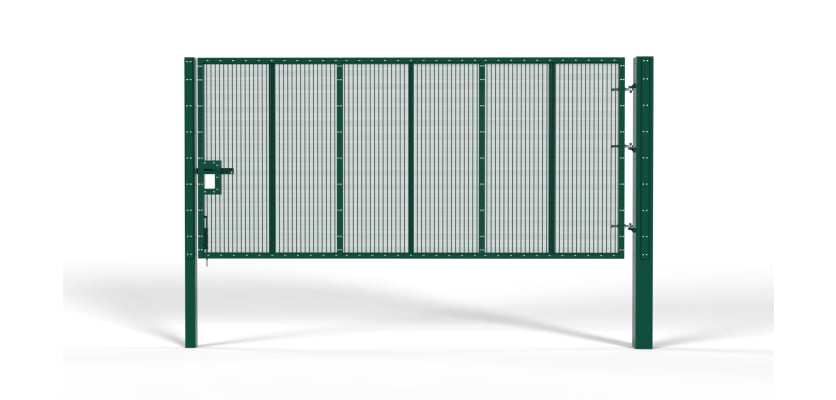

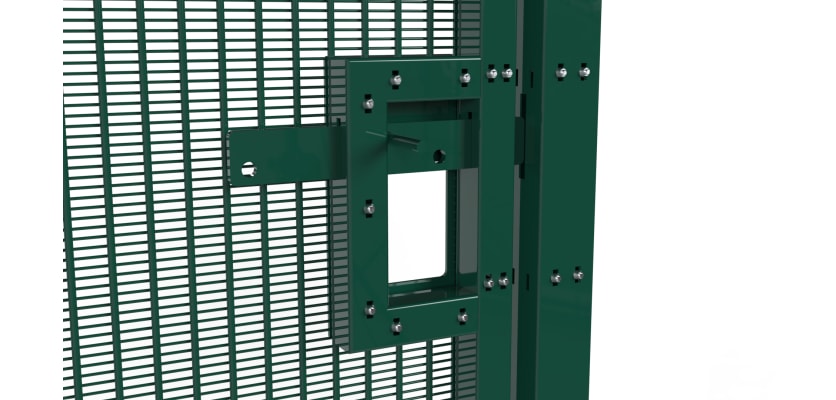

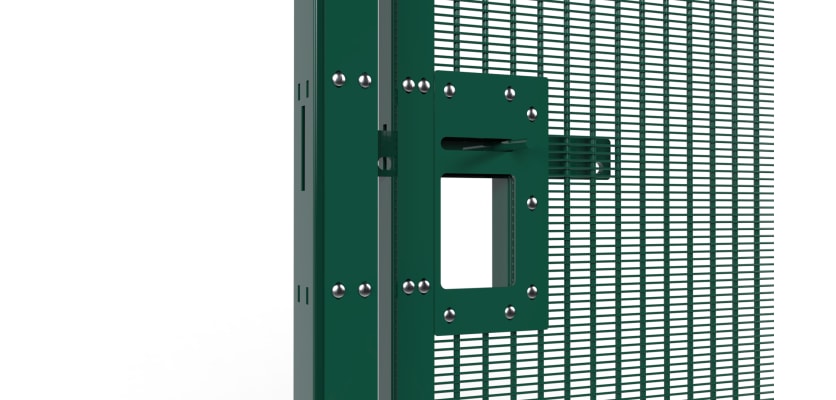

The 2.4m x 4.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit comprises one 4.0m wide gate leaf, a specially engineered hinge post to manage the span, a reinforced catch post, and three SR2-rated gate eyes. A heavy-duty slide latch ensures the gate locks securely, preventing the leaf from being forced or lifted.
Its robust steel frame is protected by a hot-dip galvanised coating and a tough polyester powder finish for maximum defence against the elements and a long operational life. The gate leaf is filled with MeshPro® 10 security mesh, which provides an excellent anti-climb and anti-cut barrier without compromising surveillance visibility. The three gate eyes are attached using shear nuts for a permanent, non-removable installation.
Installation Made Easy

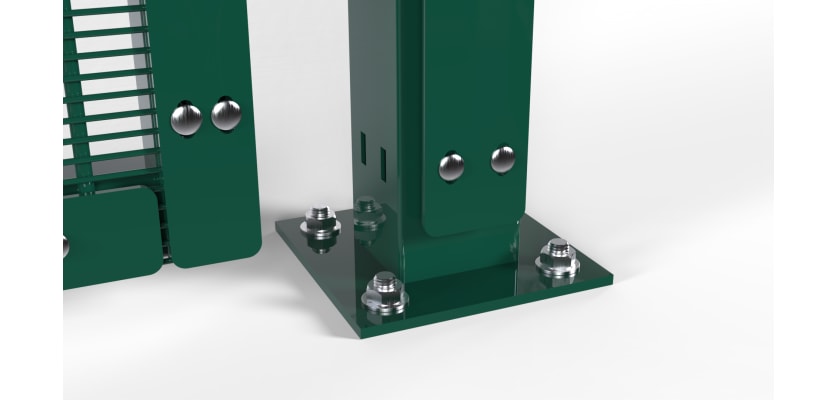

A choice of dig-in or bolt-down posts allows for secure installation on various ground types. All necessary ground anchor bolts are included with the bolt-down option. For dig-in applications at this size, we recommend a deep foundation of C20 or C25 concrete, using three to four bags of our suggested Post Mix per post.
