2.4m x 3.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
Product Description

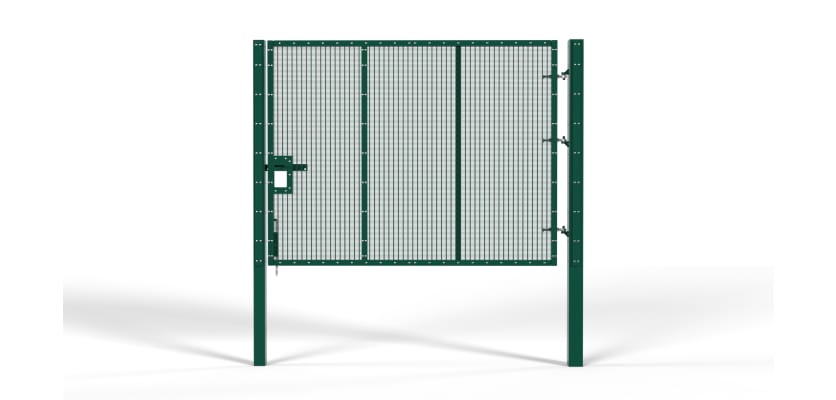

2.4m x 3.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
Offering an impressive combination of height and width, this 2.4m high, 3.0m wide ProFence® 2X single leaf gate is certified to the LPS 1175 B3 standard for high-risk applications.
The LPS 1175 B3 certification provides the verified delay against intrusion that is fundamental to the security of sites of national critical importance. This gate's dimensions make it ideal for service entrances at power generation facilities or communication hubs, allowing access for vans and light commercial vehicles while providing a formidable, certified barrier against potential acts of sabotage.
This gate is also highly suited for securing the perimeters of high-value manufacturing and engineering sites. The 3.0m width allows for the movement of materials and finished goods, while the 2.4m height and B3 rating protect valuable stock and sensitive intellectual property from corporate espionage. To ensure the entire boundary is impenetrable, this gate works as part of a system with the 2.4m high ProFence® 2X fence kit.
This Red Book listed gate system provides the highest confidence in your perimeter's security, having been rigorously tested to defeat a determined, tool-equipped attacker for a full three minutes.
Features & Benefits

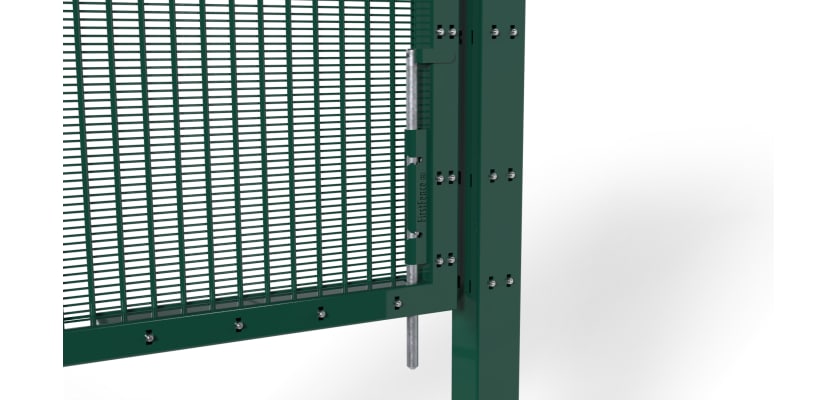

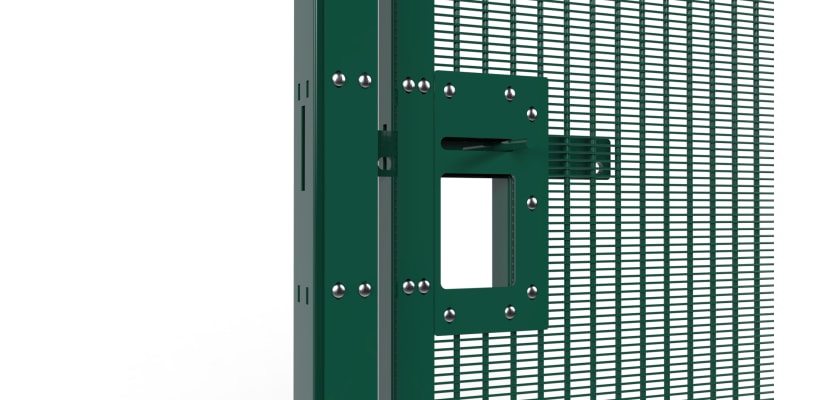

This 2.4m x 3.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit includes one 3.0m wide gate leaf, a heavy-duty hinge post, a robust catch post, and three SR2-rated gate eyes. Security is assured by a powerful central sliding latch that provides a secure locking point and holds the gate leaf rigid.

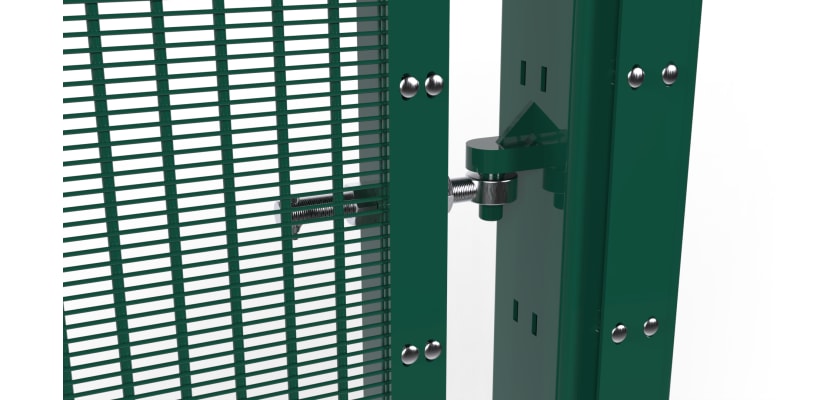

The gate's structure is manufactured from high-quality steel that has been hot-dip galvanised and polyester powder coated for superior, long-lasting protection against rust and environmental damage. The rigid MeshPro® 10 infill combined with the 2.4m height makes this gate extremely difficult to scale, while also resisting cutting attacks. All three hinge points are fitted with shear nuts, a one-way security fixing that prevents disassembly.
Contact Us
Our dedicated sales team is ready to answer your questions. Call us on 01283 512 111 or email sales@firstfence.co.uk for more information. You can also connect via our live chat service for quick questions and answers.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3420mm |
| Box Sections of Posts | [Hinge Post: 150mm x 150mm] [Catch Post: 120mm x 120mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
