2.4m x 1.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
Product Description
2.4m x 1.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit

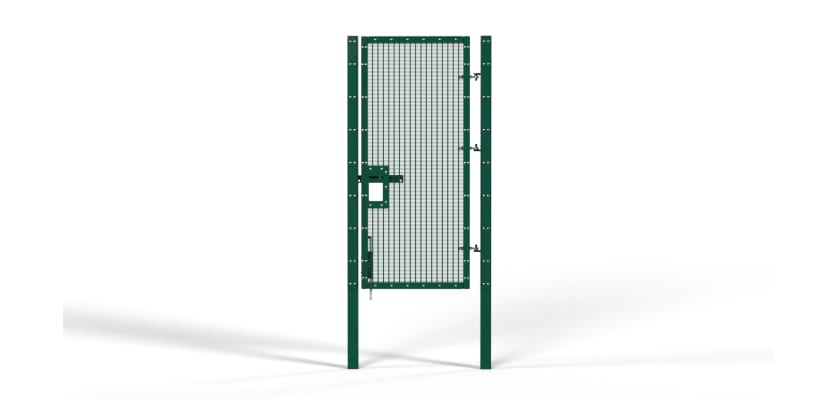

The 2.4m high ProFence® 2X single leaf gate provides an imposing, certified secure entrance for personnel. Its significant height acts as a powerful deterrent to any casual or determined attempt to scale the perimeter.
This gate's LPS 1175 B3 rating offers a verified level of protection that is essential for sites of national critical importance. This 1.0m wide configuration is the definitive choice for staff access points at electricity substations or gas facilities, where the increased height and certified strength combine to prevent unauthorised entry that could lead to catastrophic service disruption.
It is also the perfect specification for emergency exit gates at data centres. The B3 rating ensures the perimeter remains secure during normal operations, while the 1.0m width provides a clear and compliant escape route in an emergency, satisfying both security and health and safety requirements. Ensure this level of protection extends across the entire boundary by specifying this gate with the adjacent 2.4m high ProFence® 2X fence kit.
Its Red Book listing confirms that it has been rigorously tested against a simulated three-minute attack by a skilled operative using Toolkit B, providing the highest level of assurance.
Features and Benefits

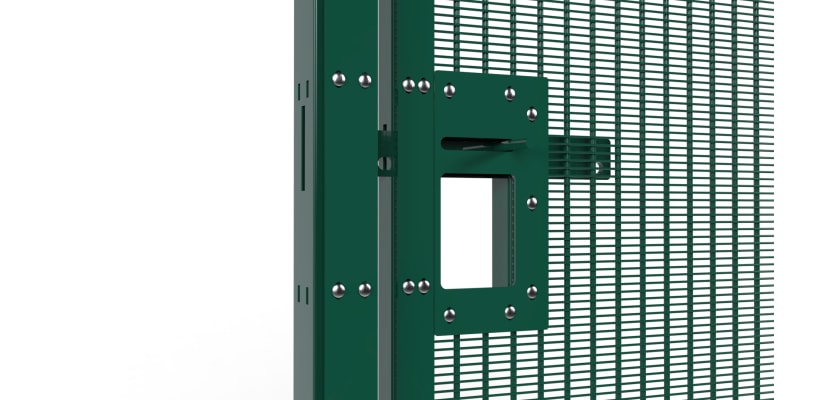

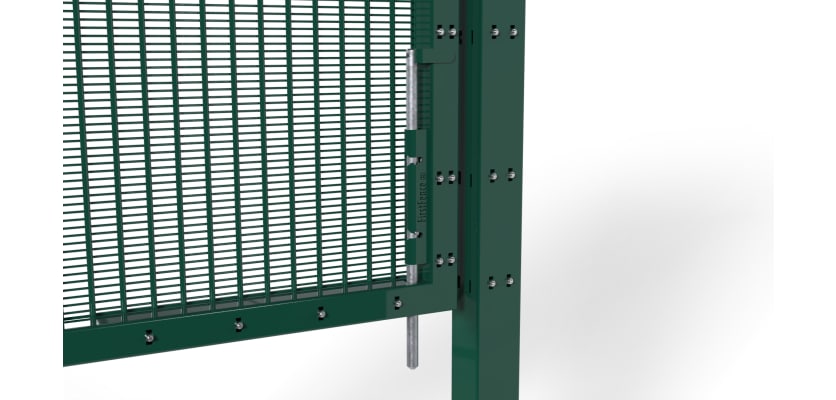

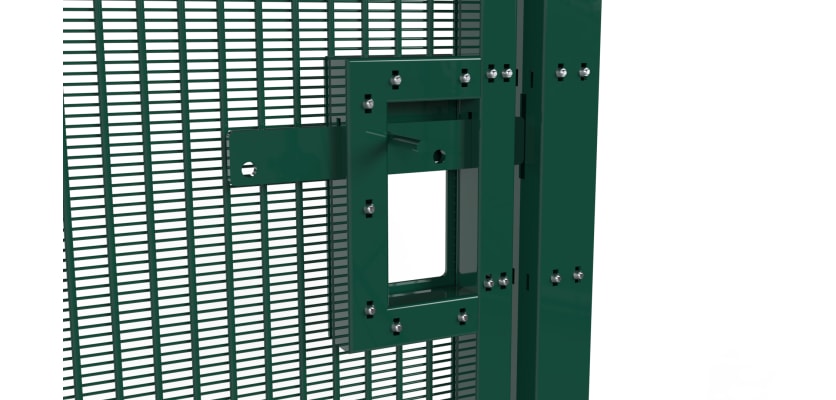

This 2.4m x 1.0m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit contains one 1.0m gate leaf, one appropriately sized hinge post, a reinforced catch post, and three SR2-rated gate eyes. The gate's security is ensured by a robust slide latch that provides a positive, secure lock into the catch post.
The gate's frame and posts are fabricated from high-grade steel, which is hot-dip galvanised for intrinsic corrosion resistance and then polyester powder coated for a tough, durable outer layer. The gate leaf is infilled with MeshPro® 10 security mesh, which at this height presents a formidable obstacle to climbing. The three heavy-duty gate eyes are attached using shear nuts, a permanent fixing that cannot be undone.
Installation made easy

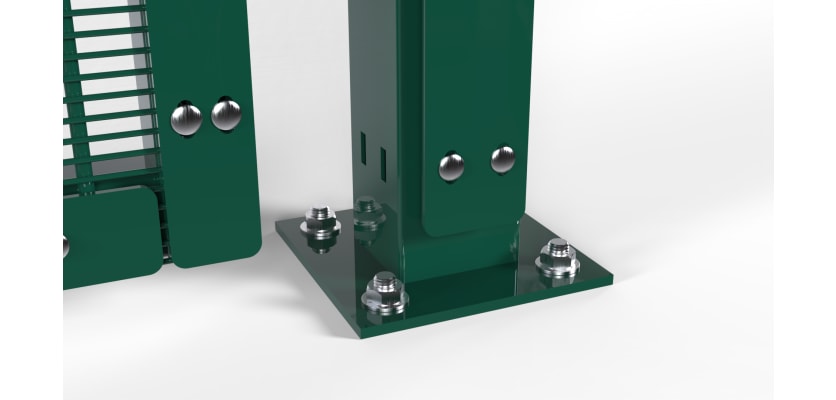

This gate is available in both bolt-down and dig-in formats to suit your site's ground conditions. The bolt-down version is supplied with the necessary ground anchor bolts. For the taller 2.4m dig-in posts, a secure foundation is critical; we advise using at least three to four bags of Post Mix for each post with C20 or C25 grade concrete for maximum stability.
Get in touch
Our expert team is available to discuss your high-security needs. Please call 01283 512111 or use the online chat to get in touch.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1330mm |
| Box Sections of Posts | [Hinge Post: 100mm x 100mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1330mm |
| Box Sections of Posts | [Hinge Post: 100mm x 100mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |
| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
