2.4m x 1.2m Wide ProFence® 2X SR2 (B3) LPS 1175 Single Gate Leaf Kit
| Height | 2400mm [Installed] |
| Access Width | 1200mm |
| Total Width | 1530mm |
| Box Sections of Posts | [Hinge Post: 100mm x 100mm] [Catch Post: 100mm x 100mm] |
| Gate Hanging Side | Right Hand Hung [From Outside Looking In] |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 1 |
| Hinge Post & Clamp Bar Kit | 1 |
| Catch Post & Clamp Bar Kit | 1 |
| SR2 Hinges | 3 |

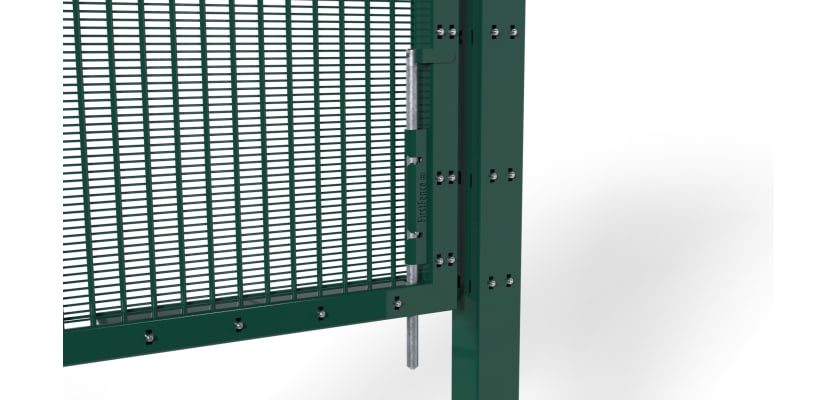

| Locking Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge & Catch Post] | 2 |
2.4m x 1.2m Wide ProFence® 2X LPS 1175 SR2 (B3) Single Gate Leaf Kit
Our 2.4m high ProFence® 2X single leaf gate combines increased height with a wider opening, offering a versatile LPS 1175 SR2 (B3) certified solution for secure personnel and equipment access.
The LPS 1175 B3 certification provides the verified delay time needed to protect critical national infrastructure from sophisticated threats. This gate's 1.2m width makes it ideal for maintenance access points at railway sidings or water treatment works, allowing for the easy passage of staff with tools and small equipment, while the 2.4m height and B3 rating deter intrusion and protect essential services.
It also serves as an excellent security gate for controlled access to sensitive areas in airports, such as communications rooms or service tunnels. The certified strength meets the stringent security demands of the aviation sector, protecting key operational assets from tampering. A seamless, high-security boundary is created by pairing this gate with the 2.4m high ProFence® 2X fence.
Having withstood rigorous testing against the advanced tools in Toolkit B for three minutes, its place in the Red Book makes it a trusted choice for protecting high-risk facilities.
Features & Benefits

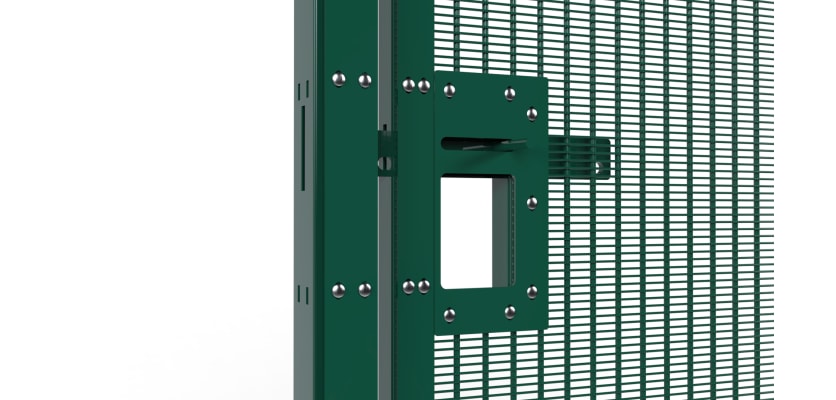

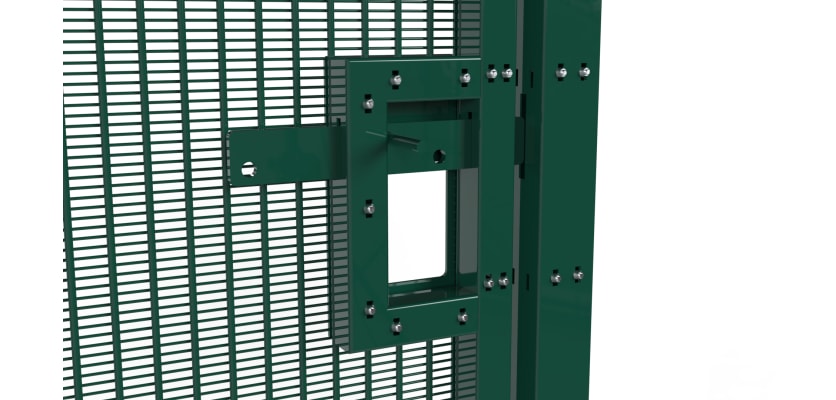

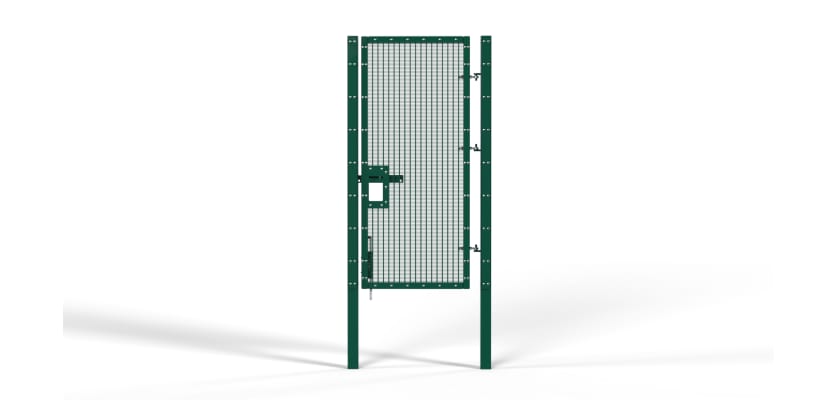

The 2.4m x 1.2m Wide ProFence® 2X SR2 (B3) Single Gate Leaf Kit provides a 1.2m opening and includes one gate leaf, one hinge post, one catch post, and all necessary SR2-rated hardware. Security is assured by a powerful central sliding latch that slots firmly into the catch post when closed.

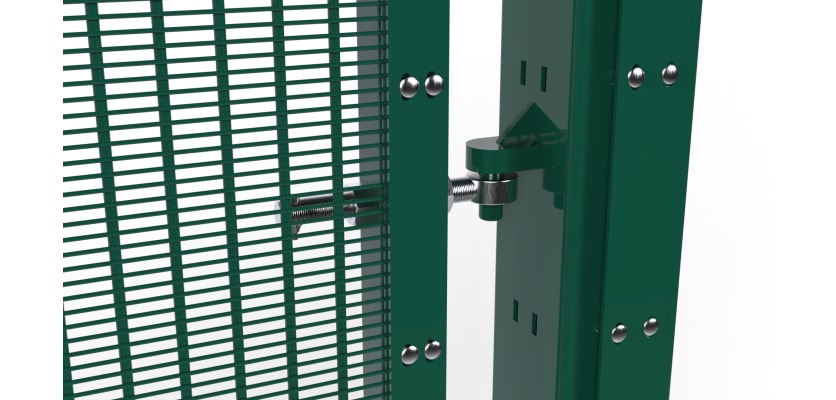

The gate's exceptional longevity comes from its galvanised steel construction, which is further enhanced with a protective polyester powder-coated finish for a long, maintenance-free life. The tight-knit MeshPro® 10infill offers excellent resistance to cutting tools and provides no handholds for climbing. For ultimate security, the three hinges are fastened with shear nuts, a permanent, tamper-proof fixing.
Installation Made Easy
A choice of dig-in or bolt-down posts allows for a secure installation on various ground types. All necessary ground anchor bolts are included with the bolt-down option. For dig-in applications at this height, we recommend a deep foundation of C20 or C25 concrete, using three to four bags of our suggested Post Mix per post for reliable, long-term stability.
