Height | 3000mm [Installed] |
Access Width | 8000mm |
Total Width | 8670mm |
Box Sections of Posts | [Hinge Posts: 200mm x 200mm] |
Primary Gate Leaf | Right Hand Hung |
Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
Material | Hot Dip Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
Name | Quantity |
---|---|
Slider Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Gate Leaf Mesh & Clamp Bar Kit | 2 |
Hinge Post & Clamp Bar Kit | 2 |
SR2 Hinges | 6 |
Locking Drop Bolt | 2 |
Ground Anchors [Bolt Down Only] | 8 |
Ribbed Inserts [To Suit Hinge Posts] | 2 |

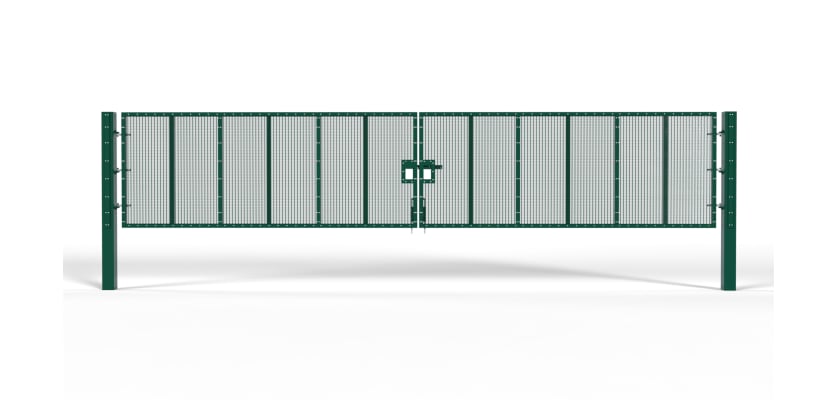

The 3.0m high ProFence® 2X SR2 (B3) Double Gate provides an exceptionally wide and supremely secure entrance for the largest vehicles.
Achieving the LPS 1175 B3 rating on a gate of this scale is a significant engineering accomplishment, vital for securing unique locations like secure vehicle compounds or the entrance to data centre energy facilities. The 8.0m width allows for abnormal loads and large tankers, while the 3.0m height and certified construction ensure that the access point is a hardened element of the site's overall defence strategy.
It is also an essential specification for securing the entrances to airfields and aviation-related manufacturing sites. The 8.0m width can accommodate light aircraft and large vehicle movements on service roads, while the maximum height and B3 rating contribute to the site's overall security and regulatory compliance. The ultimate airfield perimeter is achieved by combining this gate with the 3.0m high ProFence® 2X fence.
Its security credentials are confirmed by its LPS 1175 SR2 (B3) certification and Red Book listing.

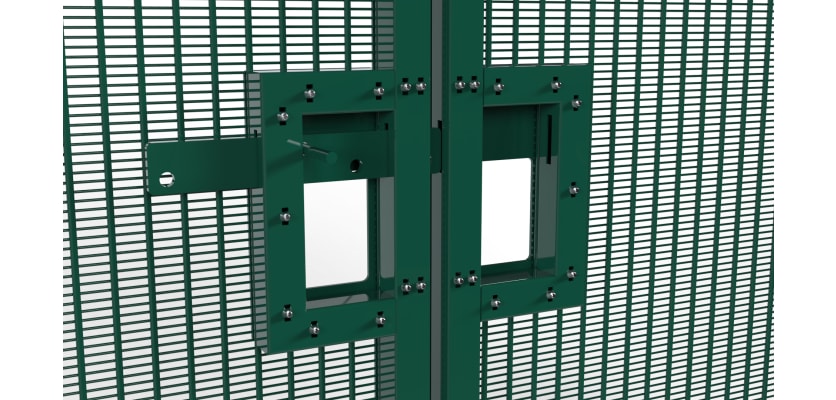

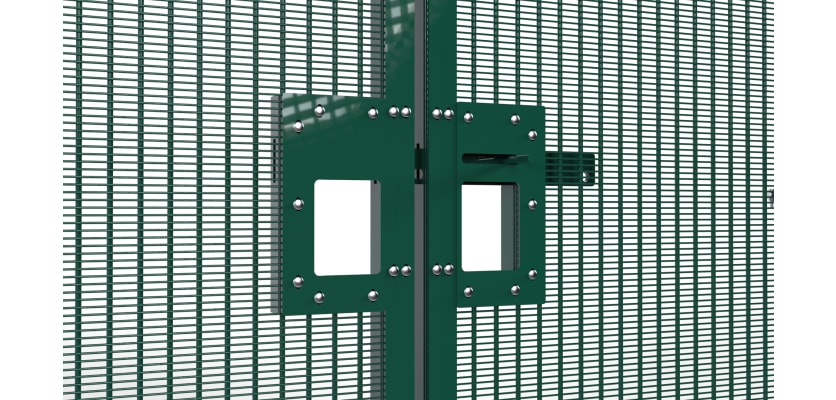

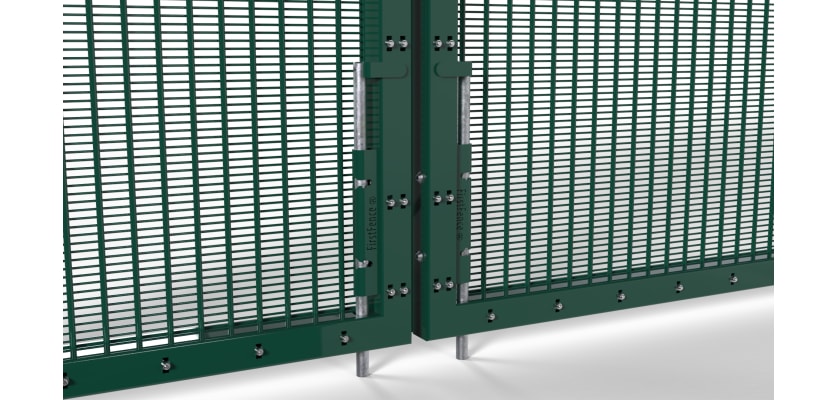

The 3.0m x 8.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit is a complete solution, including two 4.0m gate leaves, two heavy-duty hinge posts, and six SR2-rated gate eyes. The gate features a robust locking system with a central sliding latch and twin ground drop bolts, ensuring the wide, tall leaves remain secure against being forced open.

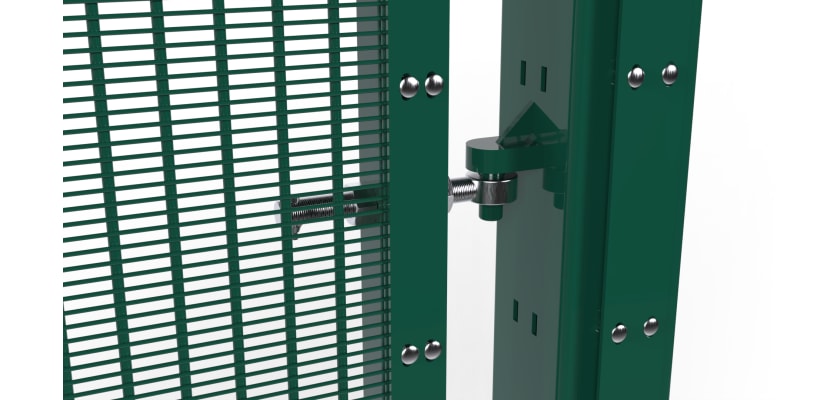

Constructed from steel, the gate is fortified with a dual-layer finish of hot-dip galvanising and polyester powder coating. The gate's MeshPro® 10 infill panels, at a height of 3.0m, are designed to completely prevent intrusion by climbing or cutting. The hinges are secured with tamper-proof shear nuts for a permanent fit.
To ensure a secure fit, the gate is available with either dig-in or bolt-down posts. Bolt-down kits come complete with the required ground anchor bolts. For dig-in posts of this size, creating a substantial foundation using at least five bags of Post Mix per post with C20 or C25 concrete is critical for long-term stability.
