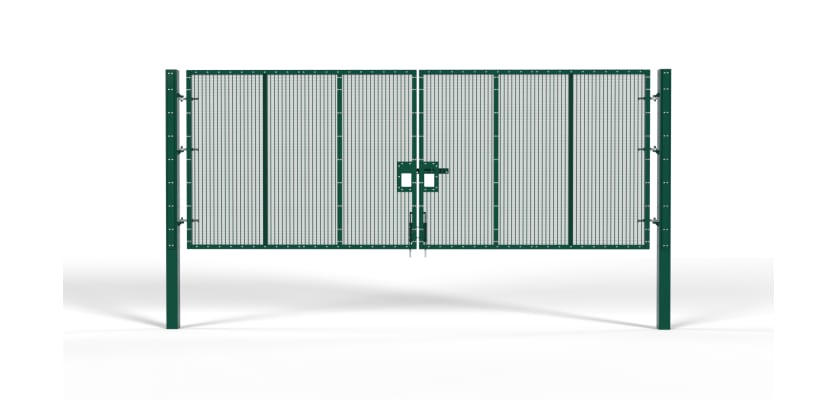

3.0m x 7.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 3000mm [Installed] |
| Access Width | 7000mm |
| Total Width | 7570mm |
| Box Sections of Posts | [Hinge Posts: 150mm x 150mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
3.0m x 7.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
When securing a very wide vehicular access point with a maximum height, intimidating barrier, this 3.0m high ProFence® 2X SR2 (B3) gate is the definitive choice.
The LPS 1175 B3 rating is a critical component in fulfilling the stringent security obligations of sites of national critical importance. This 7.0m wide, 3.0m high gate is designed for sites like major distribution hubs for fuel or food, providing an imposing and certified barrier that allows for efficient logistics while protecting essential national supply chains from disruption.
This gate's dimensions and rating also make it perfect for securing the primary access points to port facilities and container terminals. The 7.0m width accommodates HGVs and straddle carriers, while the 3.0m height and B3 rating help prevent theft and unauthorised access to secure zones. For a continuous, certified port perimeter, this gate should be installed with the 3.0m high ProFence® 2X fence system.
This system carries the prestigious LPS 1175 certification and, as a Red Book listed product, it provides a trusted and verified solution for ultimate protection.
Features & Benefits

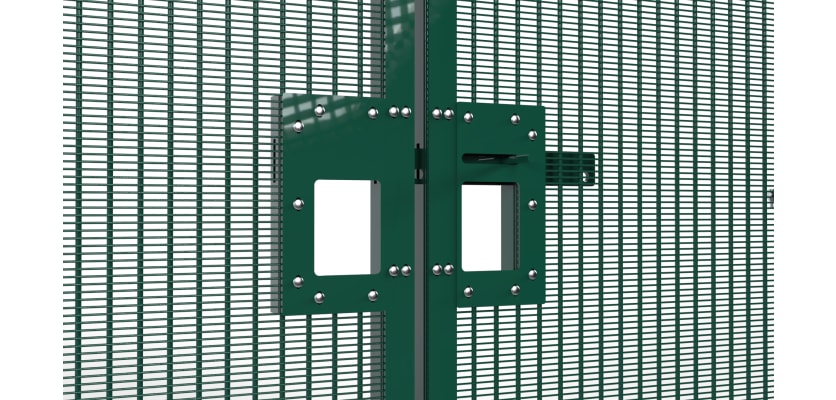

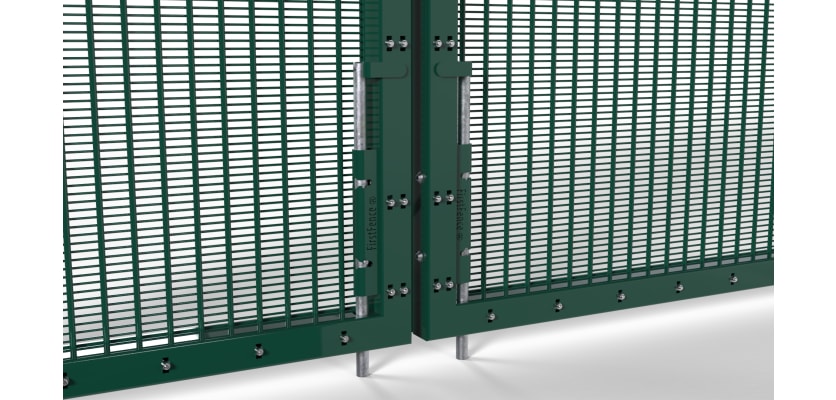

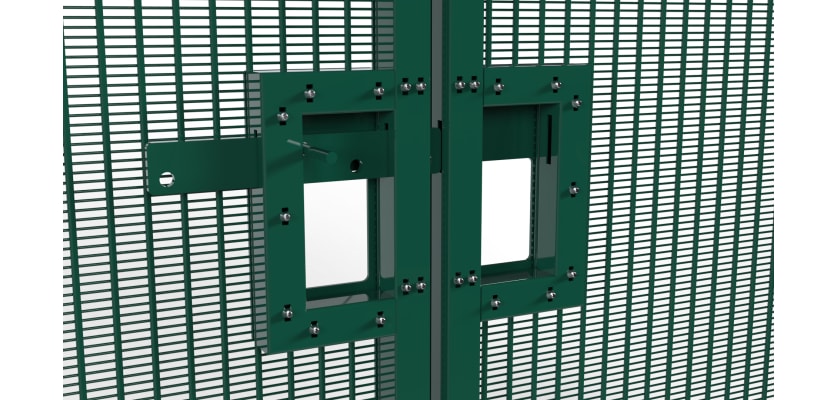

This comprehensive 3.0m x 7.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit contains two 3.5m leaves, two hinge posts, and the required SR2-rated fixtures. The gate's locking system is designed for maximum resistance, featuring a central slide latch for a heavy-duty padlock and two lockable drop bolts that anchor the gate securely at its base.
The gate's structure is made from high-quality steel that has been hot-dip galvanised and polyester powder coated for superior protection against rust. The rigid MeshPro® 10 infill combined with the 3.0m height makes it an extreme anti-climb and anti-cut barrier. To prevent tampering, all six hinges are permanently secured with shear nuts.
Installation Made Easy
Installation is supported with options for either dig-in posts for soft ground or bolt-down posts for concrete. All ground anchor bolts are supplied with the bolt-down kits. For dig-in applications, a strong foundation using at least five bags of Post Mix per post with C20 or C25 concrete is essential.
