3.0m x 5.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 3000mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5570mm |
| Box Sections of Posts | [Hinge Posts: 150mm x 150mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
3.0m x 5.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
Engineered for maximum-security zones, the 3.0m high, 5m wide ProFence® 2X SR2 (B3) double gate offers an unparalleled combination of height, width, and certified strength.
The benefit of a 3.0m high, LPS 1175 B3 rated gate is total access control. It's an essential specification for sites of national critical importance, including research laboratories or pharmaceutical manufacturing sites. The 5.0m opening allows for easy movement of HGVs and materials, while the formidable height and certified strength ensure the site is protected against theft of high-value goods and intellectual property.
This gate configuration is also perfectly suited for securing the main entrances to bonded warehouses or high-value logistics facilities. The 5.0m width accommodates container lorries, and the combination of maximum height and B3 rating is often an explicit requirement for insurance purposes. Achieve full compliance by installing this gate alongside the 3.0m high ProFence® 2X fence system.
This Red Book listed system ensures your widest access points are fortified to the highest standards.
Features & Benefits

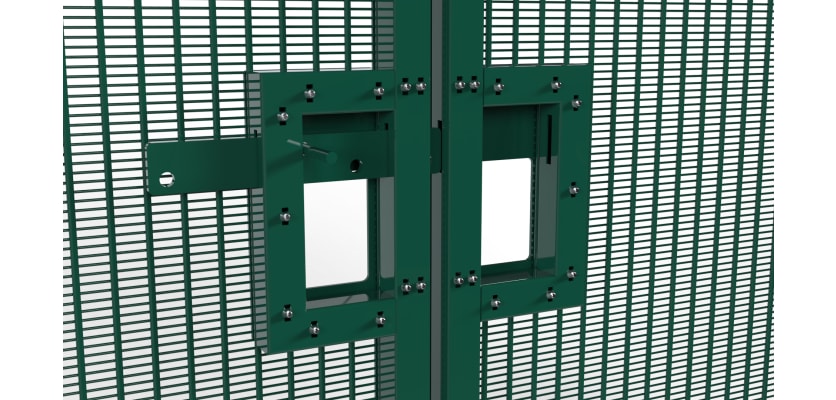

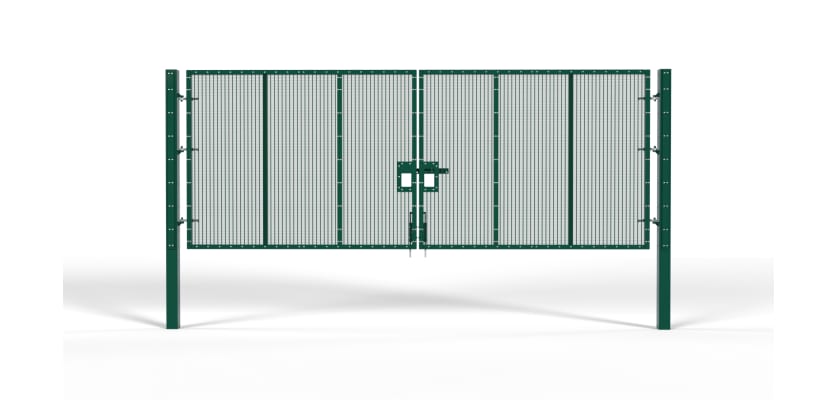

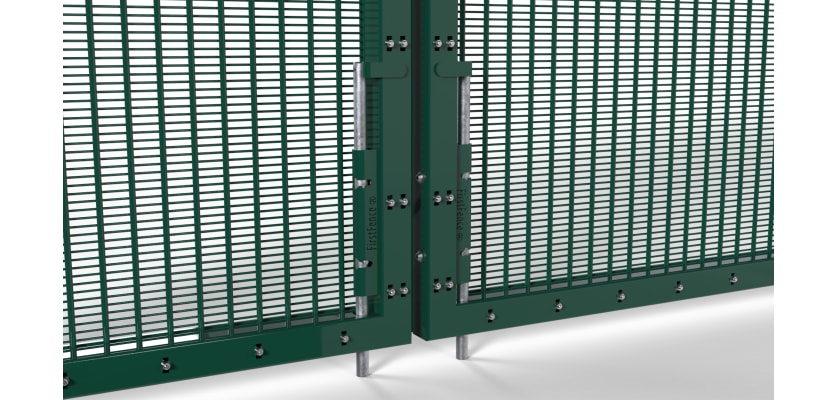

This 3.0m x 5.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit is supplied with two 2.5m gate leaves, two hinge posts, and six SR2-rated gate eyes. The gate is secured via a central slide latch and twin, lockable drop bolts that anchor the gate deep into the ground, creating a highly secure closure.
The gate's construction features a dual-layer of protection: a hot-dip galvanised base and a polyester powder-coated topcoat for extreme longevity. The gate leaves feature our MeshPro® 10, making climbing the 3.0m structure virtually impossible. All hinge fixings are high-security shear nuts.
Installation Made Easy
The gate system is available in dig-in or bolt-down configurations. Bolt-down posts are supplied with ground anchor bolts. For the tall dig-in posts, we advise using C20 or C25 grade concrete and recommend four bags of Post Mix per post for an unshakeable foundation.
