Height | 2000mm [Installed] |
Access Width | 9000mm |
Total Width | 9670mm |
Box Sections of Posts | [Hinge Posts: 200mm x 200mm] |
Primary Gate Leaf | Right Hand Hung |
Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
Material | Hot Dip Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
Name | Quantity |
---|---|
Slider Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Gate Leaf Mesh & Clamp Bar Kit | 2 |
Hinge Post & Clamp Bar Kit | 2 |
SR2 Hinges | 6 |
Locking Drop Bolt | 2 |
Ground Anchors [Bolt Down Only] | 8 |
Ribbed Inserts [To Suit Hinge Posts] | 2 |
For securing exceptionally wide entrances up to 9 metres, this ProFence® 2X double gate offers an LPS 1175 SR2 (B3) rated solution.
The value of the LPS 1175 B3 certification is its focus on delaying skilled attackers. This is a critical factor for protecting sites of national critical importance, where even a brief unauthorised presence can have major consequences. This 9.0m gate is designed for an installation's most significant access point, such as those at airports or ports, allowing for abnormal loads and specialist equipment to pass through without weakening the site's certified security posture.
This gate size is also crucial for securing the perimeters of large-scale manufacturing facilities, particularly in the automotive and aerospace sectors. It allows for the movement of oversized components and prototypes, while the B3 rating protects against corporate espionage and high-value theft. Ensure total perimeter integrity by specifying this gate with the matching ProFence® 2X security fence kit.
It has been rigorously tested to defend against a professional, three-minute assault using an array of aggressive tools (Toolkit B), making it suitable for the highest-risk environments. This Red Book listed gate system provides confidence that your perimeter's largest opening is comprehensively secured.

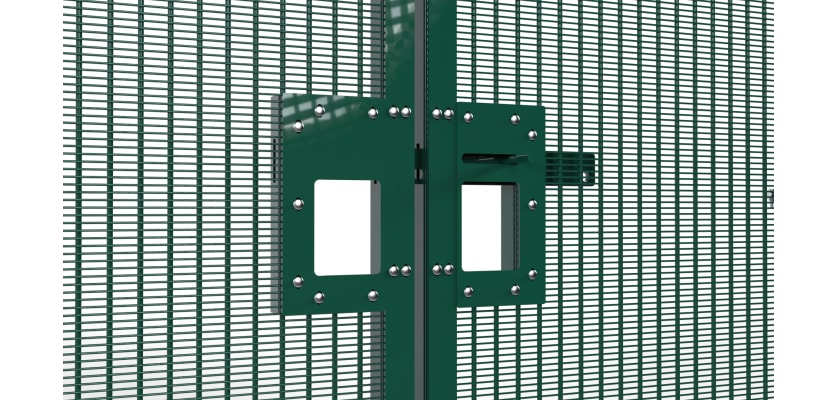

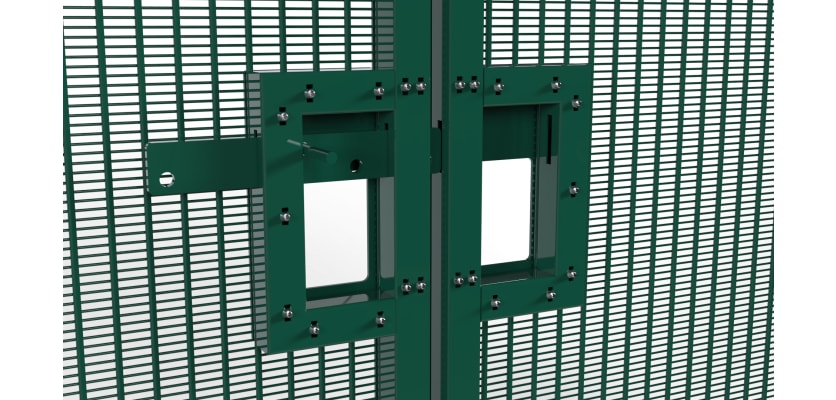

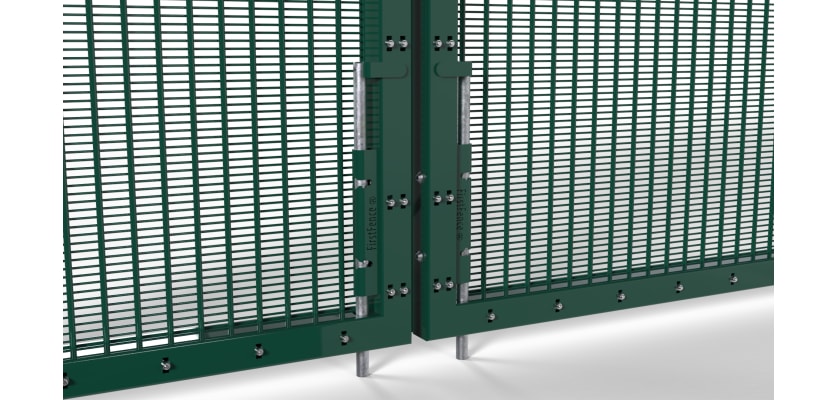

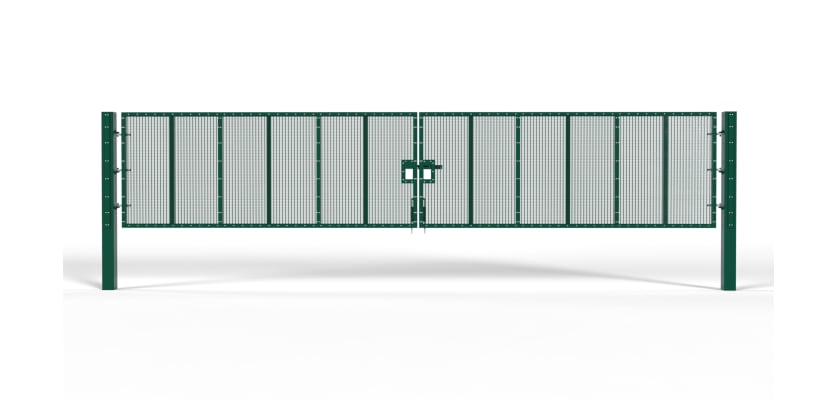

This 2.0m x 9.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit includes two 4.5m gate leaves, two hinge posts, and all the SR2-rated hardware needed for assembly. When closed, the leaves are secured by a central heavy-duty slide latch and two drop bolts that plunge into the ground, creating a steadfast barrier that resists high-impact forces.
The gate's all-steel construction is protected by a dual-layer finish, combining hot-dip galvanisation with a durable polyester powder coat for maximum defence against rust and weather damage. The gate is infilled with the renowned MeshPro® 10, a formidable anti-climb and anti-cut barrier that does not compromise site visibility. All six hinge points are fitted with shear nuts, a one-way security fixing that prevents disassembly.
Available in both bolt-down and dig-in formats to suit various ground conditions. All ground anchor bolts are supplied with the bolt-down option. For a secure and lasting installation of the dig-in posts, we advise using C20 or C25 grade concrete with four bags of Post Mix for each post.
If you have any questions, please contact our team of experts for more details. You can call the friendly First Fence team on 01283 512 111 or email sales@firstfence.co.uk. You can also connect via our live chat service for more information.
