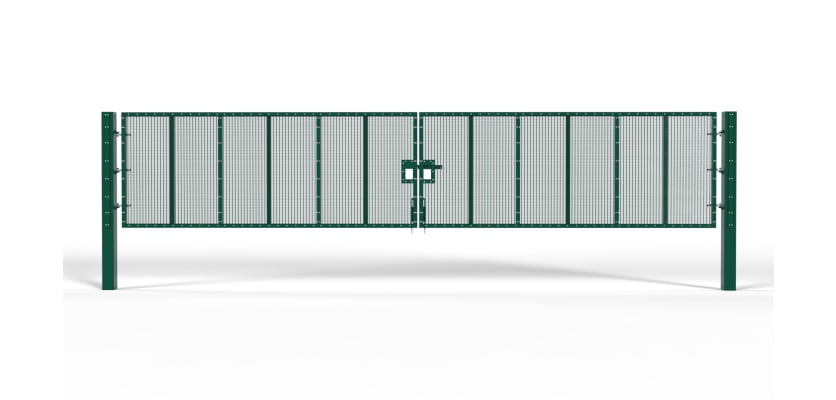

2.0m x 8.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 2000mm [Installed] |
| Access Width | 8000mm |
| Total Width | 8670mm |
| Box Sections of Posts | [Hinge Posts: 200mm x 200mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
2.0m x 8.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
The ProFence® 2X SR2 (B3) Double Gate provides an exceptionally wide and secure entrance, ideal for sites requiring regular access for large vehicles. Its security credentials are confirmed by its LPS 1175 SR2 (B3) certification and Red Book listing, which guarantees resistance against a determined, three-minute forced entry attempt with Toolkit B tools. This gate ensures your access point maintains the high-security rating of your perimeter fence. The 2.0m x 8.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit is a 2.0m high ProFence® gate and is compatible with 2.0m high ProFence® fencing.
Features & Benefits

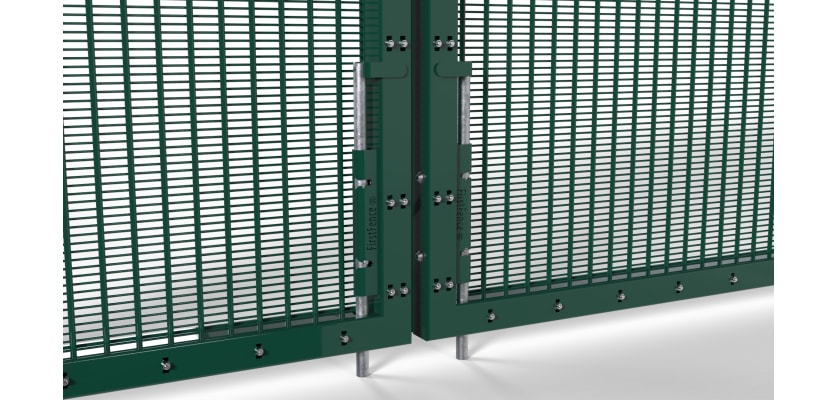

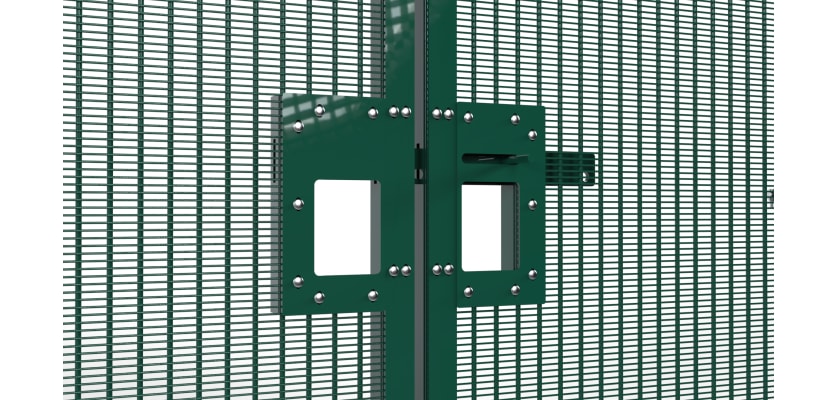

The 2.0m x 8.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit is a complete solution, including two 4.0m gate leaves, two heavy-duty hinge posts, and six SR2-rated gate eyes. The gate features a robust locking system with a central sliding latch and twin ground drop bolts, ensuring the wide leaves remain perfectly aligned and secure against being forced open.

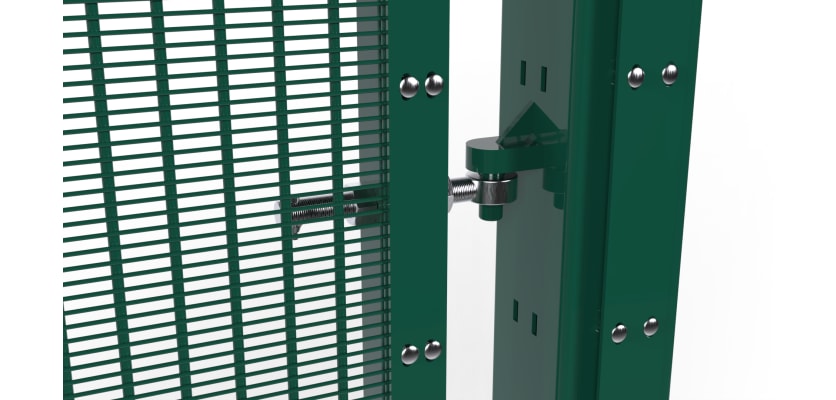

Constructed from steel, the gate is fortified against the elements with a dual-layer finish of hot-dip galvanising and polyester powder coating. This provides a resilient, long-lasting barrier that requires minimal upkeep. The gate's MeshPro® 10 infill panels are designed to prevent intrusion by climbing or cutting, whilst allowing security staff to maintain a clear view of the area. The hinges are secured with tamper-proof shear nuts for a permanent fit.
Installation Made Easy
To ensure a secure fit on any site, the gate is available with either dig-in or bolt-down posts. Bolt-down kits come complete with the required ground anchor bolts. For dig-in posts, creating a solid foundation using four bags of Post Mix per post with C20 or C25 concrete is highly recommended for stability.
