2.0m x 5.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 2000mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5570mm |
| Box Sections of Posts | [Hinge Posts: 150mm x 150mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |

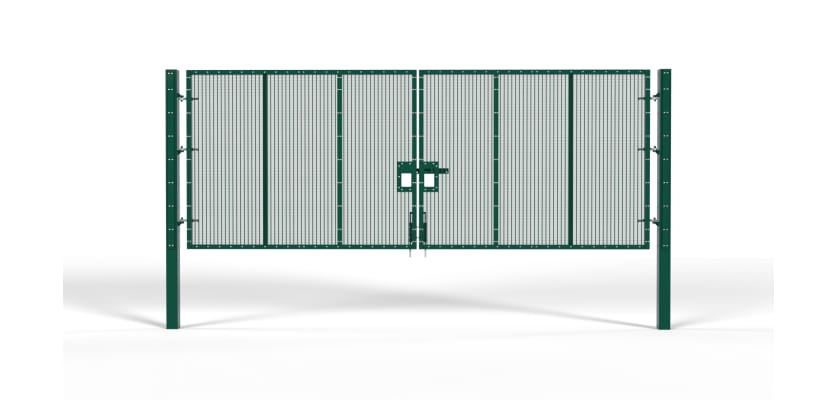

2.0m x 5.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
Engineered to deter the most determined intruders, the ProFence® 2X SR2 (B3) double gate is the ideal solution for securing wide access points at high-risk locations.
A key benefit of specifying an LPS 1175 B3 rated gate is the confidence it gives to insurers and security stakeholders. This 5.0m model is perfectly suited for the goods-in areas of secure distribution centres or the main entrances to sites of national critical importance, like water treatment works. It provides a wide, practical opening for frequent HGV traffic while ensuring the entire boundary maintains its certified ability to delay and deter intruders.
This gate is also an ideal specification for securing service access roads on the perimeter of airports and ports. The 5.0m width allows for emergency service vehicles and maintenance crews to pass through unhindered, while the B3 rating prevents this access from becoming a vulnerability in the site's overall security plan. For a fully certified boundary, combine this gate with the matching ProFence® 2X security fence kit.
Its LPS 1175 certification verifies that it can withstand a rigorous, tool-heavy attack (Toolkit B) for a minimum of three minutes, providing a crucial delay for a response to be mounted. This Red Book listed system ensures your perimeter's access point is as secure as its fence line.
Features & Benefits

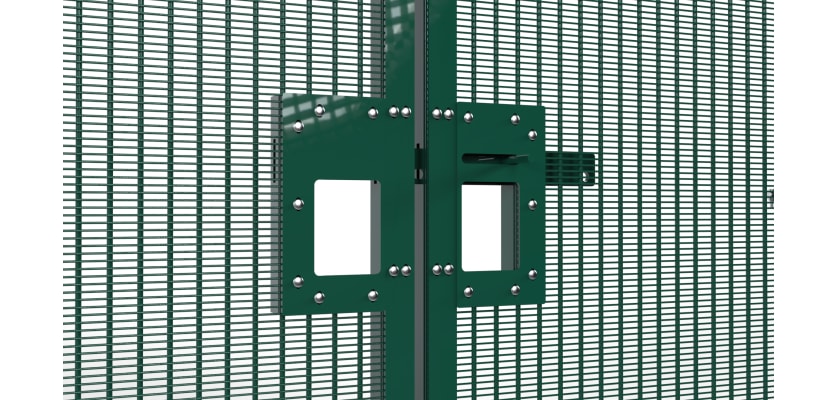

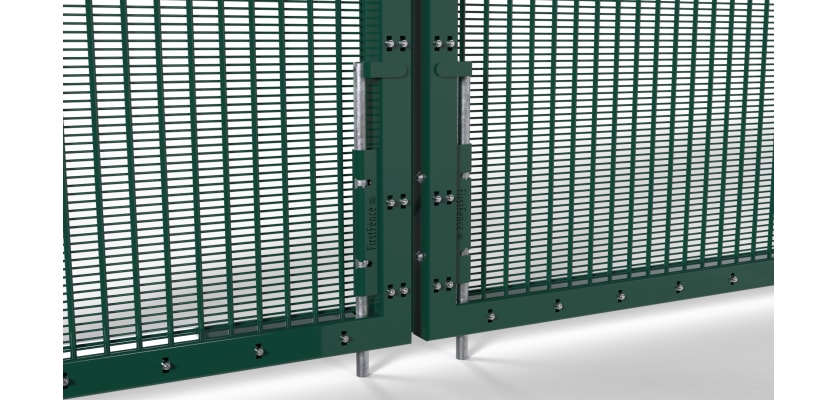

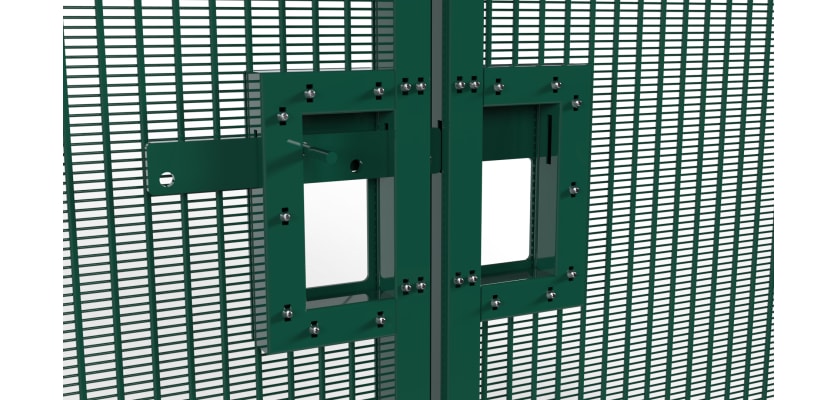

This 2.0m x 5.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit is supplied with two 2.5m gate leaves, two hinge posts, and six SR2-rated gate eyes. The gate is secured via a central slide latch mechanism and twin lockable drop bolts that anchor the gate to the ground, creating a highly secure closure that resists being forced.
The construction features a dual-layer of protection: a hot-dip galvanised base and a polyester powder-coated topcoat. This combination provides outstanding resistance to weathering and corrosion. The gate leaves feature our signature MeshPro® 10 mesh, a design renowned for its anti-climb and anti-cut properties, which crucially maintains good visibility across the boundary. All hinge fixings are high-security shear nuts, ensuring they cannot be unfastened after the initial installation.
Installation Made Easy
The gate system is available in dig-in or bolt-down configurations to match your ground conditions. Bolt-down posts are supplied with ground anchor bolts for a secure surface fixing. For dig-in posts, we advise using C20 or C25 grade concrete and suggest two to three bags of Post Mix per post for a robust foundation.
