Height | 2000mm [Installed] |
Access Width | 3000mm |
Total Width | 3510mm |
Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
Primary Gate Leaf | Right Hand Hung |
Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
Material | Hot Dip Galvanised Steel |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
Name | Quantity |
---|---|
Slider Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Gate Leaf Mesh & Clamp Bar Kit | 2 |
Hinge Post & Clamp Bar Kit | 2 |
SR2 Hinges | 6 |
Locking Drop Bolt | 2 |
Ground Anchors [Bolt Down Only] | 8 |
Ribbed Inserts [To Suit Hinge Posts] | 2 |
Our ProFence® 2X gate system offers SR2 (B3) LPS 1175 certified protection, designed specifically for locations requiring a superior defence against determined intruders.
The benefit of the LPS 1175 B3 certification lies in its proven ability to resist hostile attacks, providing the critical time needed for security teams to intervene. This makes it an essential specification for protecting the nation’s infrastructure. A 3.0m wide gate is perfectly suited for utility substations or communication facilities, allowing regular vehicular access for maintenance while guaranteeing a certified level of defence against sabotage or unauthorised entry at all times.
Beyond utilities, this gate size is ideal for the service entrances of cash-in-transit depots or regional police facilities. It allows light commercial vehicles to pass with ease, while the B3 rating ensures the entrance is a hardened target that fulfils the strict security protocols required by insurers for such operations. A comprehensive security solution is achieved when this gate is installed alongside the corresponding ProFence® 2X fence kit, providing uniform, certified protection.
This security rating is awarded only to products that can resist a sustained, three-minute attack from an experienced operative using Toolkit B, a collection of tools significantly more capable than those used in SR1 tests. The ProFence® 2X range is listed in the Red Book as a testament to its certified security performance.

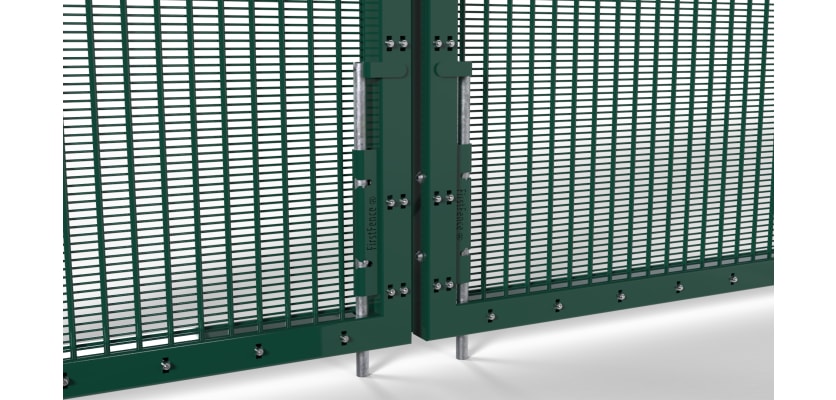

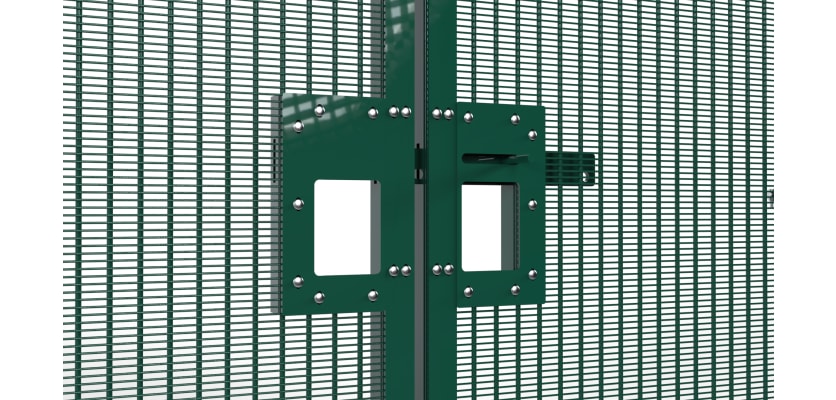

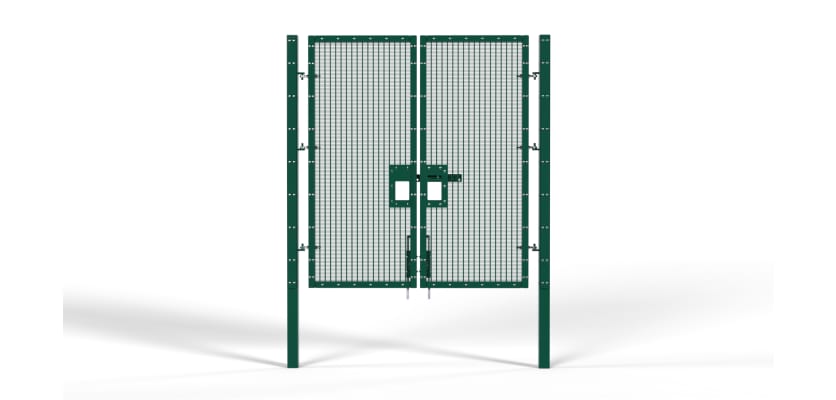

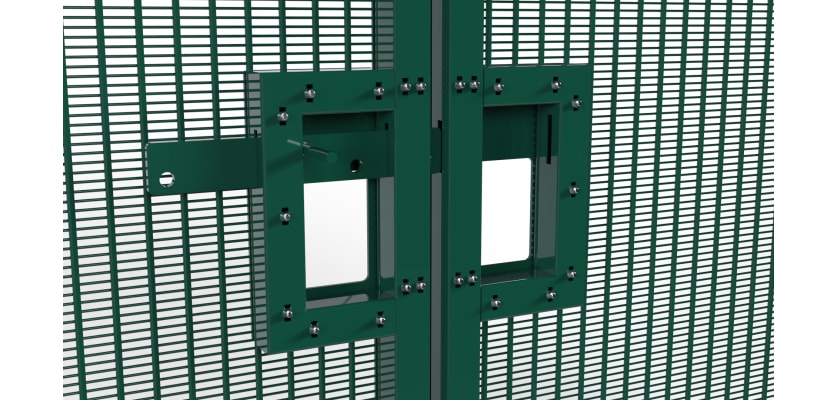

This 2.0m x 3.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit provides a 3.0m wide opening and includes two gate leaves (1.5m each), two hinge posts, and all essential SR2-rated fittings. The double leaves are secured at the centre with a robust slide latch designed for a high-security padlock, while two drop bolts anchor the leaves firmly to the ground when closed.

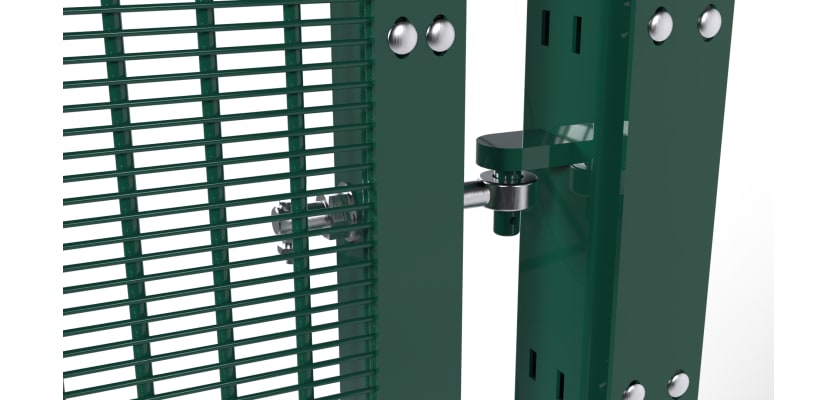

The gate's exceptional durability comes from its galvanised steel construction, which is further enhanced with a protective polyester powder-coated finish. This dual-layer treatment ensures a long service life with minimal maintenance, even in challenging outdoor environments. The incredibly robust MeshPro® 10 infill offers excellent through-visibility without compromising on strength, preventing climbing and resisting attempts to cut through it. For ultimate security, the six hinges are fastened with shear nuts, a permanent, tamper-proof fixing.
This gate is available in both bolt-down and dig-in formats to suit your site's ground conditions. The bolt-down version is supplied with ground anchor bolts for installation. When installing the dig-in posts, a secure foundation is critical; we advise using at least two to three bags of Post Mix for each post. C20 or C25 grade concrete is recommended.
Should you have any questions about this range of LPS 1175 rated fencing, or for more information on stock and availability, please don’t hesitate to contact us. We can be reached via phone on 01283 512 111, via email at sales@firstfence.co.uk or we can be reached via our online chat system where one of our helpful and friendly staff will be more than happy to assist you.
