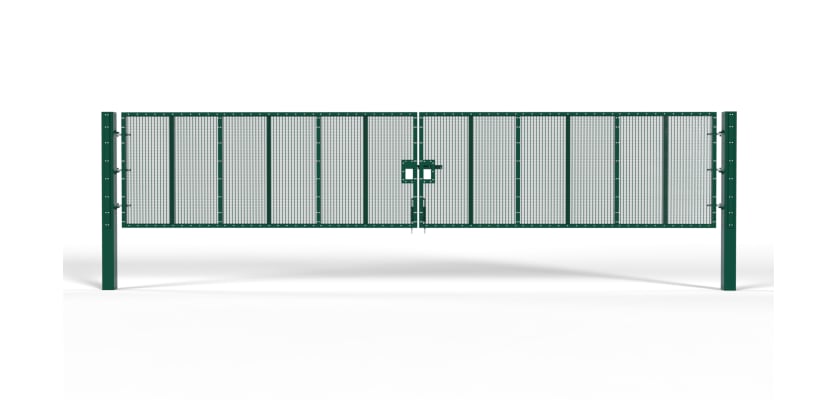

2.0m x 10.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 2000mm [Installed] |
| Access Width | 10000mm |
| Total Width | 10670mm |
| Box Sections of Posts | [Hinge Posts: 200mm x 200mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
2.0m x 10.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
Providing a maximum width opening, the 10-metre ProFence® 2X double gate is the ultimate solution for sites needing to accommodate oversized vehicles without sacrificing security.
An LPS 1175 B3-rated gate is a cornerstone of any high-security physical protection system. For the largest and most critical facilities, such as major data centre campuses or MoD sites, a 10.0m clear opening is often a necessity for specialist deliveries and construction. This gate provides access while upholding the stringent security demands of the sector, ensuring that there are no weak points in the perimeter capable of being exploited by determined adversaries.
It is also an essential specification for securing large-scale renewable energy sites, such as wind farms or solar arrays, during their construction and operational phases. The 10.0m width is necessary for the delivery of turbine blades and large transformers, while the B3 rating protects high-value assets from theft or malicious damage. A complete, uniform boundary is achieved by installing this gate with the ProFence® 2X fence system.
It is certified to the demanding LPS 1175 SR2 (B3) standard and is Red Book listed, guaranteeing it has been tested to withstand a three-minute attack from operatives using advanced tools like drills and axes (Toolkit B). This ensures even the widest access point on your site is fully protected.
Features & Benefits

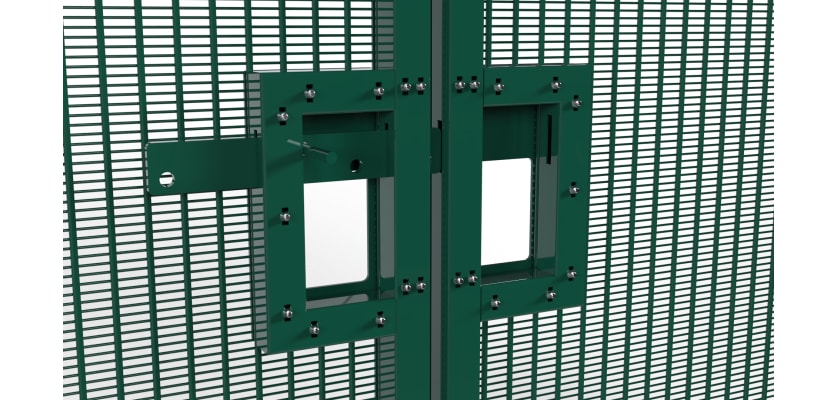

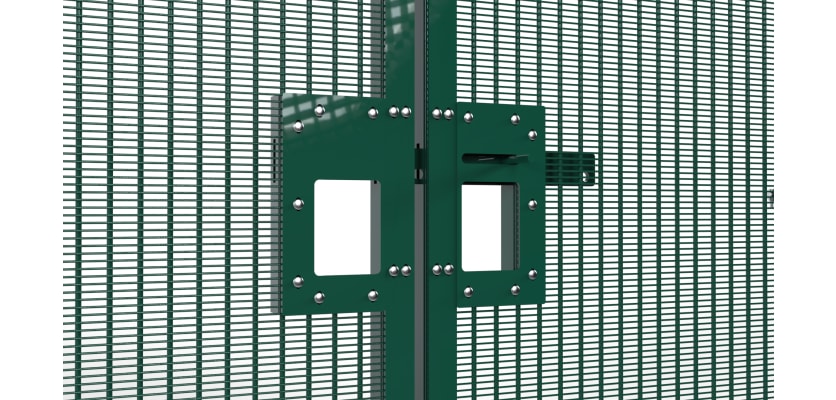

The 2.0m x 10.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit is a comprehensive package containing two 5.0m gate leaves, two hinge posts, and six SR2-rated gate eyes. The gate's substantial span is secured through a robust central slide latch and two lockable drop bolts that anchor the gate firmly into the ground, ensuring total rigidity and security when closed.
Fabricated from high-grade steel, the gate system is protected by a hot-dip galvanised coating to ISO 1461, with an additional polyester powder-coated finish for superior durability and corrosion resistance. The gate features the formidable MeshPro® 10 infill, designed to defeat cutting and climbing attempts while maintaining clear lines of sight for surveillance. The six hinges are permanently installed using tamper-resistant shear nuts.
Installation Made Easy
This gate system can be ordered in a dig-in format for soft ground or a bolt-down format for concrete. Bolt-down versions are supplied with all the required ground anchor bolts. To support the weight and length of these gate leaves, we strongly recommend using C20 or C25 concrete with at least three to four bags of Post Mix per dig-in post.
