2.4m x 9.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
| Height | 2400mm [Installed] |
| Access Width | 9000mm |
| Total Width | 9670mm |
| Box Sections of Posts | [Hinge Posts: 200mm x 200mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
2.4m x 9.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
For securing exceptionally wide entrances, this 2.4m high ProFence® 2X double gate offers an LPS 1175 SR2 (B3) rated solution.
The independently verified resistance of the LPS 1175 B3 rating provides peace of mind for security managers at high-stakes facilities like data centres. A 9.0m gate is often required for the delivery of prefabricated server modules or large generators. This gate solution allows for these logistical necessities while maintaining a hardened, certified barrier against physical threats to digital assets.
It is also a critical specification for securing vehicle auction compounds or high-end car storage facilities. The 9.0m width accommodates car transporters, while the B3 rating provides the necessary delay against organised criminal gangs targeting high-value vehicles. A seamless, certified boundary is created by pairing this gate with the 2.4m high ProFence® 2X fence.
This Red Book listed gate system provides confidence that your perimeter's largest opening is comprehensively secured.
Features & Benefits

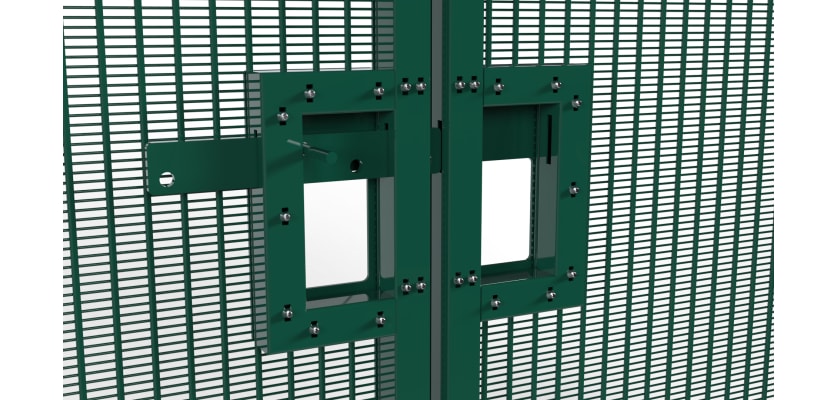

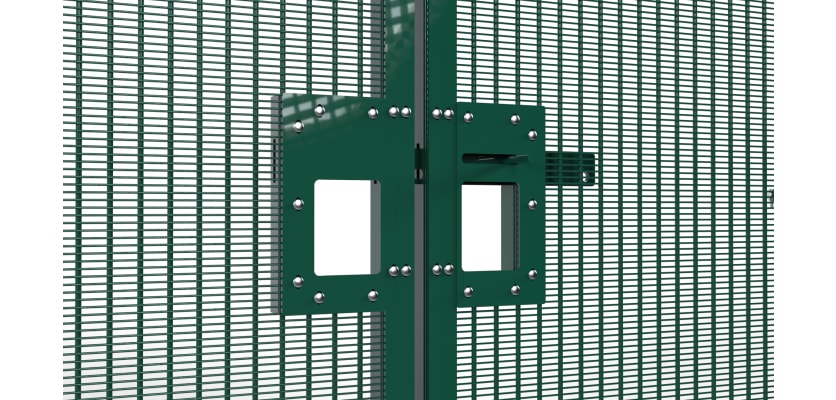

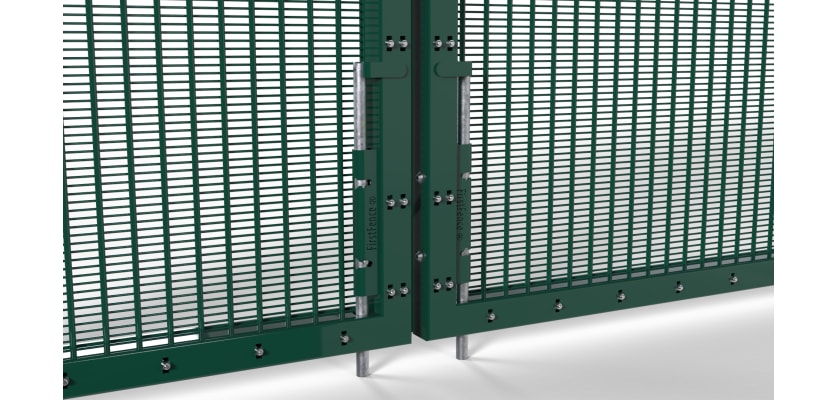

This 2.4m x 9.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit includes two 4.5m gate leaves, two hinge posts, and all the SR2-rated hardware needed. When closed, the leaves are secured by a central heavy-duty slide latch and two drop bolts that plunge into the ground.
The gate's all-steel construction is protected by a dual-layer finish, combining hot-dip galvanisation with a durable polyester powder coat. The gate is infilled with the renowned MeshPro® 10 mesh. All six hinge points are fitted with shear nuts, a one-way security fixing.
Installation Made Easy
Available in both bolt-down and dig-in formats. All ground anchor bolts are supplied with the bolt-down option. For a secure installation of the dig-in posts, we advise using C20 or C25 grade concrete with five bags of Post Mix for each post.
