2.4m x 7.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
Product Description

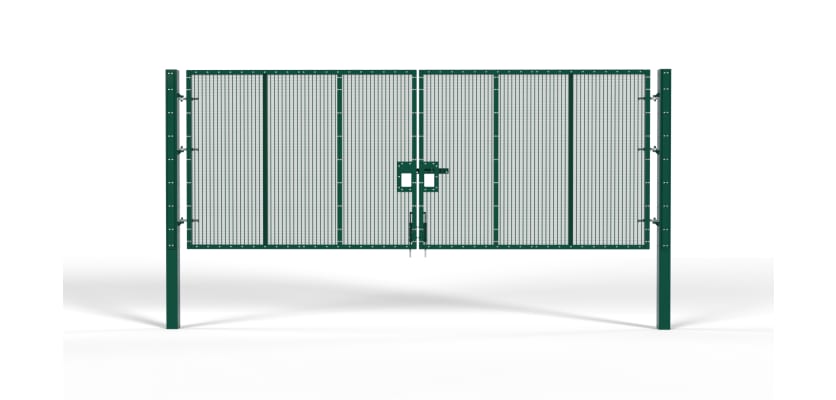

2.4m x 7.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
When securing a wide vehicular access point with an imposing, high-security gate, this 2.4m high ProFence® 2X SR2 (B3) model is the ideal choice.
The primary benefit of the LPS 1175 B3 certification is the crucial 'attack delay time' it guarantees. This is a core principle in the security design of data centres and other high-tech facilities. This 7.0m wide gate allows for easy transit of large cooling units or modular building components while ensuring the access point provides a proven, certified resistance against determined intrusion attempts.
It is also an excellent specification for securing the service entrances to major sporting stadiums and arenas. The 7.0m width accommodates broadcast trucks and stage equipment, while the B3 rating protects the venue and its assets outside of event days. Create a complete, secure perimeter by using this gate with the 2.4m high ProFence® 2X fence kit.
This system carries the prestigious LPS 1175 certification and, as a Red Book listed product, it provides a trusted and verified solution.
Features & Benefits

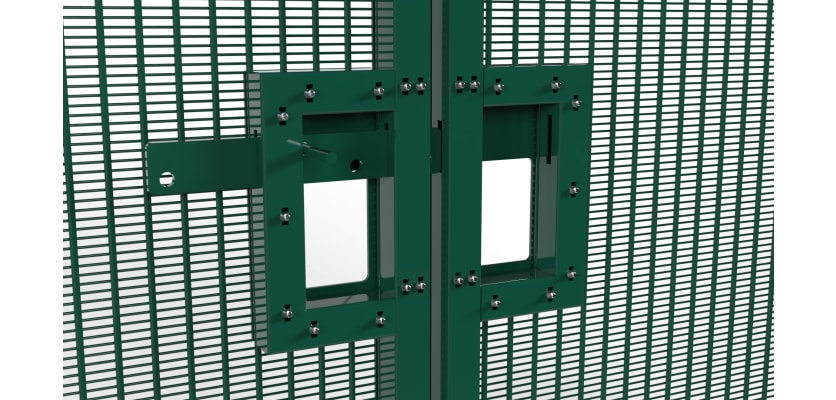

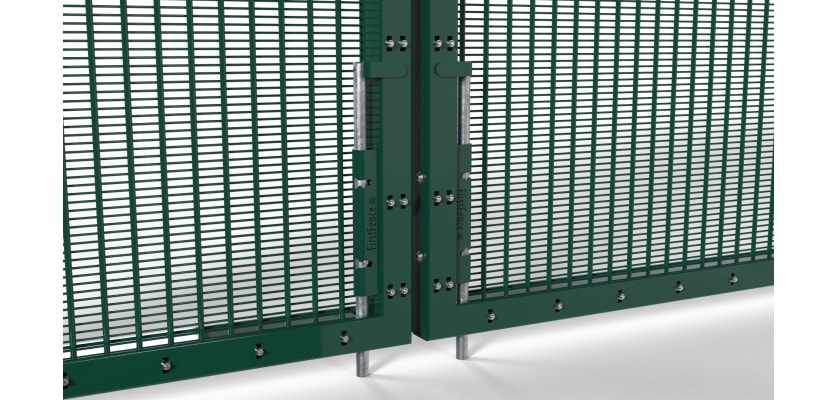

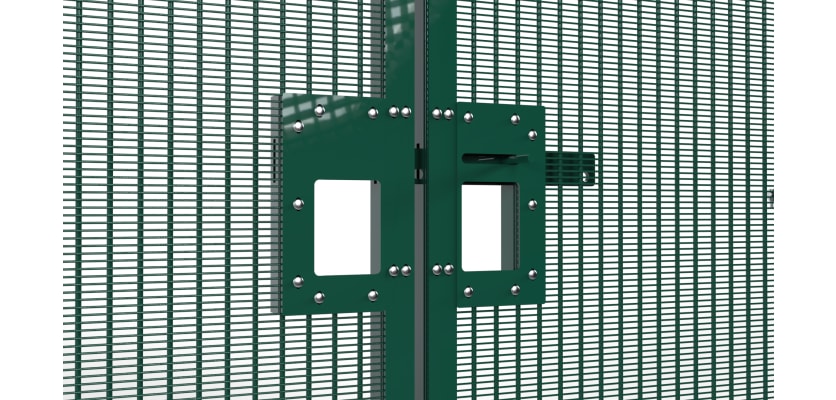

This comprehensive 2.4m x 7.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit contains two 3.5m leaves, two hinge posts, and the required SR2-rated fixtures. The gate's locking system is designed for maximum resistance, featuring a central slide latch and two lockable drop bolts.
The gate's structure is made from high-quality steel that has been hot-dip galvanised and polyester powder coated for superior protection against rust. The rigid MeshPro® 10 infill is a key security feature. To prevent tampering, all six hinges are permanently secured with shear nuts.
Contact Us
If you have any questions, please contact our team of friendly experts. We are available by phone on 01283 512 111 or email sales@firstfence.co.uk for more details. You can also connect via our live chat service.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 7000mm |
| Total Width | 7570mm |
| Box Sections of Posts | [Hinge Posts: 150mm x 150mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
