2.4m x 6.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
Product Description
2.4m x 6.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
This 2.4m high, 6m wide ProFence® 2X double gate system is a formidable barrier, certified to the LPS 1175 SR2 (B3) security standard.
The LPS 1175 B3 rating provides the verified delay necessary to protect sites of national critical importance from sophisticated threats. A 6.0m gate is essential for sites that require regular access for HGVs, such as logistics hubs within the national supply chain or service entrances for large government buildings. This gate ensures operational needs are met without creating a vulnerable point in the security line.
It also serves as a vital security measure for the entrances to reservoirs and water treatment facilities. The 6.0m width accommodates tankers and maintenance plant, while the 2.4m height and B3 rating protect the public water supply from contamination or malicious acts. Ensure the entire facility is protected by installing this gate with the matching 2.4m ProFence® 2X fence system.
This gate has been proven to resist a sustained, three-minute attack from an intruder equipped with Toolkit B. The system's inclusion in the Red Book guarantees its high-security credentials.
Features & Benefits

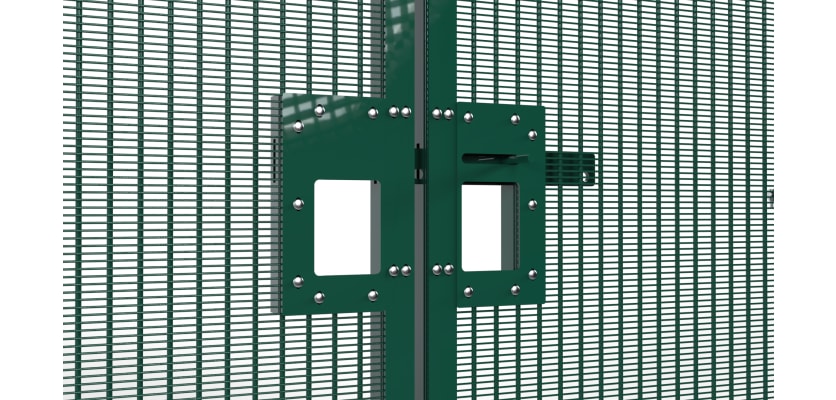

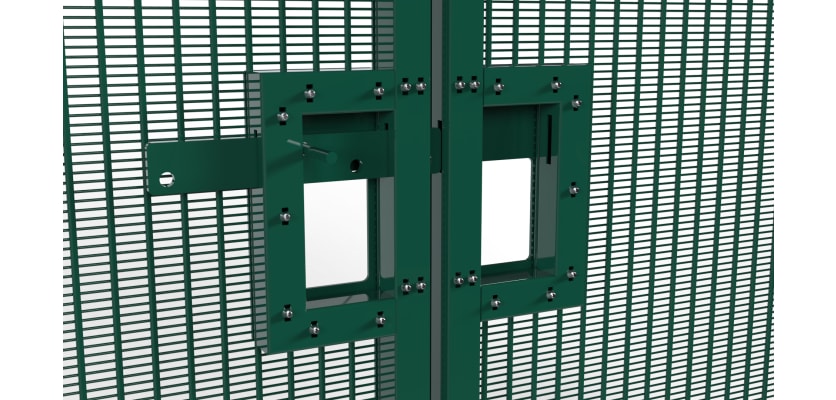

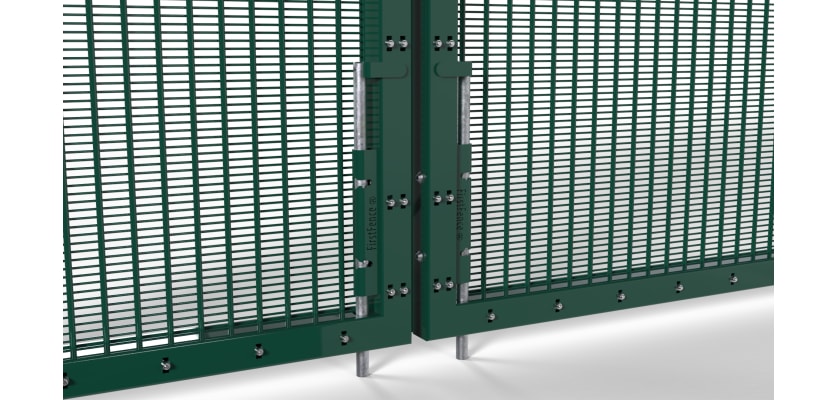

The 2.4m x 6.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit includes two 3.0m wide gate leaves, two hinge posts, and all essential SR2-rated hardware. Security is assured by a powerful central sliding latch and dual drop bolts, which create a secure, unified barrier when closed.
Its robust steel frame is protected by a hot-dip galvanised coating and a tough polyester powder finish. The gate leaves are filled with MeshPro® 10 security mesh, which presents a significant obstacle to cutting or climbing. The six gate eyes are attached using shear nuts for a permanent, tamper-proof fit.
Contact Us
For specialist advice, speak to our team today by calling 01283 512 111 or using the website's live chat feature.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 6000mm |
| Total Width | 6570mm |
| Box Sections of Posts | [Hinge Posts: 150mm x 150mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
