2.4m x 3.0m Wide ProFence® 2X SR2 (B3) LPS 1175 Double Gate Leaf Kit
Product Description
2.4m x 3.0m Wide ProFence® 2X LPS 1175 SR2 (B3) Double Gate Leaf Kit
Our 2.4m high ProFence® 2X gate offers an SR2 (B3) LPS 1175 certified access solution for perimeters requiring superior protection. The extra height makes it an even more formidable obstacle.
The LPS 1175 B3 rating provides assurance that the gate is not just a boundary marker but an active defence mechanism. The certified three-minute delay is crucial for facilities like data centres, where a rapid security response is essential to prevent catastrophic data breaches. This 3.0m wide gate is an excellent choice for utility access points, allowing maintenance vans and small trucks entry while ensuring the perimeter's certified security is upheld.
It also serves as an excellent solution for securing the perimeters of secure storage facilities, where high-value personal or commercial goods are kept. The 3.0m width allows for easy customer access with vans, while the B3 rating provides the high level of security their insurers demand. For a complete perimeter solution, this gate is designed to work seamlessly with the 2.4m high ProFence® 2X fence system.
This gate system has withstood rigorous testing against the advanced tools in Toolkit B for three minutes, earning its place in the Red Book and making it a trusted choice for protecting critical infrastructure.
Features & Benefits

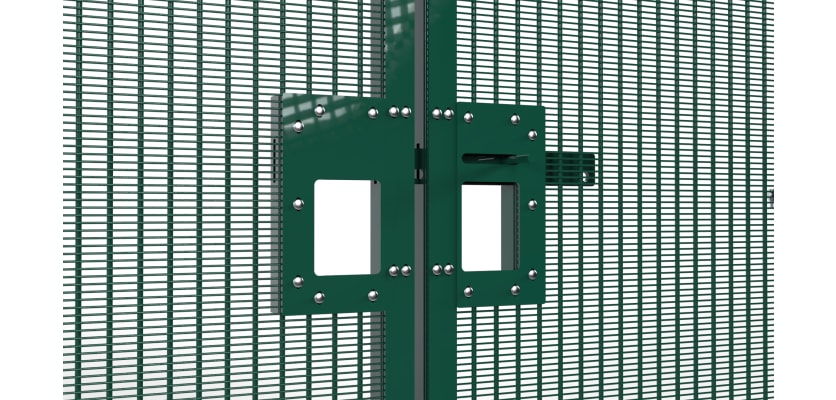

The 2.4m x 3.0m Wide ProFence® 2X SR2 (B3) Double Gate Leaf Kit provides a 3.0m opening via two 1.5m leaves, and includes two hinge posts and all necessary SR2-rated hardware. Security is assured by a powerful central sliding latch and dual drop bolts, which work together to create a secure, unified barrier when closed.

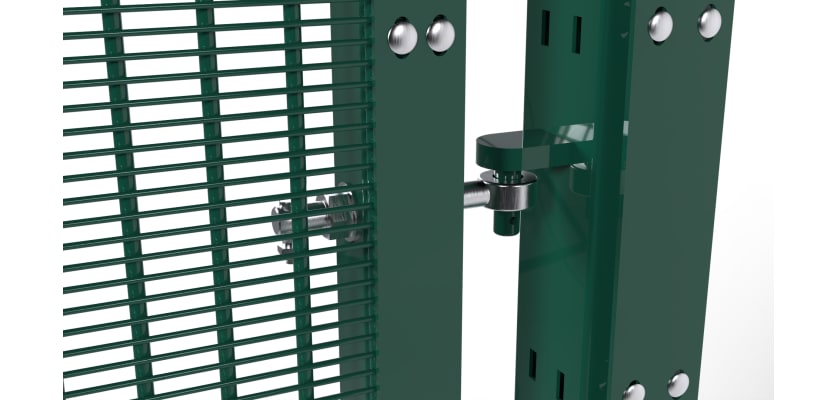

The gate's exceptional durability comes from its galvanised steel construction, which is further enhanced with a protective polyester powder-coated finish. The tight-knit MeshPro® 10 mesh infill offers excellent through-visibility without compromising on strength. For ultimate security, the six hinges are fastened with shear nuts.
Get in Touch
Our sales team is on hand to provide further information. Call us on 01283 512 111 or email sales@firstfence.co.uk for more details. You can also use the online chat tool for more information.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3510mm |
| Box Sections of Posts | [Hinge Posts: 120mm x 120mm] |
| Primary Gate Leaf | Right Hand Hung |
| Thickness of Wires | [Horizontal: 4mm] [Vertical: 10mm] |
| Material | Hot Dip Galvanised Steel |
| PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
| Compliant To | ISO 1461 [Galvanising], BS EN 13438 [Powder Coating] and BS 12604 [Gate Safety] |
What's Included
| Name | Quantity |
|---|---|
| Slider Gate Leaf | 1 |
| Catch Gate Leaf | 1 |
| Gate Leaf Mesh & Clamp Bar Kit | 2 |
| Hinge Post & Clamp Bar Kit | 2 |
| SR2 Hinges | 6 |
| Locking Drop Bolt | 2 |

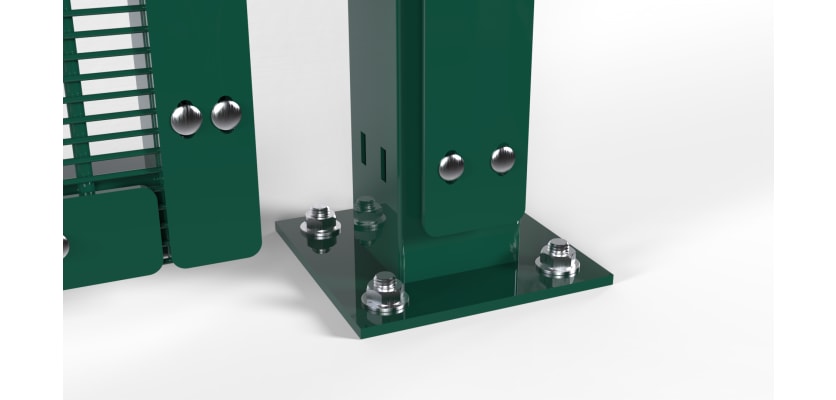

| Ground Anchors [Bolt Down Only] | 8 |
| Ribbed Inserts [To Suit Hinge Posts] | 2 |
