3.0m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
Product Description
3.0m High x 3.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
When wide-span vehicle access needs maximum perimeter security, this 3.0m x 3.0m EnviroProtect® Anti-Climb gate is the definitive solution. Standing an imposing 3.0m tall, its fully welded 358 ‘prison mesh’ infill creates an outstanding defence against climbing and cutting attempts. Certified to LPS 1175 A1 (SR1) and designed with the heaviest-duty posts in the range, this gate delivers unrivalled strength and reliability.
Dual Security: Certification & Anti-Climb Design
Independently tested and approved to LPS 1175 A1 (SR1), the gate is proven to resist opportunistic forced entry using hand tools. Its dense 358 mesh infill further strengthens the defence, preventing footholds for climbing and resisting tampering, making it exceptionally hard to breach.
Built for Strength and Longevity
The 60x60mm box section gate leaf is reinforced with a fully welded 358 mesh panel, ensuring rigidity and resilience. To support the wide span, an uprated 100x100mm hinge post provides enhanced stability, reducing strain and preventing sagging over time. Every component is pre-galvanised, offering long-lasting protection against corrosion in even the harshest environments.
Technical Details
- Height: 3.0m (3000mm)
- Clear Width: 3.0m (3000mm)
- Total Installed Width: 3330mm
- Gate Leaf: 60x60mm with welded 358 mesh
- Hinge Post: 100x100x3mm
- Catch Post: 80x80x3mm
- Supplied in a pre-galvanised steel finish
Installation Options
This kit includes both Bolt-Down posts (3000mm length) for fixing to existing hardstanding, and extended Dig-In posts (3700mm length) for concreting into softer ground, giving you complete flexibility for a stable installation.
Applications

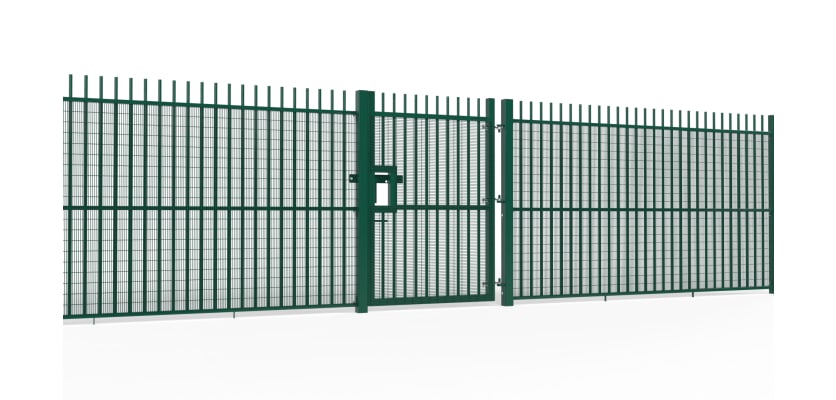

The ultimate choice for securing main vehicle entrances at prisons, Critical National Infrastructure sites, government facilities, and high-security logistics depots. The gate integrates seamlessly with the 3.0m EnviroProtect® Anti-Climb railing system for a consistent, high-security perimeter.
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3330mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 120x120x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 140mm Bolts | 3 |
| M10 x 100mm Bolts | 3 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 1 |
| 120x120mm Ribbed Inserts | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3330mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 120x120x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 140mm Bolts | 3 |
| M10 x 100mm Bolts | 3 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 1 |
| 120x120mm Ribbed Inserts | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
