2.0m High x 1.2m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
| Height | 2000mm [Installed] |
| Access Width | 1200mm |
| Total Width | 1490mm |
| Total Post Length | 2000mm [Bolt Down], 2700mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |

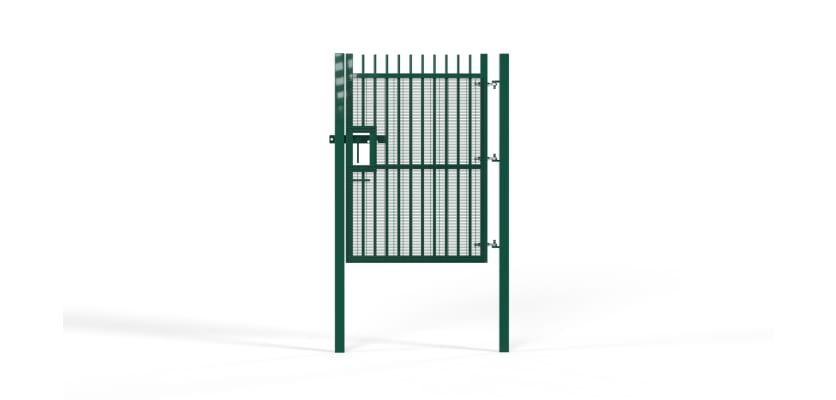

2.0m High x 1.2m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
This 2.0m high, 1.2m wide EnviroProtect® Anti-Climb Gate provides a secure and accessible entry point for high-security sites. Its increased height offers extra deterrence, while the fully welded 358 mesh infill makes climbing or cutting virtually impossible. Independently tested to LPS 1175 A1 (SR1), this gate ensures proven perimeter protection without compromising accessibility.
Certified Dual Protection
- SR1 certified frame resists tool-based attacks.
- 358 mesh infill prevents climbing and is exceptionally difficult to cut.
- Together, these features deliver robust defence against both forced and agile intrusion attempts.
Strength Built In
The gate is manufactured from a 60x60mm box section leaf frame with the 358 mesh securely welded into place. Every component is pre-galvanised for excellent corrosion resistance, ensuring durability and a long service life even in tough environments.
Technical Specification
- Height: 2.0m (2000mm)
- Clear access width: 1.2m (1200mm)
- Total installed width: 1490mm
- Gate leaf: 60x60mm frame with 358 mesh infill
- Posts: 80x80x3mm hinge and catch posts
- Finish: Pre-galvanised steel
Flexible Installation
This kit includes both:
- Bolt-down posts (2000mm): for fixing onto existing hard surfaces.
- Dig-in posts (2700mm): for setting into new concrete foundations.
This ensures a stable and secure fit across different ground conditions.
Applications

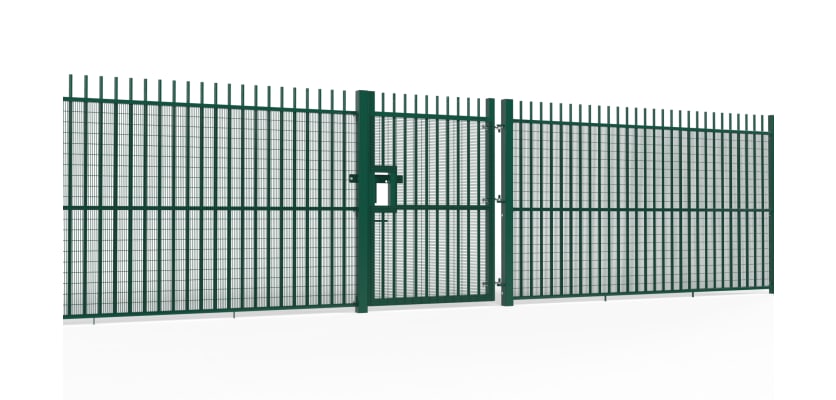

Perfect for sites requiring wider pedestrian access, such as industrial complexes, laboratories, and utility facilities, where anti-climb security is essential. Pairs seamlessly with the 2.0m EnviroProtect® Anti-Climb fencing system to maintain perimeter consistency.
Get in Touch
Ready to secure your perimeter with a superior solution? For technical data sheets, quotations, and expert advice on the EnviroProtect® Anti-Climb system, contact our team. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect with us via Live Chat on our website.
