2.0m High EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Vertical Bar Railing Kit
Product Description
2.0m High EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Vertical Bar Railing Kit

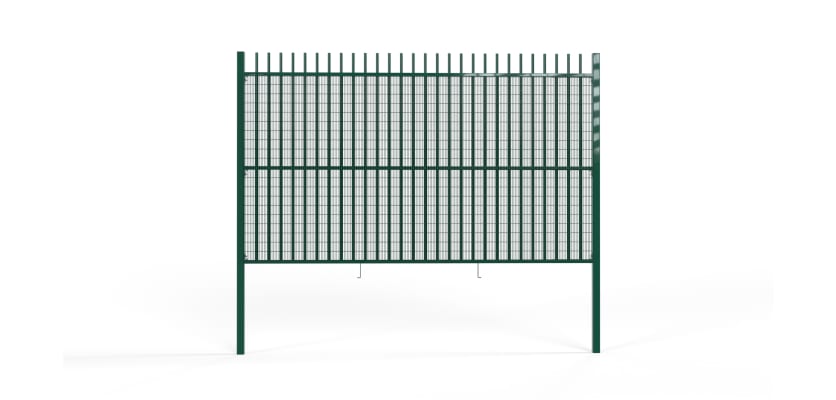

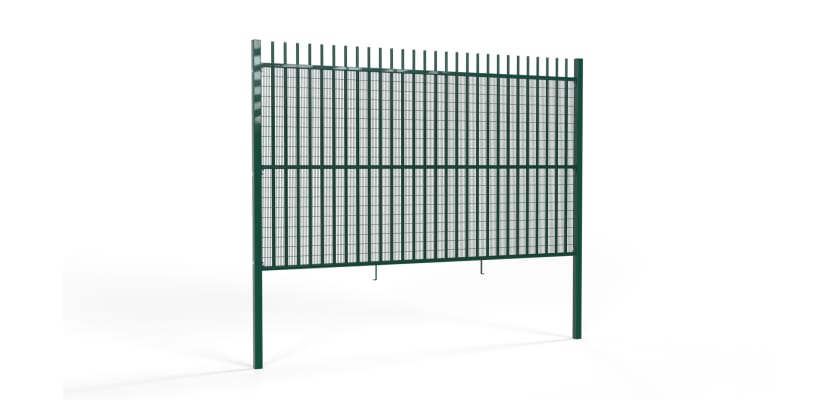

The 2.0m High EnviroProtect® Anti-Climb Vertical Bar Railing Kit delivers a higher level of perimeter security while retaining a professional, smart appearance. Its standout feature is the integrated 358 anti-climb mesh, welded discreetly to the internal face of each panel. This mesh layer prevents footholds and handholds without altering the clean, vertical bar design, making it an ideal solution where both aesthetics and certified security matter. Independently tested and certified to LPS 1175 A1(SR1), it provides proven resistance against intrusion attempts.
Dual-Layered Security Protection
This railing kit offers protection on two fronts. Firstly, its SR1 certification demonstrates its ability to withstand a sustained, tool-based attack for at least 60 seconds. Secondly, the welded 358 mesh layer makes scaling the fence virtually impossible while maintaining open visibility for surveillance systems. Together, they form a comprehensive security barrier that deters both physical attacks and climbing attempts.
Built for Strength and Longevity
Constructed from high-quality steel, this system combines strength, rigidity, and resilience. The vertical bars and supporting rails form a durable frame, while the integrated mesh reinforces the panel’s anti-climb defence. Each component is supplied with a pre-galvanised finish, providing lasting protection against rust and corrosion for a long, low-maintenance service life.
Technical Specification
- Finished height: 2.0m (2000mm)
- Panel width: 2900mm

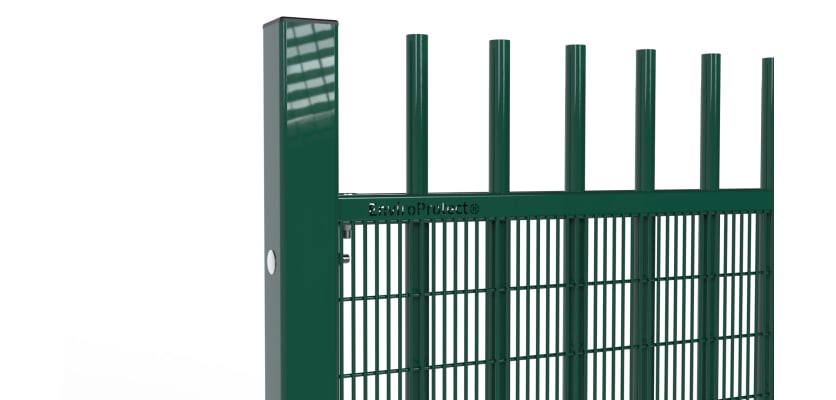

- Vertical bars: 25.4mm tubular steel, set at 100mm centres

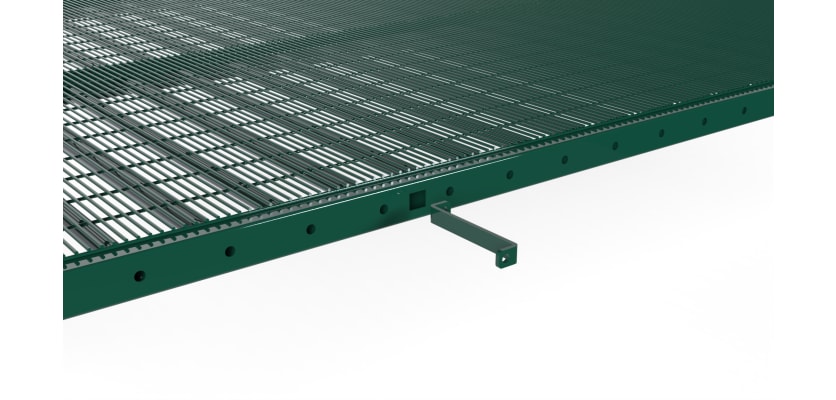

- Security mesh: 358 high-tensile anti-climb mesh, welded to the panel interior
- Finish: Pre-galvanised steel
Applications
The increased 2.0m height provides an added visual and physical deterrent, making this system ideal for:
- Utility compounds and infrastructure sites
- Logistics hubs and depots
- Industrial and commercial facilities
- Public sector or sensitive areas needing enhanced protection
For a fully certified perimeter, pair this kit with EnviroProtect® Anti-Climb gates, available in single and double leaf options for consistent integration.
Get in Touch
Ready to secure your perimeter with a superior solution? For technical data sheets, quotations, and expert advice on the EnviroProtect® Anti-Climb system, contact our team. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect with us via Live Chat on our website.
Specifications & Downloads
| Installed Height | 2000mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 2000mm] [Dig In: 2700mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 64.5kg] [Dig In: 66.5kg] |

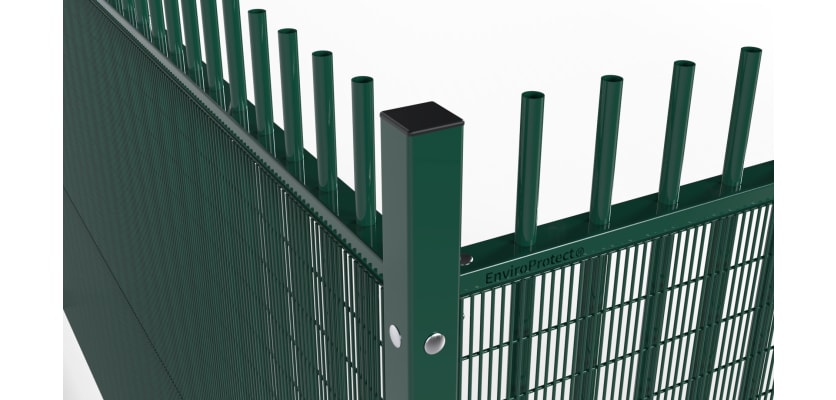

| Box Section of Posts | 60mm x 60mm |

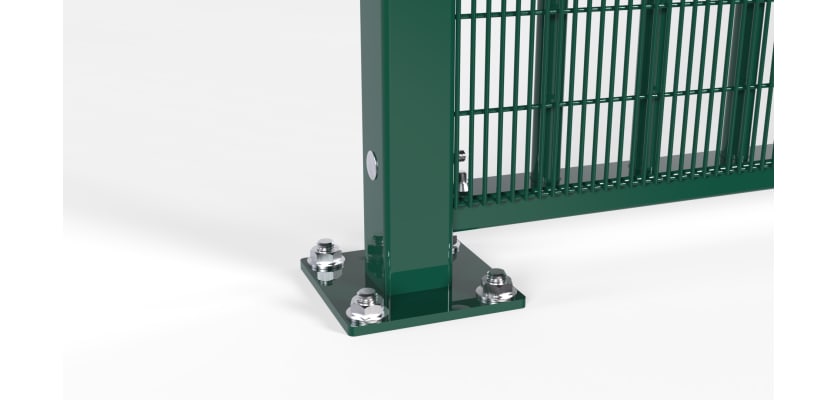

| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panel | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |

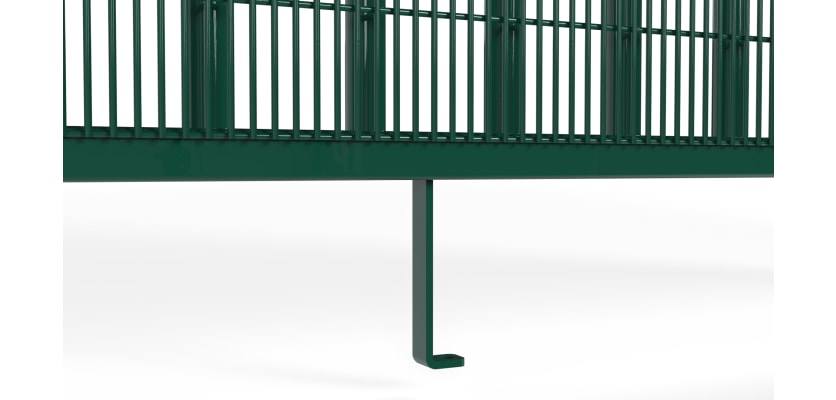

| Support Legs | 1 |
| M10 x 80mm Bolts | 3 |
| M10 x 45mm Bolts | 6 |
| M10 Shear Nuts | 9 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
Specifications & Downloads
| Installed Height | 2000mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 2000mm] [Dig In: 2700mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 64.5kg] [Dig In: 66.5kg] |
| Box Section of Posts | 60mm x 60mm |
| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panel | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |
| Support Legs | 1 |
| M10 x 80mm Bolts | 3 |
| M10 x 45mm Bolts | 6 |
| M10 Shear Nuts | 9 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
