2.4m High x 5.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
Product Description

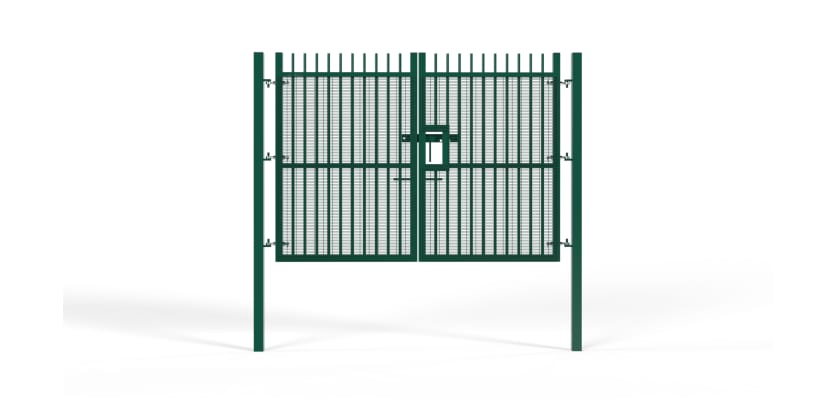

2.4m High x 5.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Double Leaf Gate Kit
When securing large vehicle entrances, the 5.0m wide, 2.4m high EnviroProtect® Anti-Climb Double Leaf Gate delivers uncompromising protection. Its combination of imposing height, extra-wide clearance, and welded 358 ‘prison mesh’ infill makes it the go-to choice for HGV and heavy plant access control. Fully tested to LPS 1175 A1 (SR1) and supported by robust 100x100mm hinge posts, this gate is built to withstand frequent use while maintaining long-term reliability in high-risk environments.
Certified Dual-Layer Security
Independently certified to LPS 1175 A1 (SR1), this gate provides proven resistance against a one-minute forced entry attempt using basic hand tools. That assurance of tested security is strengthened by the anti-climb 358 mesh, a highly secure infill with no hand or footholds and excellent resistance to cutting, ensuring the perimeter remains secure against both climbing and physical attacks.
Built for Strength and Stability
This gate is designed with a low-weld frame for additional strength and reduced weak points. The dual 60x60mm leaf frames are reinforced by the 358 mesh and anchored by heavy-duty 100x100x3mm hinge posts, specifically engineered to manage the leverage of a 5.0m span. This ensures the gate remains stable, preventing sagging or alignment issues over time.
Technical Details
- Height: 2.4m (2400mm)
- Clear access width: 5.0m (5000mm)
- Total installed width: 5430mm
- Leaf frames: 60x60mm with 358 mesh infill
- Hinge posts: 100x100x3mm heavy-duty posts
- Finish: Pre-Galvanised and Powder Coated Finish
Flexible Installation Options
The kit includes posts for both installation types:
- Bolt-down (2400mm): For fixing to concrete or other hardstanding surfaces.
- Dig-in (3100mm): For use with new concrete foundations to achieve maximum anchorage.
Applications

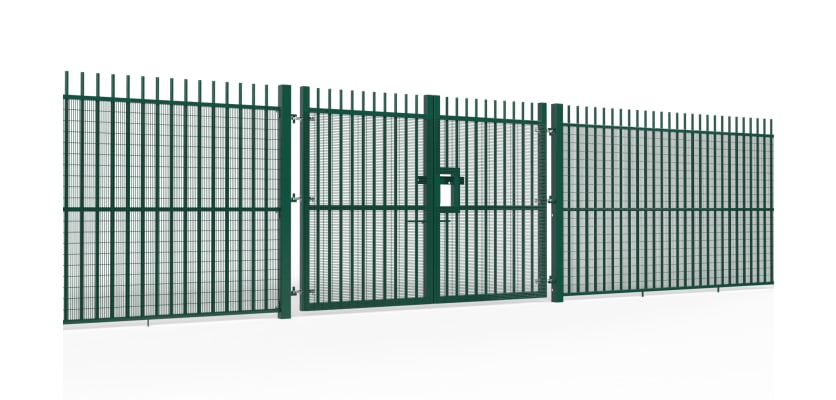

With its extended width and certified security, this double gate is the ideal solution for main access points at logistics hubs, depots, manufacturing plants, and industrial estates. Its design integrates seamlessly with the 2.4m EnviroProtect® Anti-Climb fencing system, creating a consistent, high-security perimeter.
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Gate Leaf | 2 |
| Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
