2.4m High x 1.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit
| Height | 2400mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1290mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Anti-Climb Sliding Gate Leaf | 1 |
| Catch Gate Post | 1 |
| Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
2.4m High x 1.0m Wide EnviroProtect® Anti-Climb SR1 (A1) LPS 1175 Single Leaf Gate Kit

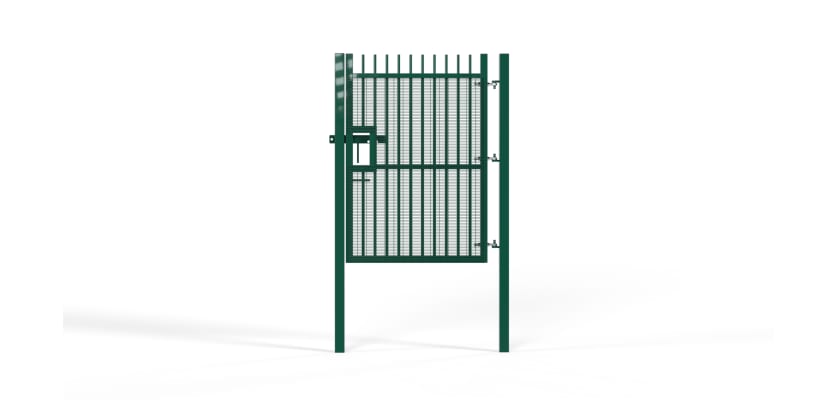

When maximum security is non-negotiable, this 2.4m tall EnviroProtect® Anti-Climb Single Leaf Gate provides the ultimate pedestrian access solution. Its imposing height, paired with a fully welded 358 ‘prison mesh’ infill, delivers an extremely effective barrier against climbing and cutting attempts. Independently tested and certified to LPS 1175 A1(SR1), this gate is designed to safeguard high-risk environments such as data centres, government facilities, and utility compounds.
Dual-Layered Security: Certified & Impenetrable
Backed by LPS 1175 A1(SR1) accreditation, this gate resists forced entry with common tools. Its dense 358 mesh infill further strengthens its defences, making it unclimbable and highly resistant to cutting equipment. Together, these features ensure reliable protection against multiple intrusion tactics.
Built for Strength and Longevity

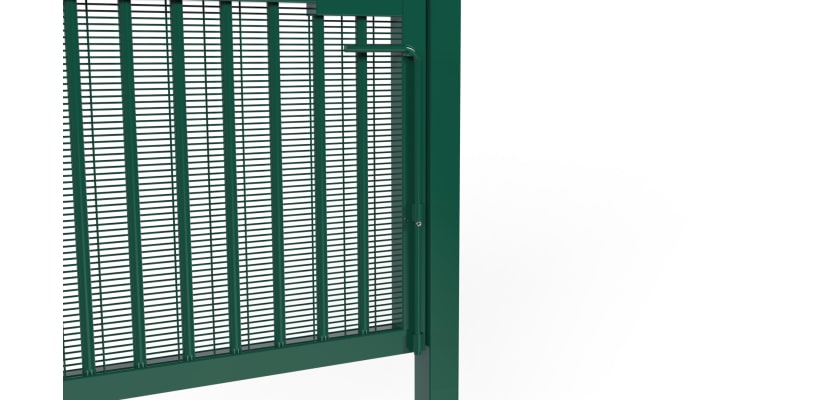

The gate leaf is manufactured from a durable 60x60mm box section frame with the 358 mesh fully welded in place, forming a strong and rigid structure. Every component is pre-galvanised to provide exceptional corrosion resistance, ensuring minimal maintenance even in exposed or demanding locations.
Technical Specification
- Height: 2.4m (2400mm)
- Clear access width: 1.0m (1000mm)
- Overall installed width: 1290mm
- Gate leaf: 60x60mm box section with 358 mesh infill
- Posts: 80x80x3mm hinge and catch posts
- Finish: Pre-galvanised steel
Flexible Installation Options

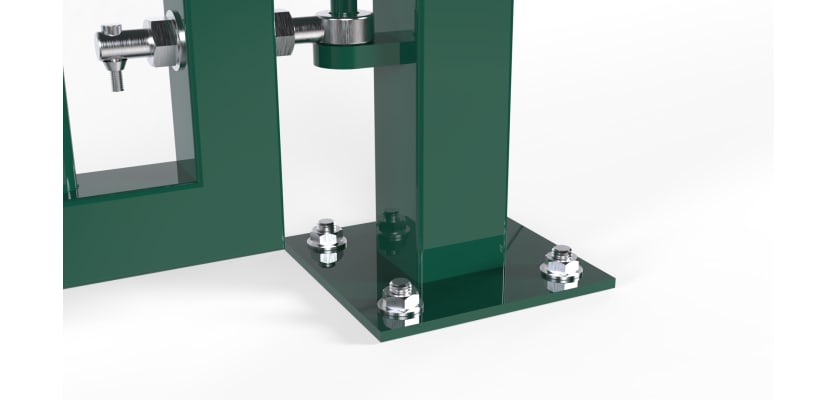

Supplied with both Bolt-Down posts (2400mm length) for fitting to existing concrete and Dig-In posts (3100mm length) for setting into new foundations, this kit allows for a secure installation on any type of site.
Applications and Integration

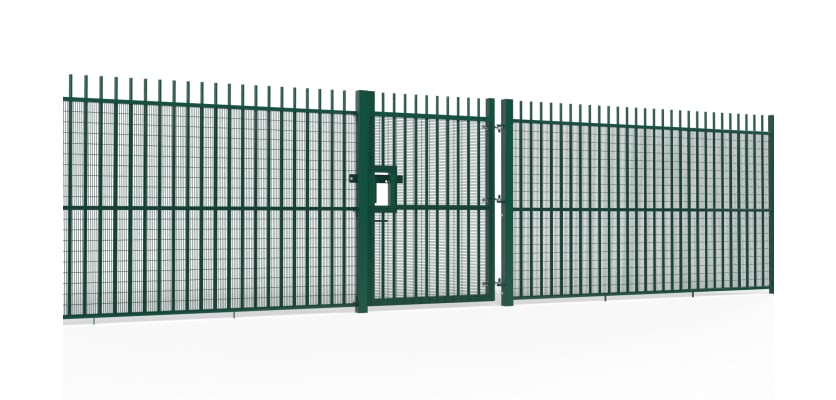

At 2.4m high, this gate offers a powerful visual and physical deterrent, making it ideal for controlled pedestrian access at MOD sites, research labs, substations, and other high-security perimeters. It is designed to integrate seamlessly with the matching 2.4m EnviroProtect® Anti-Climb railing system.
