3.0m High x 5.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Product Description

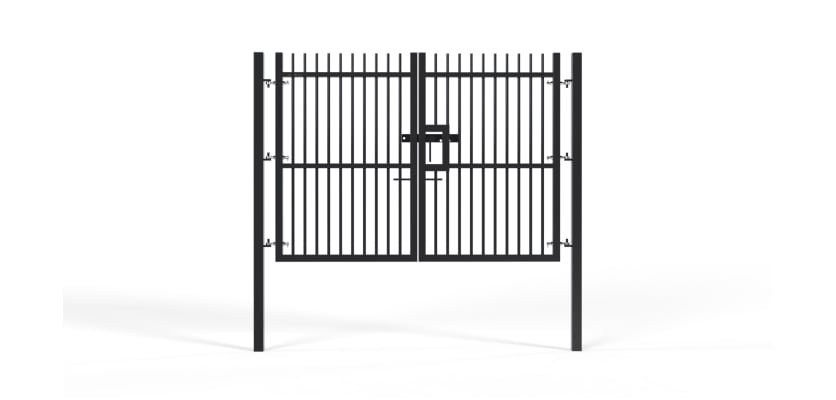

3.0m High x 5.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
The 5.0m wide, 3.0m high EnviroProtect® Double Leaf Gate is the ultimate security solution for protecting major access routes at the highest-risk locations. This system combines our maximum height with an expansive width, making it ideal for controlling access for HGVs and other large vehicles. It is fully certified to LPS 1175 A1(SR1) and is engineered with heavy-duty, 100x100mm hinge posts to ensure smooth operation and long-term durability, making it the perfect choice for national infrastructure and high-security logistics centres.

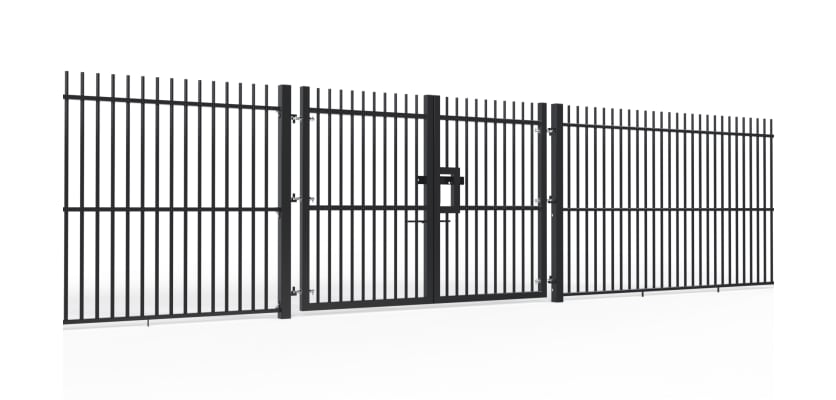

Designed to complement our EnviroProtect fencing, the gates provide full compatibility for a secure and consistent finish.
Understanding A1(SR1) Rated Security Railings
The LPS 1175 A1(SR1) certification is your assurance of a tested and certified security product. It confirms the gate’s ability to resist a determined physical attack for a minimum of 60 seconds, offering a level of protection that meets the stringent requirements of government and commercial sites where security is paramount.
Innovative Low to No Weld Construction
This gate's incredible durability stems from its modern, low-weld design. By engineering out the vulnerable welded joints found on traditional gates, we have created a product that offers unparalleled resistance to corrosion. This means a longer, maintenance-free life and a lower total cost of ownership for your security investment.
Technical Specification and Design

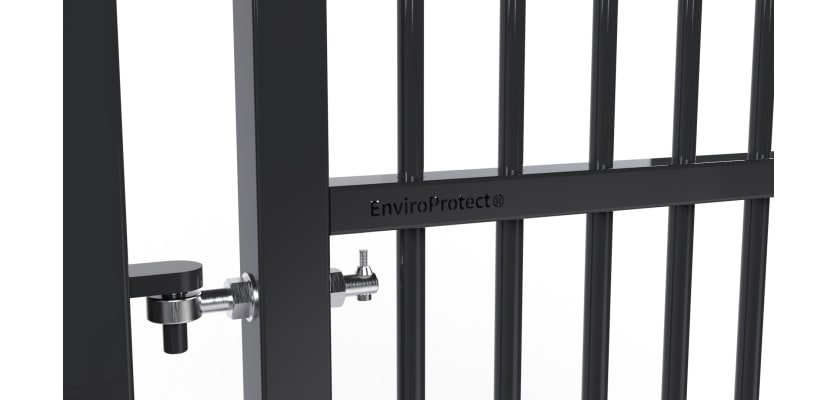

This gate is engineered to secure wide openings effectively. It provides a 3.0-metre certified height and a vast 5000mm clear access width, with a total footprint of 5430mm. The two 60x60mm steel box section leaves are supported by heavy-duty 100x100x3mm hinge posts to prevent sagging and ensure durability. The gate is constructed from high quality pre-galvanised steel, protected by a Polyester Powder Coated finish as standard.
Installation Options
To provide a rock-solid foundation for this flagship gate, the kit includes posts for both bolt-down and dig-in installations. You will receive 3000mm base-plated posts for solid surfaces and 3700mm extended posts for creating a new concrete footing, offering flexibility for any site condition.
Benefits and Applications
With its expansive width, maximum height, and certified security, this gate is the ultimate choice for securing primary entrances at major logistics hubs, distribution centres, and critical industrial parks where a top-tier security perimeter is essential for protecting high-value assets.
Get in Touch
Let us help you specify the right gate for your project. For a free, no-obligation quotation, please call our team on 01283 512 111 or email your requirements to sales@firstfence.co.uk. You can also speak to a specialist directly using our website's Live Chat service.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 5000mm |
| Total Width | 5430mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors [Bolt Down] | 8 |
