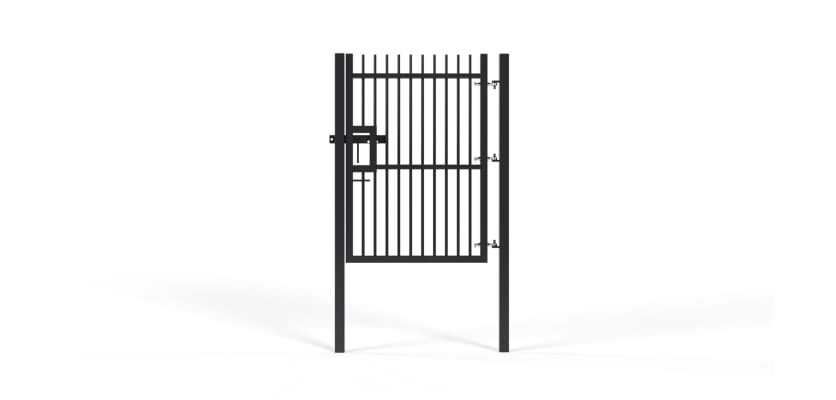

3.0m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Product Description
3.0m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
The 3.0m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Gate Kit is a premium high-security access solution designed for sites requiring wide entry combined with certified protection. Tested to LPS 1175 SR1 (A1) standards, this gate delivers verified resistance against opportunistic attacks using basic tools, ensuring reliable and trusted perimeter security. Constructed from robust steel with a railing infill, it balances strength, durability, and visibility, making it an ideal choice for commercial, industrial, educational, and public sector facilities.
Key Features
Certified Security: Tested to LPS 1175 SR1 (A1) for verified resistance against opportunistic intrusion attempts.
Wide Access: 3.0m clear width accommodates larger vehicles, equipment, or high pedestrian traffic.
Height: 3.0m for secure perimeter control without compromising visibility.
Construction: Strong steel frame with durable railing infill for long-lasting performance.
Finish: Pre-galvanised for corrosion resistance, with optional powder coating for a tailored appearance.
Complete Kit: Includes gate frame, railing infill panel, heavy-duty hinges, and secure locking system.

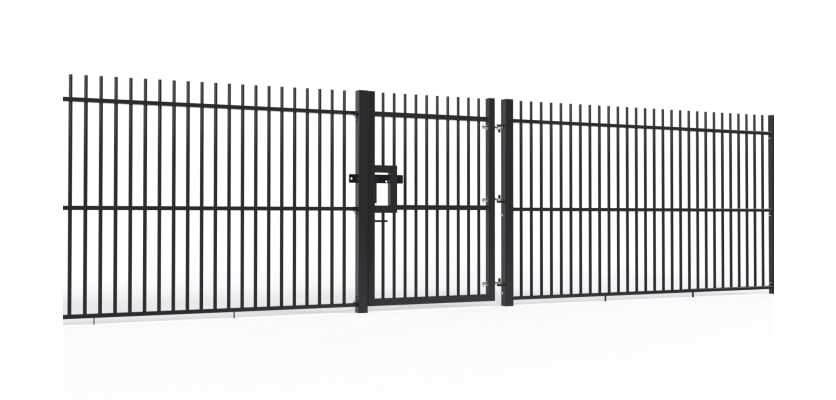

Compatibility: Fully integrates with EnviroProtect® railing systems for a seamless perimeter solution.
Applications
This gate is perfectly suited to a range of demanding environments. At industrial estates and warehouses, it provides secure access for vehicles, machinery, and staff. On educational sites, it ensures controlled pedestrian and service vehicle access while maintaining perimeter security. Utility sites, public facilities, and infrastructure locations benefit from its combination of height, width, and certified security, making it ideal for areas where both frequent access and strong protection are required.
Installation Guidance
The gate kit is designed for straightforward installation and is supplied with everything needed, including the frame, railing infill, hinges, and locking system. It is compatible with EnviroProtect® railing systems, ensuring a continuous secure perimeter. Pre-galvanised finishes reduce maintenance requirements, and optional powder coating allows the gate to match site aesthetics. Installers can choose between bolt-down or dig-in post options depending on the site’s surface and requirements.
Get in Touch
Our team of security fencing specialists can help you specify the right solution for your project. For a free, no-obligation quotation, call us on 01283 512 111 or email sales@firstfence.co.uk. You can also use the Live Chat feature on our website to speak directly with a specialist for guidance and support.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3330mm |

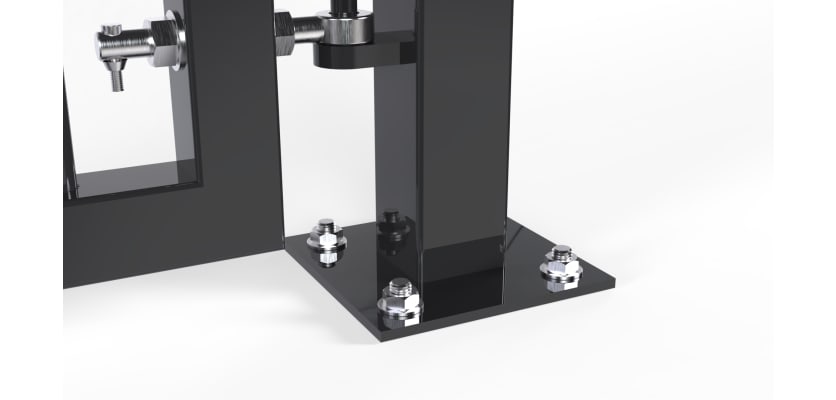

| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 120mmx120mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 3 |
| M10 x 140mm Bolts | 3 |
| 120x120mm Ribbed Inserts | 1 |
| 80x80mm Ribbed Inserts | 1 |
| Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3330mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 120mmx120mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 3 |
| M10 x 140mm Bolts | 3 |
| 120x120mm Ribbed Inserts | 1 |
| 80x80mm Ribbed Inserts | 1 |
| Drop Bolt | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
