3.0m High EnviroProtect® SR1 (A1) LPS 1175 Vertical Bar Railing Kit
| Installed Height | 3000mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 3000mm] [Dig In: 3700mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 91.88kg] [Dig In: 94.9kg] |
| Box Section of Posts | 60mm x 60mm |
| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panel | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |
| Support Leg | 1 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M10 x 45mm Bolts | 6 |
| M10 x 80mm Bolts | 3 |
| M10 Shear Nuts | 9 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |

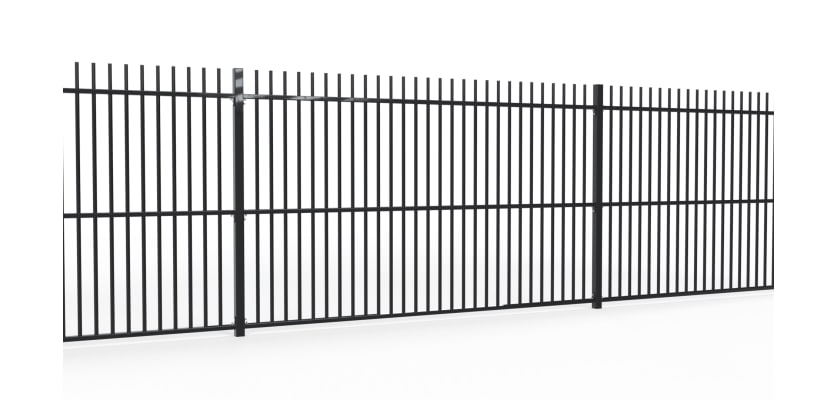

EnviroProtect® SR1 (A1) 3.0m LPS 1175 Vertical Bar Railing Kit
The EnviroProtect® SR1 (A1) 3.0m Vertical Bar Railing Kit from First Fence delivers reliable perimeter protection for sites where robust security is essential. Independently tested and approved to the LPS 1175 SR1 (A1) standard, this fencing system combines proven resistance with a professional, streamlined appearance, making it suitable for critical and high-risk environments.
LPS 1175 SR1 (A1) Certified Security
Tested to withstand at least one minute of attack from Category A hand tools such as screwdrivers, pliers, and bolt cutters, the SR1 (A1) certification ensures dependable resistance to opportunistic intrusion attempts. At 3.0m tall, the system not only delays forced entry but also provides an imposing visual and physical barrier.
Advanced Low-Weld Design
Unlike traditional welded fencing, the EnviroProtect® system utilises a low-weld approach with precision-engineered components fixed mechanically. This design reduces heat-affected areas, improving both strength and corrosion resistance while also ensuring consistent build quality. The result is a fence line that offers long-term durability with reduced weak points.
Technical Details
- Panel width: 2900mm (2960mm including posts)
- Height: 3.0m
- Vertical bars: 25.4mm tubular steel, 100mm centre-to-centre spacing
- Material: Pre-galvanised steel to BS EN 10346 standard
These specifications ensure excellent resilience against environmental exposure while maintaining visibility across secured areas.
Flexible Installation Options
The kit is available with two mounting choices to suit site conditions:
- Bolt-down posts for hardstanding or concrete
- Dig-in posts for softer ground where additional anchoring strength is required
Where to Use
The EnviroProtect® SR1 (A1) 3.0m kit is particularly well-suited for:
- Utilities and energy facilities
- Airports, rail networks, and transport hubs
- Secure commercial or industrial premises
- Any site requiring maximum deterrence and SR1 (A1) certified protection
