3.0m High x 2.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Product Description

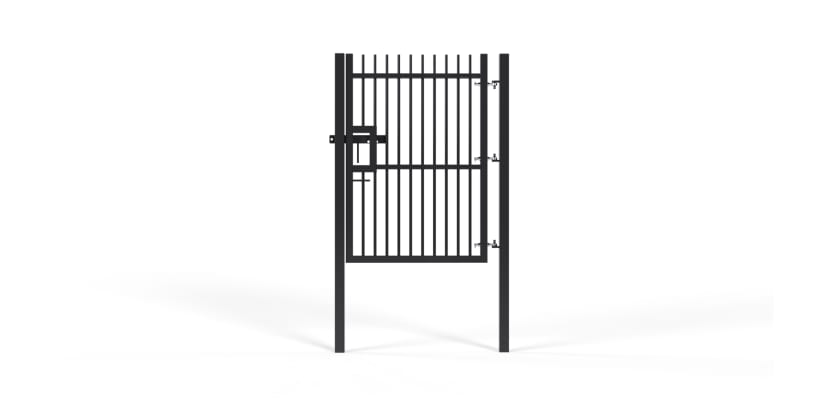

3.0m High x 2.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Gate Kit
Secure your vehicle access points with our highest-level security solution: the 3.0m high, 2.0m wide EnviroProtect® gate kit. This gate’s towering 3.0m height delivers the ultimate anti-climb deterrent, while its 2.0m width provides practical access for service and maintenance vehicles. Fully certified to LPS 1175 A1(SR1) and equipped with an uprated, heavy-duty hinge post, this gate is engineered to provide flawless, secure operation even in the most demanding environments, making it the clear choice for protecting critical assets.

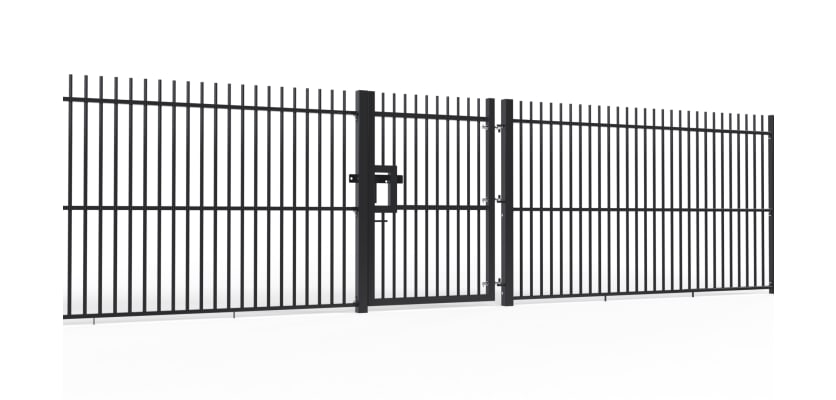

This gate is the premier choice for securing vehicle entrances at the highest-risk locations. Its commanding height and certified strength make it ideal for protecting data centres, power stations, MOD establishments, and other critical infrastructure where robust security is non-negotiable. Designed for straightforward installation, the 3.0m High x 2.0m Wide EnviroProtect® SR1 Railing Gate Kit works in full compatibility with our EnviroProtect® 3.0m railing systems.
Understanding A1(SR1) Rated Security Railings
The LPS 1175 A1(SR1) certification is your guarantee of proven performance. It confirms the gate has withstood rigorous physical attack tests, proving its ability to delay an intruder for a critical period. This level of tested security is essential for sites where a breach could have serious consequences.
Innovative Low to No Weld Construction
Engineered for maximum endurance, the gate's low-weld construction provides a clear advantage over traditionally welded products. By eliminating the points where rust typically forms, the design ensures superior structural integrity and corrosion resistance, leading to a significantly longer operational life with far less maintenance.
Technical Specification and Design
This gate is specified for maximum security vehicle access. It has a certified height of 3.0 metres, a clear access width of 2000mm, and a total overall width of 2330mm. The leaf is made from a 60x60mm steel box section. To support the large leaf, it includes a heavy-duty 100x100x3mm hinge post and a robust 80x80x3mm catch post. This gate is made from pre-galvanised steel and then powder coated with a standard RAL colour of your choice.
Installation Options

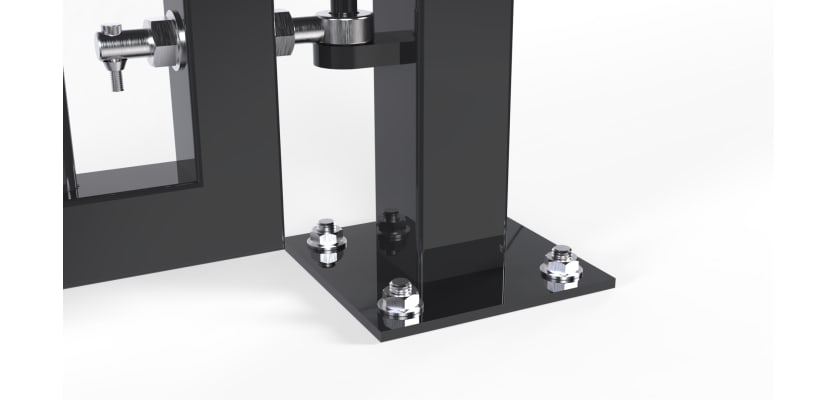

This kit is supplied with posts to ensure a secure installation on any site. It includes 3000mm base-plated posts for bolting down onto concrete and extended 3700mm posts for creating a deep and secure foundation in soft ground, providing total stability for this substantial gate.
Get in Touch
Discuss your vehicle access requirements with our team today for guidance and a comprehensive quote. You can contact us by telephone on 01283 512 111 or send your enquiry via email to sales@firstfence.co.uk. Our team is also available on Live Chat through our website.
Specifications & Downloads
| Height | 3000mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2330mm |
| Total Post Length | 3000mm [Bolt Down], 3700mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 100x100mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 3 |
| M10 x 120mm Bolts | 3 |

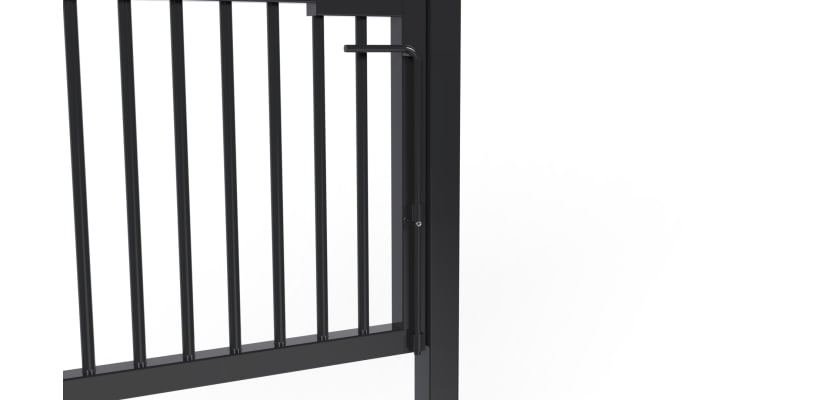

| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 1 |
| 100x100mm Ribbed Inserts | 1 |
| Ground Anchors [Bolt Down Only] | 8 |
