2.4m High x 2.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Product Description
2.4m High x 2.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Gate Kit

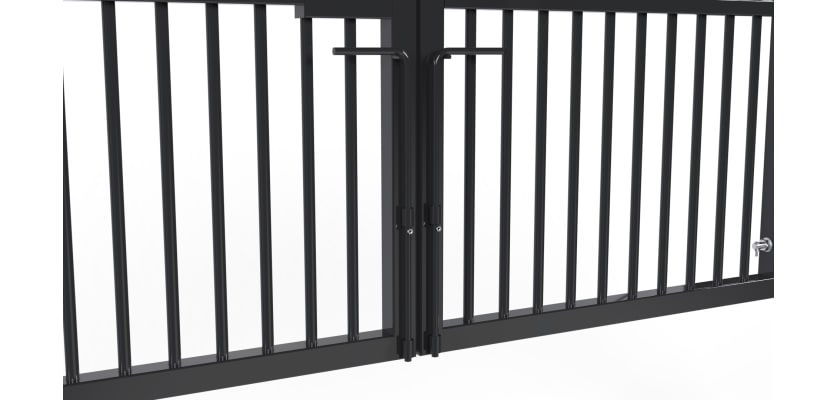

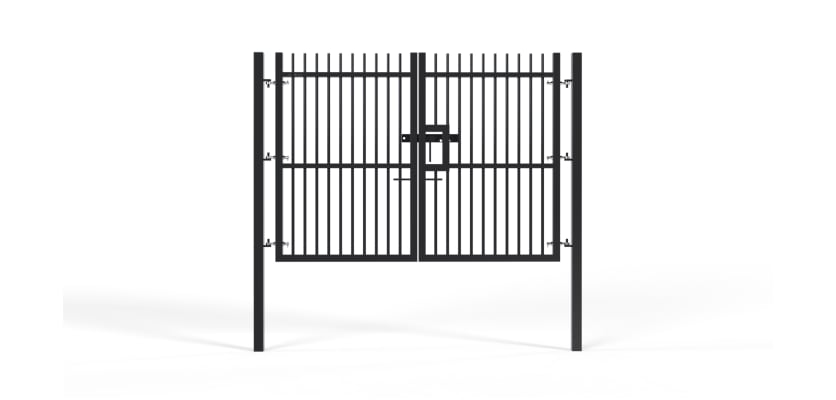

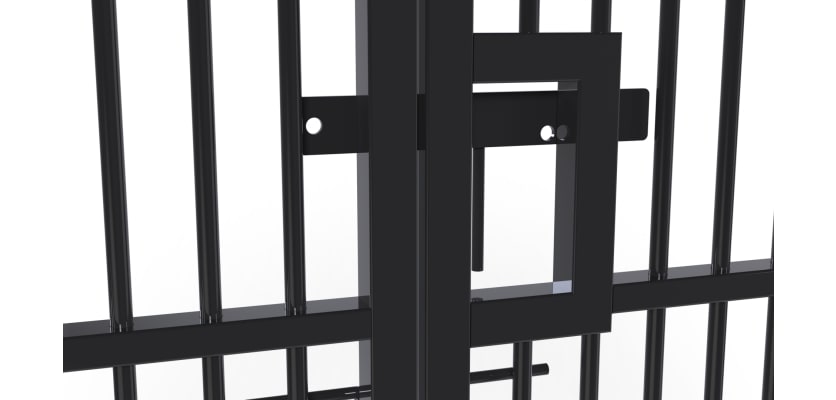

The 2.4m high x 2.0m wide EnviroProtect® Double Leaf Gate Kit is purpose-built for sites that demand the strongest perimeter protection. With its imposing 2.4-metre anti-climb height and twin-leaf design, it combines robust certified security with practical access control for wider personnel routes or small vehicle entrances. Independently tested to LPS 1175 A1 (SR1) and built with our innovative low-weld system, this gate provides long-lasting, low-maintenance security in even the most demanding environments.

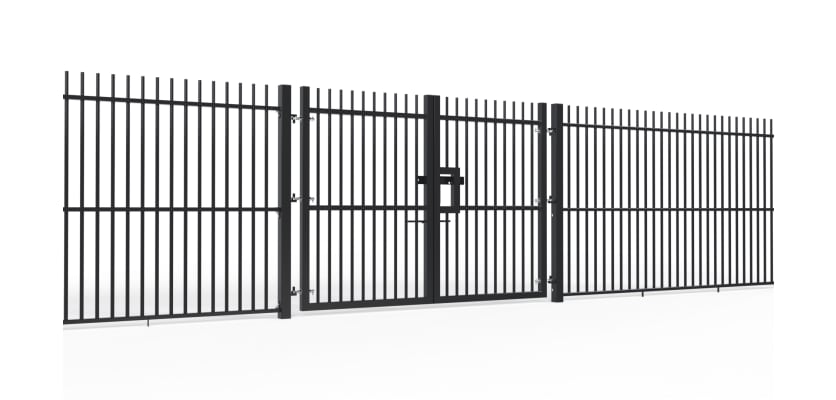

Our EnviroProtect gates are designed to integrate seamlessly with EnviroProtect fencing systems, ensuring consistent strength, security, and appearance across the entire perimeter.
Proven SR1 Certified Security
Accredited to LPS 1175 A1 (SR1), this gate has passed stringent independent testing to prove its ability to withstand a sustained 60-second attack using hand tools. This recognised certification delivers confidence that your perimeter is properly protected and provides compliance for insurance and security-critical sites.
Low-to-No Weld Engineering
The EnviroProtect® system is designed for strength and durability, using mechanical fixings in place of traditional welds—the points most prone to corrosion. This forward-thinking approach ensures a longer service life, reduced maintenance needs, and a lower lifetime cost of ownership, while also improving resilience against both intrusion and the elements. As standard, the gate is pre-galvanised steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Technical Specification
- Height: 2.4m (certified)
- Clear access width: 2000mm
- Overall width (inc. posts): 2430mm
- Frame: 60 x 60mm steel box section

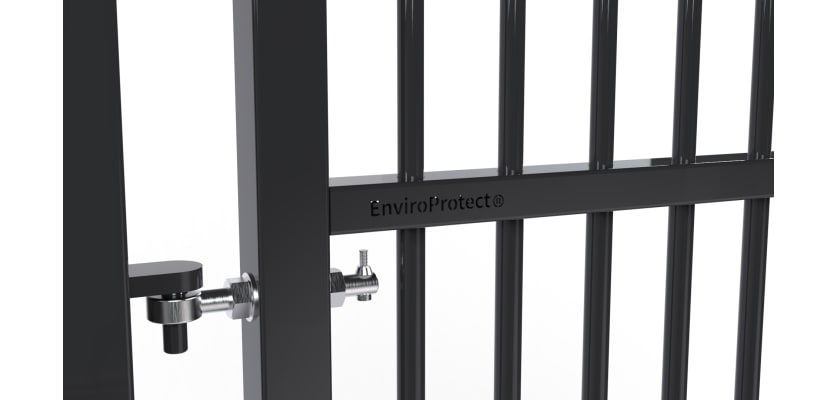

- Hinge posts: 80 x 80 x 3mm heavy-duty steel
- Finish: Pre-galvanised steel
Installation Options
The kit includes posts for both primary installation types:
2400mm base-plated posts – for bolt-down fitting to an existing hard surface
3100mm dig-in posts – for creating a new, concrete-set foundation
Applications
With its increased 2.4m height and LPS 1175 certification, this gate is ideally suited to:
- Utility substations
- Data centres
- Secure industrial compounds
- Transport and logistics depots
Its taller design delivers both a strong visual deterrent and a certified physical barrier to protect critical assets.
Get in Touch
For expert advice, a detailed quotation, or to discuss your specific site requirements, please contact our security specialists. We are here to help you specify the perfect solution for your perimeter. You can reach us by phone on 01283 512 111 or by emailing us at sales@firstfence.co.uk. You can also connect via our live chat service.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2430mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 2 |
| 80x80mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 2 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors | 8 |
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 2000mm |
| Total Width | 2430mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 2 |
| 80x80mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 100mm Bolts | 6 |
| Drop Bolt | 2 |
| 80x80mm Ribbed Inserts | 2 |
| M16 x 125mm Ground Anchors | 8 |
