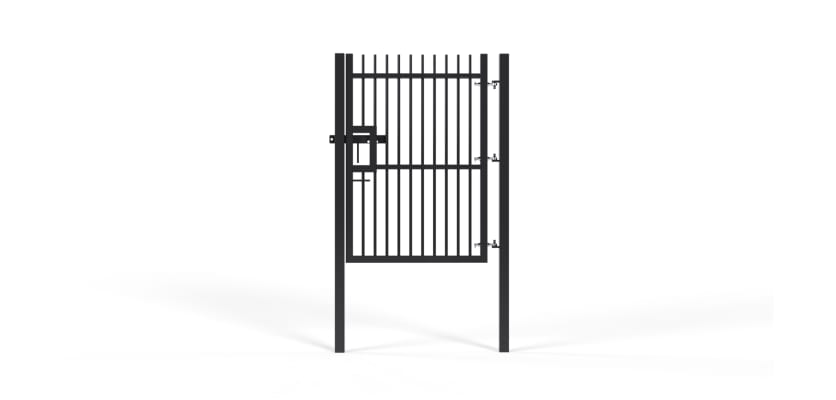

2.4m High x 1.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Gate Railing Kit
Product Description
2.4m High x 1.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Presenting a formidable barrier for high-security locations, the 2.4-metre high EnviroProtect® Single Leaf Gate Kit is designed for ultimate perimeter control. This pedestrian gate, with its significant height, offers a powerful anti-climb deterrent, making it an excellent choice for sites where security cannot be compromised. The combination of its imposing stature and the trusted LPS 1175 A1(SR1) certification ensures that your most sensitive pedestrian access points are robustly protected. Engineered with our innovative low-weld construction, this gate guarantees exceptional durability and a long service life with minimal maintenance.

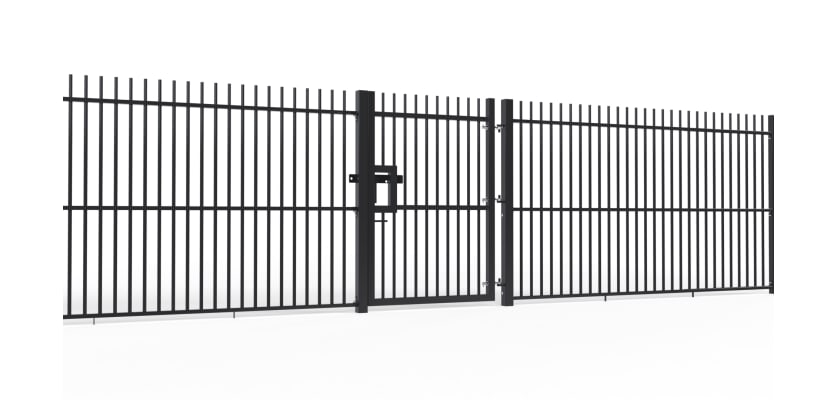

The 2.4m High x 1.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Gate Kit is fully compatible with our 2.4m high EnviroProtect® railings, ensuring a seamless and secure perimeter solution.
This gate is a standard choice for protecting high-value assets and critical sites, including utility substations, data centres, transport depots, and secure industrial compounds where pedestrian access must be carefully managed.
Understanding A1(SR1) Rated Security Railings
The LPS 1175 A1(SR1) certification provides verifiable proof of this gate's resilience. To achieve this standard, the gate has undergone rigorous independent testing to ensure it can withstand a one-minute attack by an individual using common hand tools. This certified delay is crucial for deterring intruders and protecting critical infrastructure, offering you peace of mind that your perimeter is secure.
Innovative Low to No Weld Construction
At the heart of the EnviroProtect® system is its advanced low to no weld design. This modern construction method eliminates the traditional weak points of a gate—the welded joints—which are often the first to fail due to corrosion. By using high-strength mechanical fastenings instead, we create a gate that is inherently stronger, more durable, and vastly more resistant to the elements, ensuring a lasting, high-quality finish.
Technical Specification and Design
This high-security gate is specified to the highest standards. It stands at a certified height of 2.4 metres and provides a clear pedestrian access width of 1000mm, with a total overall width of 1290mm for planning. The gate leaf is constructed from a substantial 60x60mm steel box section frame. It is supported by robust 80x80x3mm box section steel posts for both the hinge and catch sides. For maximum durability, the gate is pre-galvanised and then further protected and customised with an polyester powder coating in a range of colours.
Installation Options
This kit provides complete installation flexibility to suit any project. It is supplied with two post options: 2400mm long base-plated posts for bolting down onto existing concrete or steelwork, and 3100mm long posts for digging in and setting into a new concrete foundation for maximum stability.
Get in Touch
For expert advice, a detailed quotation, or to discuss your specific site requirements, please contact our security specialists. We are here to help you specify the perfect solution for your perimeter. You can reach us by phone on 01283 512 111, by email at sales@firstfence.co.uk,
Specifications & Downloads
| Height | 2400mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1290mm |
| Total Post Length | 2400mm [Bolt Down], 3100mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Gate Hanging Side | Universally Handed |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 80x80mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 Shear Nuts | 6 |
| M10 X 100mm Bolts | 6 |
| Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
