2.4m High EnviroProtect® SR1 (A1) LPS 1175 Vertical Bar Railing Kit
Product Description

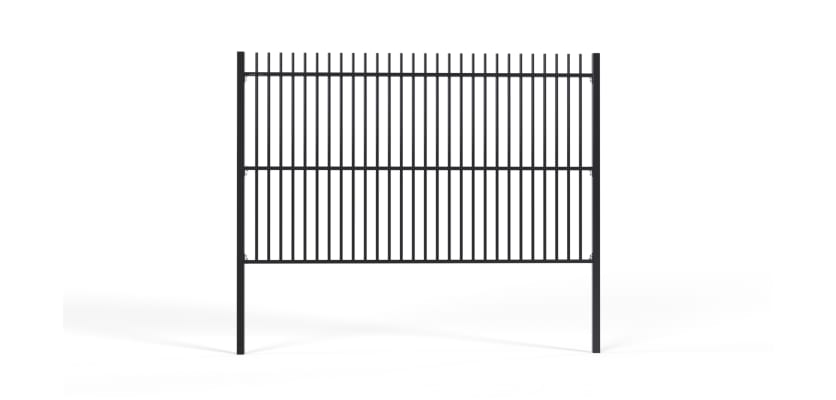

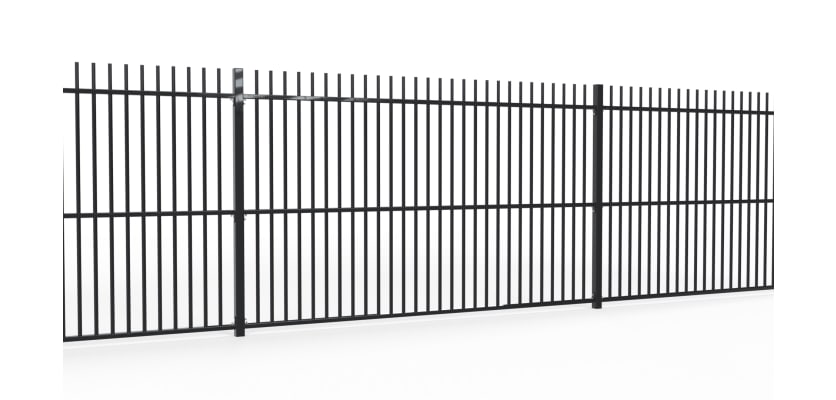

EnviroProtect® SR1 (A1) 2.4m High Vertical Bar Railing System: LPS 1175 Certified
First Fence supplies the EnviroProtect® SR1 (A1) 2.4m High Vertical Bar Railing System, a high-security fencing solution engineered to meet stringent LPS 1175 standards. Designed for locations that demand maximum physical protection, this robust system combines durability, certified performance, and clean design.
Certified LPS 1175 SR1 (A1) Security
Tested and approved to the LPS 1175 SR1 (A1) standard, this fencing system provides resistance against forced entry using common handheld tools such as pliers, cable cutters, and screwdrivers for at least one minute. This rating makes it a reliable choice for environments where delaying unauthorised access is critical. The 2.4m height serves as a powerful visual and physical deterrent against intruders.
Innovative Low-Weld Construction
Part of the advanced EnviroProtect® range, this fencing system utilises a low-weld design, favouring mechanical connections over traditional welds. Precision-cut tubular steel components are assembled with minimal welding to improve both structural and aesthetic qualities.
Key Benefits
- Fewer welded joints reduce weak spots and enhance impact resistance.
- Increased corrosion resistance thanks to reduced heat-affected areas.
- Streamlined assembly and uniform quality for consistent installation results.
- This construction approach delivers a durable fence line with a sleek, unobtrusive look suitable for a range of site aesthetics.
Product Specifications
- Panel width: 2900mm
- Overall width with posts: 2960mm
- Height: 2.4m
- Vertical bars: 25.4mm diameter steel tubes
- Bar spacing: 100mm centre-to-centre
- Material: Pre-galvanised steel (BS EN 10346 standard)
- Built to withstand challenging environments, the materials ensure long-lasting performance and resistance to corrosion.
Flexible Installation Options
Choose between two mounting methods to suit your site:
- Bolt-down: Ideal for installing on concrete.
- Dig-in: Suitable for softer ground, offering enhanced post security.
Ideal For:
- Utility and energy infrastructure
- Industrial estates
- Transportation hubs and airport perimeters
- High-value commercial properties
Get in Touch
Need more details or ready to order? Reach out to First Fence at 01283 512 111 or speak to our team via live chat for tailored support.
Specifications & Downloads
| Installed Height | 2400mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 2400mm] [Dig In: 3200mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 73.5kg] [Dig In: 75.9kg] |
| Box Section of Posts | 60mm x 60mm |
| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panel | 1 |

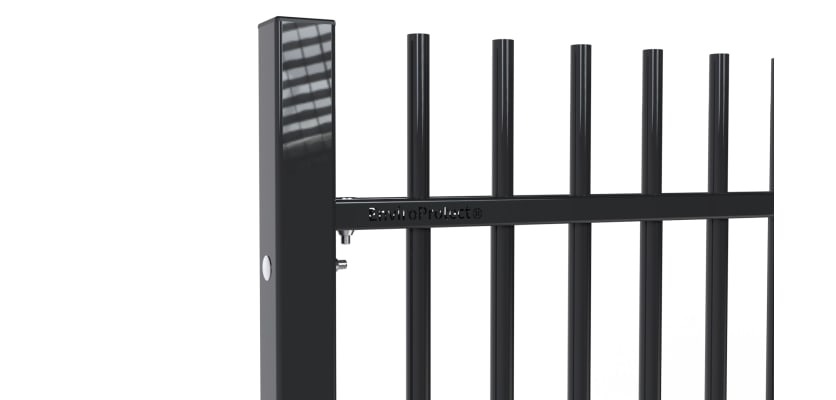

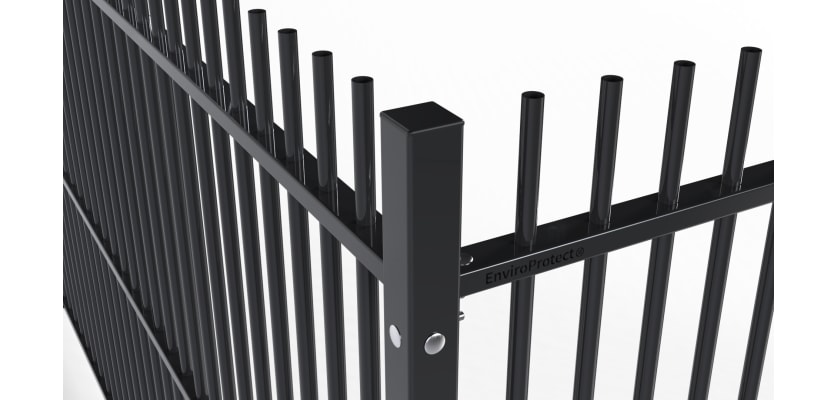

| Railing Post | 1 |
| Large Twist Cleats | 6 |

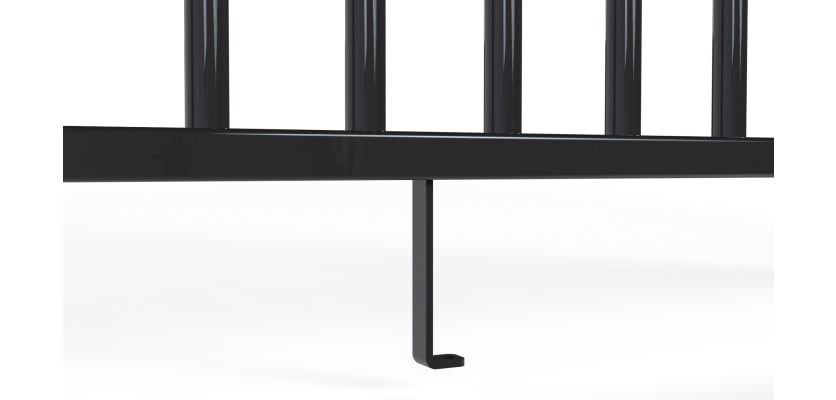

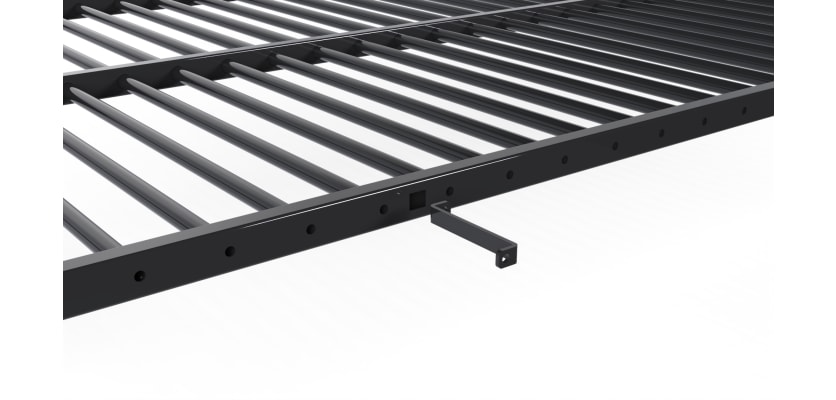

| Support Leg | 1 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M10 x 45mm Bolts | 6 |
| M10 x 80mm Bolts | 3 |
| M10 Shear Nuts | 9 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
Specifications & Downloads
| Installed Height | 2400mm [Above Ground Incl. Clearance] |
| Total Post Length | [Bolt Down: 2400mm] [Dig In: 3200mm] |
| Panel Width | 2900mm |
| Total Width | 2960mm from post centre to post centre |
| Weight | [Bolt Down: 73.5kg] [Dig In: 75.9kg] |
| Box Section of Posts | 60mm x 60mm |
| Base Plate Size | 150mm x 150mm |
| Thickness of Railing Bars | 25.4mm |
| Distance Between Railing Bars | 100mm from bar centre to bar centre |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Polyester Powder Coated (PPC) |
| PPC Colours | Green, Black, Blue, Red, Grey, Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Vertical Bar Railing Panel | 1 |
| Railing Post | 1 |
| Large Twist Cleats | 6 |
| Support Leg | 1 |
| 60mm x 60mm Ribbed Post Insert | 1 |
| M10 x 45mm Bolts | 6 |
| M10 x 80mm Bolts | 3 |
| M10 Shear Nuts | 9 |
| M16 x 125mm Ground Anchors [Bolt Down] | 4 |
