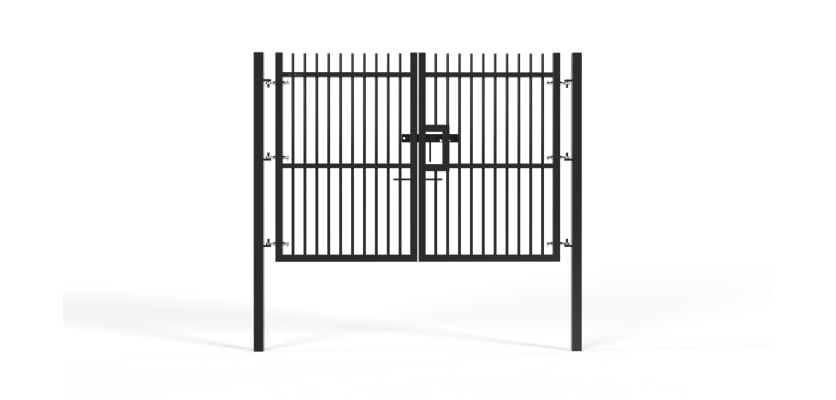

1.8m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Railing Gate Kit
Product Description
1.8m High x 3.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Double Leaf Gate Kit
The EnviroProtect® Double Leaf Gate Kit (3.0m wide x 1.8m high) is engineered for sites needing wider openings without compromising on certified protection. Its twin-leaf design provides a generous 3.0m clear span, making it ideal for light commercial vehicle traffic and high-footfall areas. Fully certified to LPS 1175 A1 (SR1), this gate delivers proven resistance against attack while ensuring smooth, flexible operation.
Proven A1 (SR1) Rated Security
The LPS 1175 A1 (SR1) standard verifies that this gate can withstand a sustained, one-minute attack from hand tools commonly used by opportunistic intruders. This rating gives you confidence that your property is protected by a system tested to perform under real-world conditions.
Built with Low-to-No Weld Technology
Durability is at the heart of the EnviroProtect® range. By replacing welds, typically the weakest points in steel structures, with high-strength mechanical connections, the gate resists corrosion, reduces maintenance, and extends its service life. Combined with a zinc finish and powder coating), this gate is built to last in tough environments.
Technical Details
- Height: 1.8m (certified)
- Clear access width: 3000mm (3.0m)
- Overall width (inc. posts): 3430mm
- Frame: 60 x 60mm steel box section
- Hinge posts: 80 x 80 x 3mm heavy-duty steel

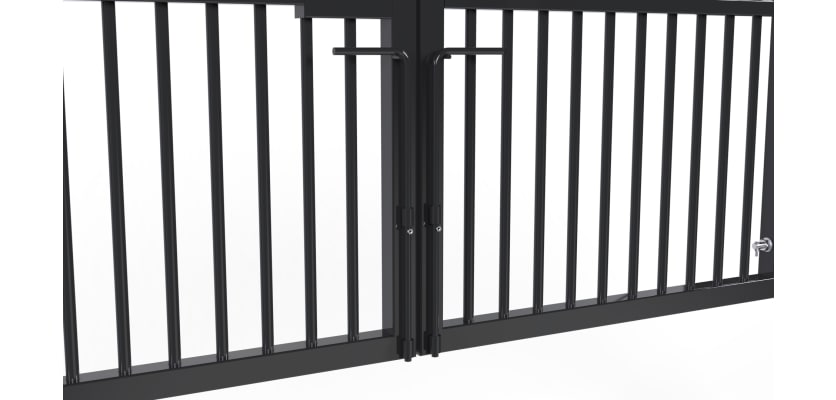

- Leaf operation: one leaf secured with a drop bolt; one active leaf for daily use
- Finish: Pre-galvanised steel
Installation Options
Supplied with posts for both installation methods:
- 2500mm dig-in posts: secure into new concrete foundations
- 1800mm bolt-down posts: install directly onto existing concrete
Benefits & Applications
The double leaf design reduces the swing area needed for each gate leaf, making it practical even in tighter locations. Open one side for pedestrian use or both for vehicles. Perfect for:
- Industrial estates
- School car parks
- Commercial depots
- Service yards
Get in Touch
Ready to secure your site? Contact our team for technical data sheets, quotations, and expert advice. Call us on 01283 512 111, email sales@firstfence.co.uk, or connect with us via Live Chat on our website.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 3000mm |
| Total Width | 3430mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 100x100x3mm [Hinge] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Gate Leaf | 2 |
| 100x100mm Hinge Gate Post | 2 |
| Adjustable Gate Eyes | 6 |
| Large Twist Cleats | 6 |
| M10 Shear Nut | 6 |
| M10 x 120mm Bolts | 6 |
| Drop Bolt | 2 |
| 100x100mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
