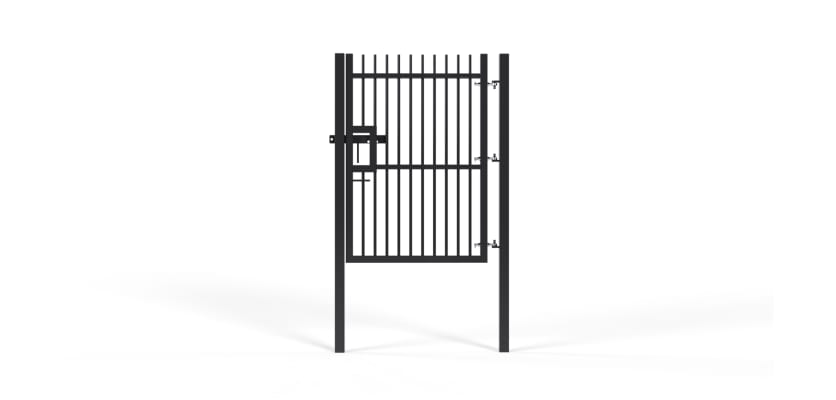

1.8m High x 1.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Product Description
1.8m High x 1.0m Wide EnviroProtect® SR1 (A1) LPS 1175 Single Leaf Railing Gate Kit
Secure your perimeter’s pedestrian access points with the formidable EnviroProtect® Single Leaf Gate Kit. Measuring 1.8 metres high and providing a 1.0-metre clear opening, this all-in-one system is engineered not just for access control, but for certified security. It represents the perfect fusion of strength, advanced design, and longevity, making it an ideal choice for commercial, industrial, and public sector environments where security is paramount. This kit arrives with everything you need for a complete installation, ensuring your site is protected by a solution that is tested, trusted, and built to last. It is designed for seamless integration with our 1.8m high EnviroProtect® SR1 Railing system, creating a continuous and certified perimeter.
Understanding A1(SR1) Rated Security Railings
In the world of physical security, certification is crucial. This gate kit is rigorously tested and certified to LPS 1175 A1 (SR1), a standard issued by the Loss Prevention Certification Board (LPCB). The A1(SR1) rating provides a specific, measurable assurance that the gate can withstand a determined attempt at forced entry by an opportunist attacker for at least 60 seconds. The test simulates an attack using common, easily concealed tools like screwdrivers and pliers. This one-minute delay is a critical window, often sufficient to deter a potential intruder or allow for an on-site response. Choosing an A1(SR1) rated gate means you are installing a security asset with a guaranteed level of resistance.
Innovative Low to No Weld Construction
Moving beyond traditional fabrication, the EnviroProtect® gate features an innovative low to no weld construction. This forward-thinking approach provides significant advantages in durability and longevity. Historically, welded joints are the most common points of failure and corrosion on steel gates. By replacing welds with high-strength mechanical fixings, we effectively design out this inherent weakness. This method results in a product that boasts a significantly longer lifespan, requires far less maintenance, and allows for a faster, more flexible on-site assembly. This modern construction method delivers a cleaner aesthetic and a more resilient, sustainable security solution.
Technical Specification and Design
This gate kit is specified to deliver security without compromise. It stands at a certified height of 1.8 metres, providing a significant physical and visual deterrent, and offers a clear access width of 1000mm, which is ideal for controlled pedestrian access. For installation planning, the total overall width is 1290mm. The gate leaf itself is constructed from a robust 60x60mm steel box section frame, supported by a heavy-duty 80x80x3mm hinge post and a matching 80x80x3mm catch post. As standard, the gate is Pre-Galvanised Steel to BS EN 10346, with the option of a polyester powder coating in a wide range of RAL colours.
Installation Options

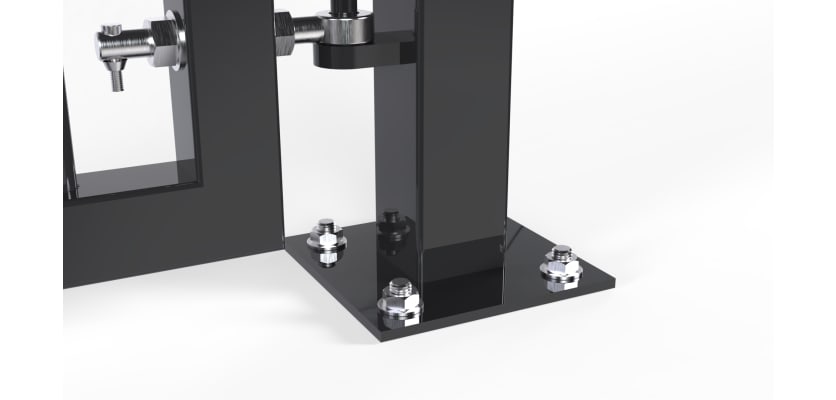

To cater for different ground conditions, this versatile kit is available with two distinct post options. The 'Dig-In' posts, supplied at a total length of 2500mm, are designed to be securely concreted into the ground for the most robust and permanent foundation. Alternatively, the 'Bolt-Down' posts are supplied at 1800mm in length with a base plate, making them perfect for installation onto existing solid surfaces like concrete pads using appropriate anchor fixings.
Benefits and Applications
The combination of certified security and intelligent design makes this gate a versatile solution. Its key benefits include proven resistance against opportunistic attacks, exceptional durability, and minimal maintenance requirements. This makes it ideally suited for securing school perimeter access points, utility compounds, industrial estates, secure staff entrances and fire exits, and retail park service areas. The complete nature of the kit ensures you have all the necessary components for a full and secure installation.
Get in Touch
For expert advice, a detailed quotation, or to discuss your specific site requirements, please contact our security specialists. We are here to help you specify the perfect solution for your perimeter.
- Phone: 01283 512 111
- Email: sales@firstfence.co.uk
- Live Chat: Available on our website during business hours.
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1290mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 80x80mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 x 100mm Bolts | 6 |
| M10 Shear Nuts | 6 |

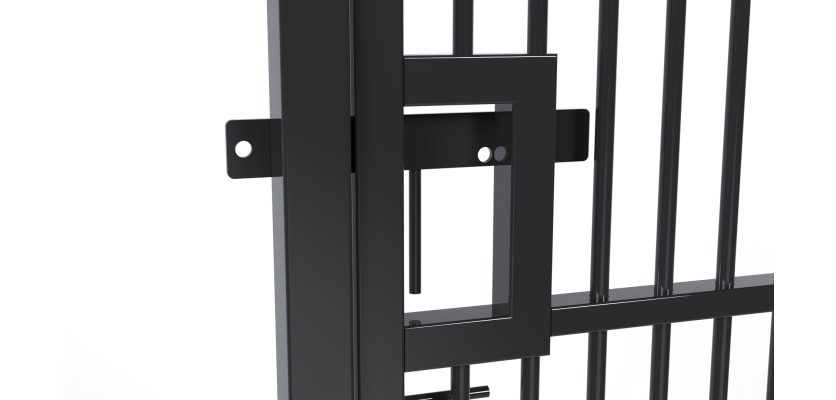

| Universal Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
Specifications & Downloads
| Height | 1800mm [Installed] |
| Access Width | 1000mm |
| Total Width | 1290mm |
| Total Post Length | 1800mm [Bolt Down], 2500mm [Dig In] |
| Box Sections of Posts | 80x80x3mm [Hinge] 80x80x3mm [Catch] |
| Box Section of Gate Leaf | 60x60mm |
| Rail Style | Vertical Bar - Hollow Tubular |
| Post Type | Dig In, Bolt Down |
| Material | Pre-Galvanised Steel to BS EN 10346 |
| Finish | Polyester Powder Coated |
| PPC Colours | Green, Black, Blue, Red, Grey or Yellow |
| Certified To | LPS 1175 SR1 (A1) |
What's Included
| Name | Quantity |
|---|---|
| EnviroProtect® Sliding Gate Leaf | 1 |
| 80x80mm Catch Gate Post | 1 |
| 80x80mm Hinge Gate Post | 1 |
| Adjustable Gate Eyes | 3 |
| Large Twist Cleats | 6 |
| M10 x 100mm Bolts | 6 |
| M10 Shear Nuts | 6 |
| Universal Drop Bolt | 1 |
| 80x80mm Ribbed Inserts | 2 |
| Ground Anchors [Bolt Down Only] | 8 |
