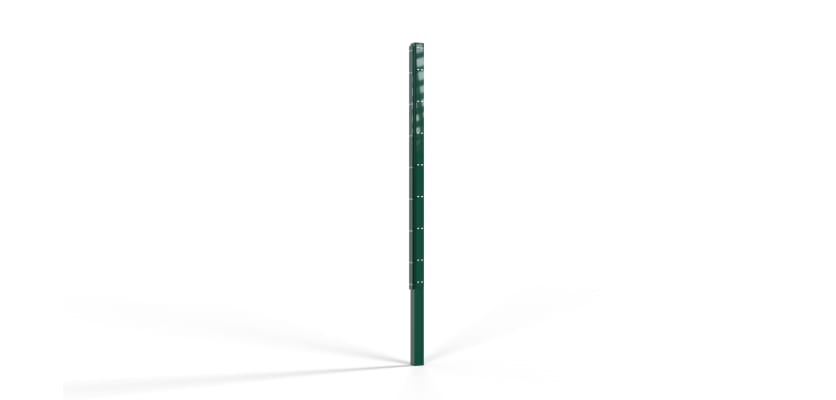

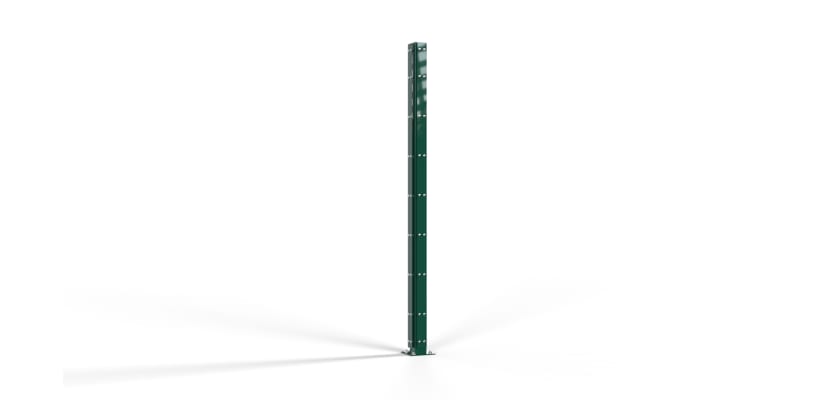

ProFence® 2X SR2 (B3) LPS 1175 2.4m High Corner Post Kit
Product Description
ProFence® 2X SR2 (B3) LPS 1175 2.4m High Corner Post Kit
Certified Security at Fence Line Corners
The ProFence® 2X SR2 (B3) Corner Post Kit is a vital component of the ProFence® 2X system, ensuring strength and certified protection where the fence line changes direction. Designed for use with 2.4m high panels and approved to LPS 1175 Issue 8, Security Rating B3, this kit guarantees that the perimeter’s performance is upheld—even at its most vulnerable points.
Heavy-Duty Steel Construction
Built from 80mm x 80mm galvanised steel box section, the corner post delivers long-lasting durability and structural stability for both internal and external corners. It is compatible with dig-in and bolt-down installation methods, providing flexibility to suit different foundations and ground conditions.
Secure Fixings on Both Faces

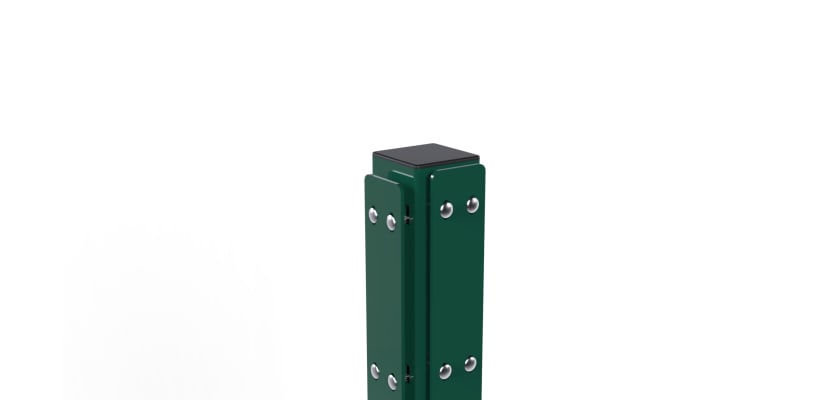

To connect adjoining panels securely, the kit includes two 80mm x 5mm galvanised clamp bars, one for each side of the corner. With side-by-side fixings used throughout the ProFence® 2X range, this design enhances rigidity, resists tampering, and preserves the fence line’s B3-certified security performance.
Seamless Integration with ProFence® Panels
This kit is designed to work flawlessly with 2.4m high ProFence® 2X panels, ensuring consistent security, alignment, and visual continuity across both straight runs and directional changes in the perimeter.
Learn More About LPS 1175
To better understand the LPS 1175 standard and select the most appropriate security solution for your project, explore our LPS 1175 blog.
Expert Advice & Support
If your fencing project includes corners or angled layouts, our technical team is here to help. Contact us today on 01283 512 111 or via live chat for product details, layout advice, and installation guidance on LPS 1175-certified security systems.
Specifications & Downloads
| Height | 2400mm [Installed] |
| Box Section of Posts | 80 x 80mm |
| Post Type | Dig In or Bolt Down |
| Material | Galvanised Steel |
| Finish | Polyester Powder Coated |
| PPC Colours | Green and Black as standard, Blue, Red, Grey and Yellow available on request |
| Compliant To | ISO 1461 [Galvanising] / BS EN 13436 [Powder Coating] |
What's Included
| Name | Quantity |
|---|---|
| ProFence® 2X Mesh Fencing Post [80X80X2.5mm] | 1 |
| ProFence® 2X Mesh Fencing Clamp Bar [80x5mm x 2350mm] | 2 |
| ProFence® 2X Mesh Fencing Ribbed Insert [80x80mm] | 1 |
| ProFence® 2X Galvanised Vertical Clamp Bar Fixing Bolts [M8x110mm] | 48 |
| ProFence® 2X Galvanised Snap Off Nut [M8] | 48 |
| ProFence® M16 x 125mm Ground Anchor [Bolt Down Option] | 4 |
