Height | 1800mm [Installed] |
Access Width | 10000mm |
Box Sections of Posts | 200 x 200mm |
Gate Hanging Side | Right Hand Hung (From Outside Looking In) |
Thickness of Wires | 4mm |
Material | Hot Dipped Galvanised Steel |
Compliant To | ISO 1461 |
PPC Colours | Available in Green, Black, Blue, Red, Grey, & Yellow - Other custom RAL colours are available |
Name | Quantity |
---|---|
Sliding Gate Leaf | 1 |
Catch Gate Leaf | 1 |
Hinge Gate Post | 2 |
Drop Bolts | 2 |
Adjustable Gate Eyes | 6 |
Ribbed Insert for Gate Post | 2 |
Ribbed Insert for Gate Frame | 4 |
Ground Anchor Bolts [Bolt Down Version] | 8 |

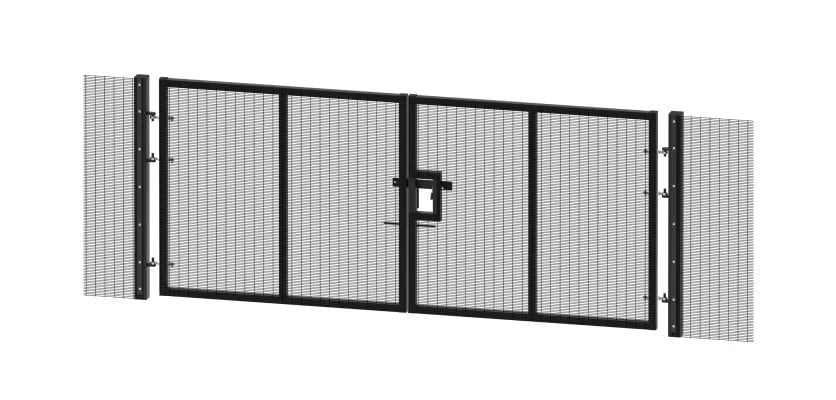

Discover the ProFence® SR1 (A1) LPS 1175 1.8m x 10.0m 358 Mesh Double Leaf Gate Kit by First Fence. A cornerstone of our extensive new security product line-up of security-rated fencing and gates.
The new ProFence® collection has undergone scrupulous testing and has proudly earned accreditation under the stringent LPS 1175 SR1 (A1) standards. This industry-recognised accreditation signifies a one-minute delay against opportunistic attacks using various tools from Toolkit A, including glass cutters, bolt cutters, wrenches, screwdrivers and pliers. These discreet hand tools are the preferred choice for potential intruders due to their concealability. This critical sixty-second delay provides valuable time for on-site security personnel to detect breaches on CCTV and respond promptly.
First Fence's ProFence® product range comprises both 868 and 358 mesh options, offering fencing kits and single and double leaf gates in a wide range of heights and widths.
Our unwavering commitment to quality and security is evident in the rigorous SR1 testing process, which has rightfully earned this product range a place in the Red Book.
Our double leaf gate provides exceptional flexibility in terms access control, allowing for one or both leaves to be open or closed allowing vehicles through with ease. Crafted from high-quality steel, which has been hot-dipped galvanised to ISO 1461 standards. Each gate is further shielded from damage and rust by a sleek polyester powder coating, available in various RAL colours. This protection is absolutely essential for a product permanently sited outdoors and in daily use.
This comprehensive kit includes gate leaves, two hinge gate posts, two drop bolts, six adjustable gate eyes, and ribbed inserts for the gate frame and posts. The gate leaves feature a robust 358 mesh infill that is challenging to cut or climb. This sturdy mesh is ideal for scenarios requiring clear boundary visibility or integration with CCTV systems.
For added security, our SR1 rated gate kit incorporates six adjustable gate eyes, ensuring gate stability even in the unlikely event of hinge failure. Each adjustable gate eye bolt is securely fastened with a snap-off nut, minimising the risk of post-installation removal. Additionally, two Drop Bolts provide extra safety.
The SR1-rated gate kit is available in both dig-in and bolt-down formats, making it suitable for various ground conditions. Whether it's grass or other soft terrain, which requires the dig-in option, or concrete and other solid ground types, which need bolt-down posts, we have you covered.
The bolt-down kit includes essential ground anchor bolts, while the dig-in kit requires the addition of Post Mix to your order. We recommend four bags per post for an optimally sturdy installation. You should use either C20 or C25 post mix.
Our SR1 rated mesh gate is designed to accommodate both pedestrian access and small vehicles such as forklifts and is the largest width gate in the range at 10.0m. The sliding latch bolt keeps the leaves securely closed, and the drop bolts ensure firm leaf placement. You have the flexibility to open one or both leaves to meet your specific site needs.
A recommended range of approved Secure By Design (SBD) padlocks is available.
ProFence® Fencing is certified for gradients from 0 to 25 degrees.
