ProFence® SR1 (A1) LPS 1175 1.8m High 868 Mesh Corner Post Kit
Product Description
ProFence® SR1 (A1) LPS 1175 1.8m High 868 Mesh Corner Post Kit
Introducing the ProFence® SR1 (A1) LPS 1175 1.8m High 868 Mesh Corner Post Kit.
First Fence proudly presents to our customers the ProFence® SR1 (A1) rated LPS 1175 868 mesh corner post kit, a versatile solution designed for a wide range of high-security perimeter and access control applications. This system excels in situations where features like CCTV integration or a prominent visual deterrent are of paramount importance.
What is A1 (SR1) rated security fencing?
ProFence® security rated fencing, brought to you by First Fence, is a cost-effective and extremely strong security mesh system that holds certification under the rigorous LPS 1175 A1 (SR1) standards. This certification guarantees a one-minute delay against opportunistic attacks utilising Toolkit A tools, including pliers, glass cutters, spanners, bolt cutters and engineer's hooks.
The SR1 (A1) ratings and LPS 1175 compliance set the benchmark for thwarting determined, opportunistic attempts at forced entry into facilities safeguarding high-value assets. This invaluable one-minute delay provides on-site security teams with a crucial opportunity to intercept intruders before they breach the security perimeter.
Features and Benefits

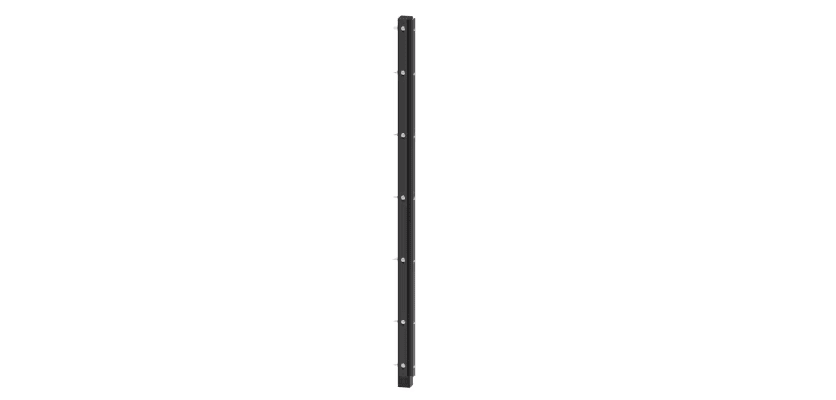

The ProFence® security-rated system Corner Post Kit consists of a corner post, clamp bars, M8x90mm through bolts and nuts, clips, and black ribbed inserts for the open box section ends.

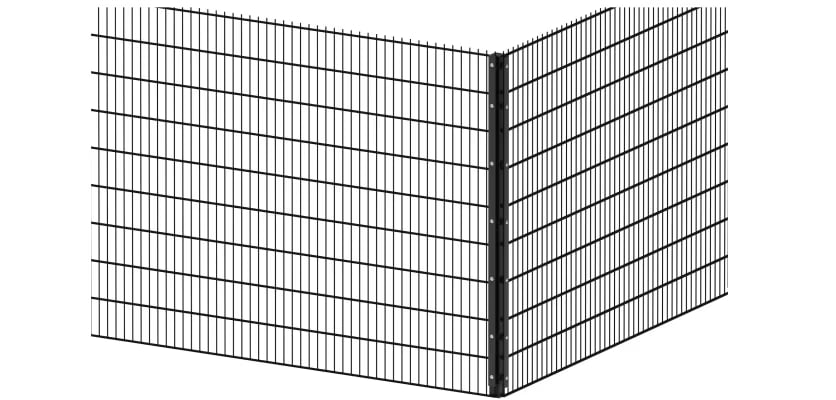

This kit, available in both dig-in and bolt-down varieties, is the perfect solution for when you need to create a corner in your fencing run.
Crafted from high quality , pre galvanised steel compliant to BS EN 10346 and polyester powder-coated in green or black (with other colour options available). This combination provides superior resistance to rust and corrosion, making it ideal for enduring outdoor use.
Don’t forget to check out our Profence® range which includes 358 and 868 mesh panels, as well as a range of gates and post kits.
How to Install
This corner post kit is approached in the same way as a standard mesh post, concrete in on softer ground or bolt down to hard ground substance (ground anchors come with the bolt down option). It is highly recommended that you use either C20 or C25 post mix.
The U-clip fixing is positioned over the hole in the post, then the panel and clamp bar are placed over this and the long M8x90mm bolt passes through all of the components and is fastened firmly to the back of the post.
ProFence® is certified for gradients from 0 to 25 degrees.
Please Note: M16 x 125mm Ground Anchor are provided with all kits however the minimum requirement is M12 x 125mm Ground Anchor for bolt down posts.
Get in Touch
Our First Fence sales team is ready to assist you with any inquiries regarding your purchase. You can reach them by calling 01283 511211 or through our convenient online chat system.
Specifications & Downloads
| Height | 1.8m [Installed] |
| Box Section of Post | 60x60mm |
| Post Type | Dig In or Bolt Down |
| Material | Pre-Galvanised Steel |
| Finish | Green and Black as standard, Blue, Red, Grey and Yellow also available on request |
| Compliant To | BS EN 10346 [Galvanising] |
What's Included
| Name | Quantity |
|---|---|
| Profence® Corner Post [1.8m high 60x60mm x 2mm] | 1 |
| Profence® 1.8m Clamp Bar [Actual height 1830mm] [Currently supplying Option B] | 2 |
| Profence® Security Clip [Currently supplying Option 2] | 14 |
| M8x100mm Cup Head Bolts | 14 |
| M8 Snap Off Nuts | 14 |
| Black Ribbed Inserts | 1 |
| M16 x 125mm Ground Anchors [Bolt Down Option] | 4 |
