PaliFence® LPS 1175 SR1 (A1) 3.0m High Palisade Security End Post Kit
Product Description
PaliFence® LPS 1175 SR1 (A1) 3.0m High Palisade Security End Post Kit
The PaliFence® Palisade Security Fencing system proudly carries impressive SR1 ratings, showcasing its capability to withstand a sixty-second assault involving tools like knives, levers, pliers, and spanners. This robust fencing design goes beyond the security level provided by a typical palisade system, presenting a formidable perimeter deterrent with a challenging climbability factor.
What is SR1 (A1) rated security fencing?
PaliFence® provides a cost-effective and remarkably robust security palisade system, certified to meet the rigorous LPS 1175 SR1 (A1) standards. This certification guarantees a one-minute delay against opportunistic attacks using Toolkit A, including discreet hand tools such as glass cutters, pliers, spanners, and bolt-cutters. The SR1 ratings and compliance set the benchmark for thwarting attempted forced entry into facilities safeguarding high-value assets. This one-minute delay offers on-site security teams a crucial opportunity to intercept intruders before they breach the security perimeter.
Features and Benefits

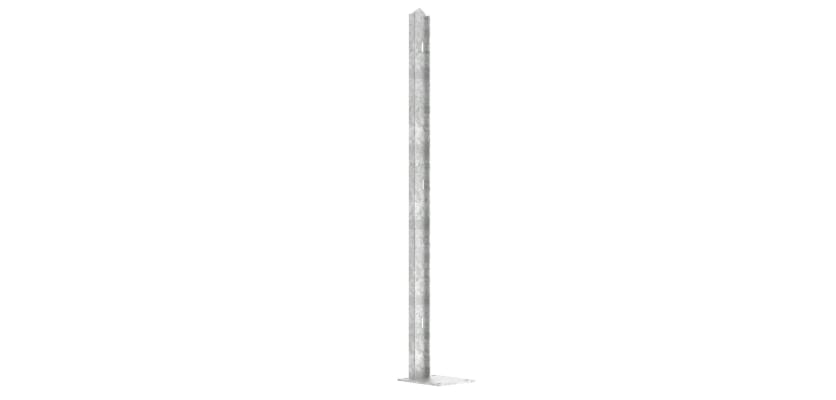

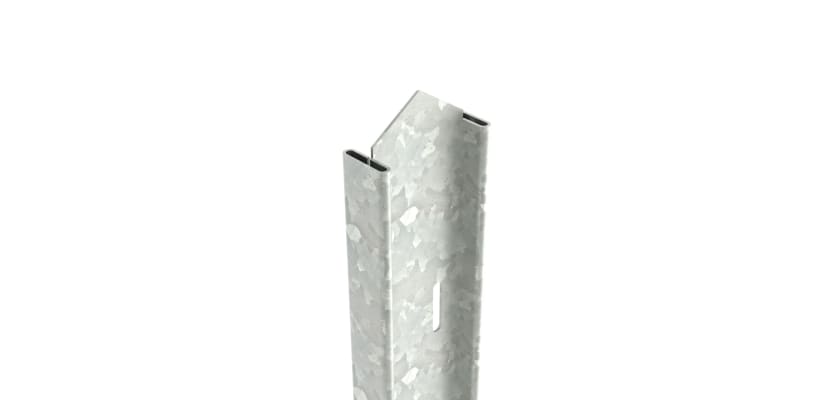

The End Post Kit in the PaliFence® security-rated system comprises an IPE post, fish plates, and accompanying fixings. The bolts are equipped with anti-vibration technology to deter unauthorised removal attempts. Powder-coated alternatives are available. The combination of galvanisation and powder coating guarantees outstanding resistance to rust and corrosion, making it ideal for durable outdoor applications.

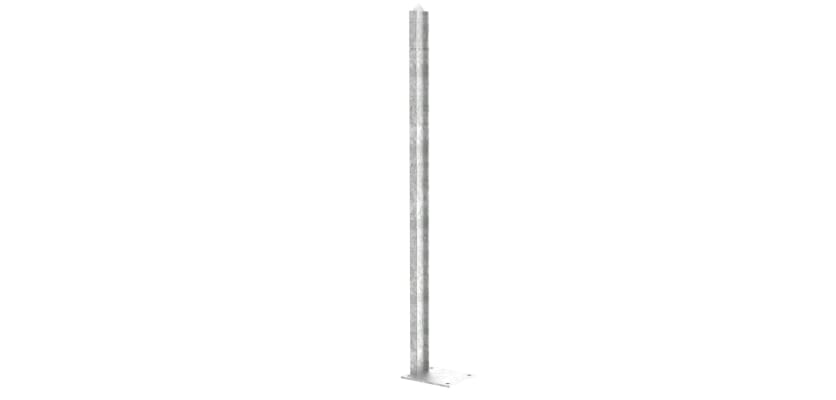

This Post Kit, available in both dig-in and bolt-down varieties, is the perfect solution for when you need to form an end to your fencing run.
How to install

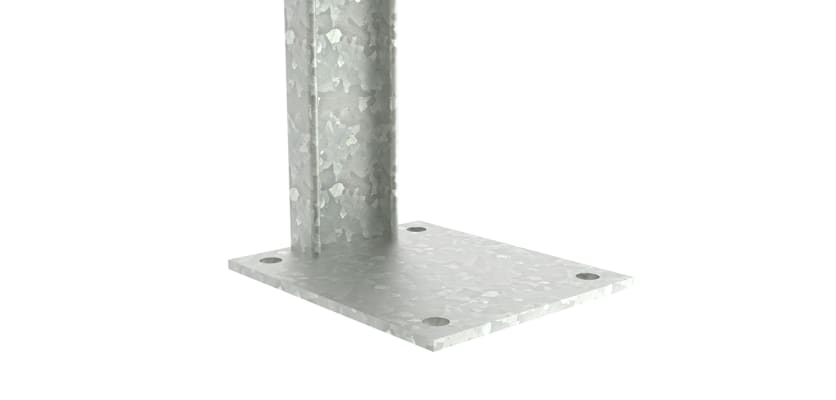

The installation process for this end post kit follows the same method as a standard palisade post, where it can be either anchored into softer ground with concrete or secured onto hard ground surfaces with bolts. For the dig-in variety, it is suggested to use either a C20 or C25 post mix and to use three bags per post for a secure installation. The bolt-down format comes with four M16 x 125mm ground anchors per post.
PaliFence® is certified for gradients from 0 to 30°, and when correctly installed, the fencing system will give a 50mm ground clearance.
See First Fence's certified products in RedBook Live.
Get in touch
If you need any assistance with this product range, then please contact us and speak to a member of the sales team, who will be happy to guide you through your selection. The team can be contacted by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Height | 3.0m [Installed] |
| Total Post Length | 3.0m [Bolt Down], 3.7m [Dig In] |
| Post Section | 100 x 55mm |
| Post Types | Dig In, Bolt Down |
| Material | Hot Dip Galvanised Steel |
| Finish | Powder Coated, Galvanised |
| PPC Colours | Black, Green, Red, Blue, Grey & Yellow |
| Compliant To | ISO 1461 [Galvanising] |
| Compliant To | BS EN 13438 [PPC] |
What's Included
| Name | Quantity |
|---|---|
| PaliFence® Post [Style may vary between IPE and Rolled] | 1 |
| End Fish Plate | 3 |
| Fish Plate Fixings [M12 x 30mm Patched Bolts c/w Shear Nuts] | 3 |
| M16 x 125mm Ground Anchor Bolts [Bolt Down Version] | 4 |
Specifications & Downloads
| Height | 3.0m [Installed] |
| Total Post Length | 3.0m [Bolt Down], 3.7m [Dig In] |
| Post Section | 100 x 55mm |
| Post Types | Dig In, Bolt Down |
| Material | Hot Dip Galvanised Steel |
| Finish | Powder Coated, Galvanised |
| PPC Colours | Black, Green, Red, Blue, Grey & Yellow |
| Compliant To | ISO 1461 [Galvanising] |
| Compliant To | BS EN 13438 [PPC] |
What's Included
| Name | Quantity |
|---|---|
| PaliFence® Post [Style may vary between IPE and Rolled] | 1 |
| End Fish Plate | 3 |
| Fish Plate Fixings [M12 x 30mm Patched Bolts c/w Shear Nuts] | 3 |
| M16 x 125mm Ground Anchor Bolts [Bolt Down Version] | 4 |
