PaliFence® LPS 1175 SR1 (A1) 2.4m High Palisade Security End Post Kit
Product Description
PaliFence® LPS 1175 SR1 (A1) 2.4m High Palisade Security End Post Kit
The PaliFence® Palisade Security Fencing system boasts an impressive SR1 rating, indicating its capacity to endure a sixty-second assault using small, discreet hand tools like knives, levers, pliers, and spanners. This robust fencing design surpasses the security provided by a typical palisade system, presenting a formidable perimeter deterrent that is difficult to climb.
What is SR1 (A1) rated security fencing?
PaliFence® introduces a budget-friendly and exceptionally sturdy security palisade system, certified to comply with the rigorous LPS 1175 SR1 (A1) standards. This certification ensures a one-minute resistance against opportunistic attacks using Toolkit A, which includes discreet hand tools like glass cutters, pliers, spanners, and bolt-cutters. The SR1 ratings and adherence establish the standard for preventing attempted forced entry into facilities protecting high-value assets. The one-minute delay provides on-site security teams with a critical window to intervene and intercept intruders before breaching the security perimeter.
Features and Benefits

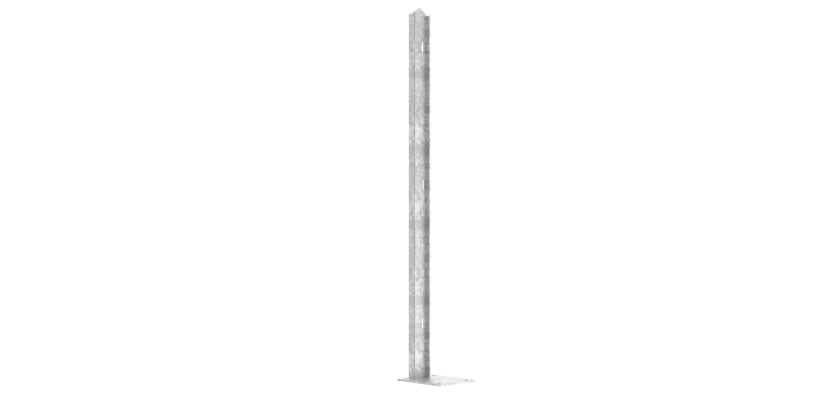

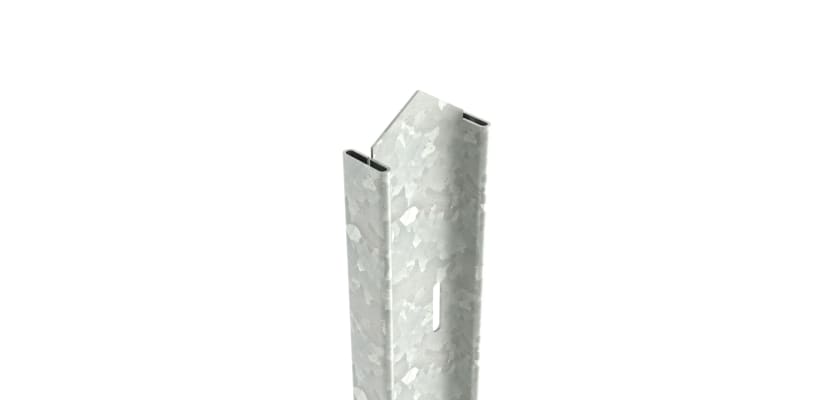

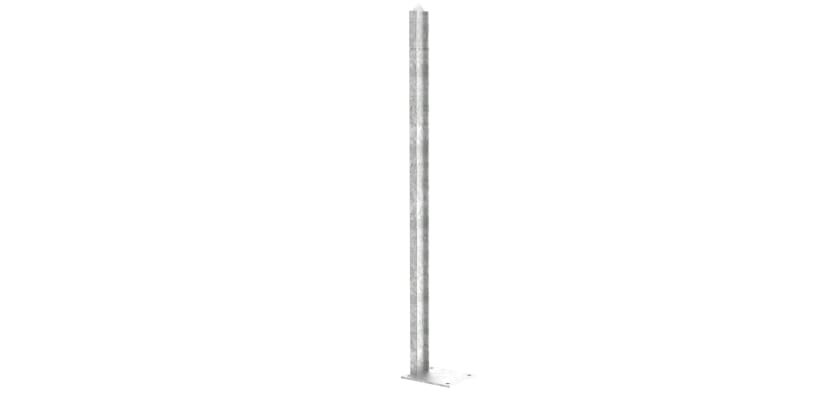

The security-rated End Post Kit in the PaliFence® range comprises an IPE post, fish plates, and corresponding fixings. The bolts incorporate anti-vibration technology, deterring unauthorised removal attempts. Powder-coated alternatives are available. The galvanised and powder-coated combination ensures excellent resistance to rust and corrosion, making it well-suited for enduring outdoor use.
When it comes to completing your fencing run, the Post Kit provides the perfect solution, available in both dig-in and bolt-down options.
How to install

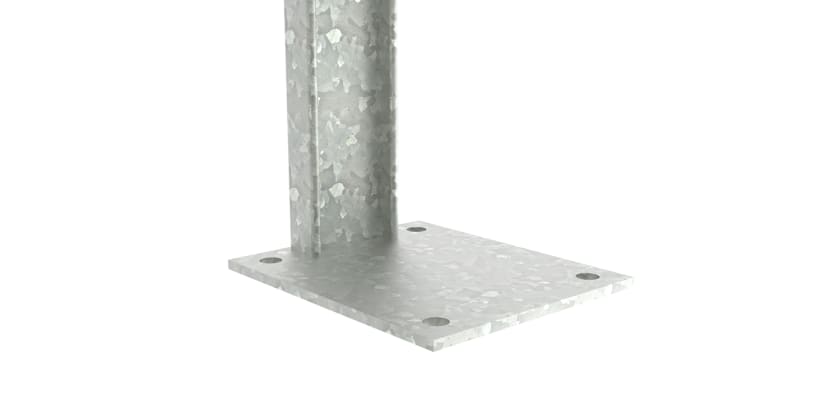

The approach to installing this end post kit mirrors that of a standard palisade post, as it can be either concreted into softer ground or bolted down onto hard ground surfaces. For the dig-in option, it is recommended to use either a C20 or C25 post mix, with 3 bags per post, ensuring a secure installation. Alternatively, the bolt-down format includes four M16 x 125mm ground anchors.
PaliFence® is certified for gradients from 0 to 30°, and when correctly installed, the fencing system will give a 50mm ground clearance.
Get in touch
If you need any assistance with this product range, then please contact us and speak to a member of the sales team, who will be happy to guide you through your selection. The team can be contacted by calling 01283 512111 or by using the online chat tool.
Specifications & Downloads
| Height | 2.4m [Installed] |
| Total Post Length | 2.4m [Bolt Down], 3.1m [Dig In] |
| Post Section | 100 x 55mm |
| Post Types | Dig In, Bolt Down |
| Material | Hot Dip Galvanised Steel |
| Finish | Powder Coated, Galvanised |
| PPC Colours | Black, Green, Red, Blue, Grey & Yellow |
| Compliant To | ISO 1461 [Galvanising] |
| Compliant To | BS EN 13438 [PPC] |
What's Included
| Name | Quantity |
|---|---|
| PaliFence® Post [Style may vary between IPE and Rolled] | 1 |
| End Fish Plate | 3 |
| Fish Plate Fixings [M12 x 30mm Patched Bolts c/w Shear Nuts] | 3 |
| M16 x 125mm Ground Anchor Bolts [Bolt Down Version] | 4 |
