Oxford LowPro 15/10 Trench Cover Infill (Long Side)
The infills remove the recess between plates when two or more are used
Product Description
Oxford LowPro 15/10 Trench Cover Infill (Long Side)
Trench Covers are invaluable when digging trenches for service work, as they enable pedestrian safety. It is important to do a site safety risk assessment before commencing any works and choosing the right products for the job. First Fence carries a range of road plates and trench covers; see them here.
The LowPro 15/10 Trench Cover is a robust pedestrian walk board that can withstand heavy loads and minimise trip hazards. It has patented Flexi-Edges moulded all around the perimeter of the board, creating a very durable and protective barrier. If you are covering a larger hole, several Trench Covers can be used together, and to ensure they do not move apart, Infill Strips can be used to connect them together.

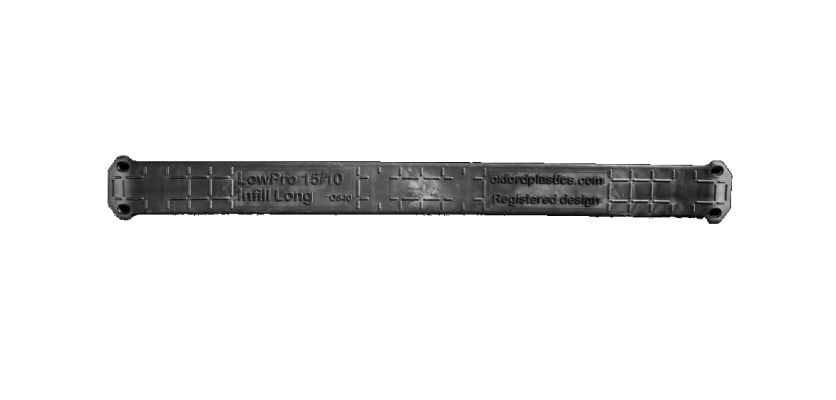

The Oxford LowPro 15/10 Trench Cover Infill is manufactured from black PVC and measures 1500mm in length and 150mm in width. The longer infill is suitable for a wider trench where the LowPro Trench Covers are installed in a portrait format.
Installation
Installation of the Infills is relatively simple (see Installation Guide in the Downloads section for visual)
- Unscrew the plate and bolts at each end of the Infill
- Insert the plate underneath the LowPro through the bolt hole
- Insert the second plate in the bolt hole on the long or short side
- Place the LowPro with the plates centred over the width of the trench
- Place the next LowPro in line with the first over the Infill plate
- Ensure the LowPro is sitting on the plate at both ends
- Place the Infill between the LowPros and secure with 2 bolts at either end
- Continue placing LowPros over the trench and attaching Infills until the trench is fully covered
Contact Us
If you have any questions or need advice, please get in touch with us. We are available by phone on 01283 512 111, email sales@firstfence.co.uk, or via live chat.
Specifications & Downloads
| Material | PVC |
| Dimensions | 1500mm (L) 150mm (W) 35mm (H) |
| Weight | 2.3kg |
| Connector Plate | Zinc plated steel |
| Connector Plate Bolts | M10 x 20mm hex head flanged bolt (zinc yellow coating) |
| Colour | Black |
Specifications & Downloads
| Material | PVC |
| Dimensions | 1500mm (L) 150mm (W) 35mm (H) |
| Weight | 2.3kg |
| Connector Plate | Zinc plated steel |
| Connector Plate Bolts | M10 x 20mm hex head flanged bolt (zinc yellow coating) |
| Colour | Black |
