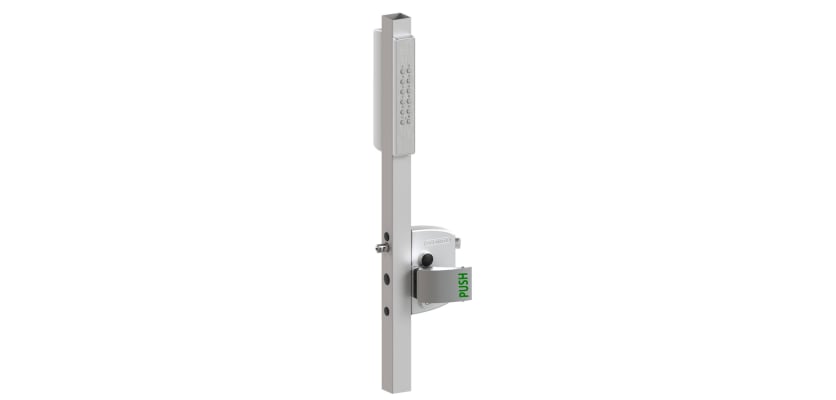

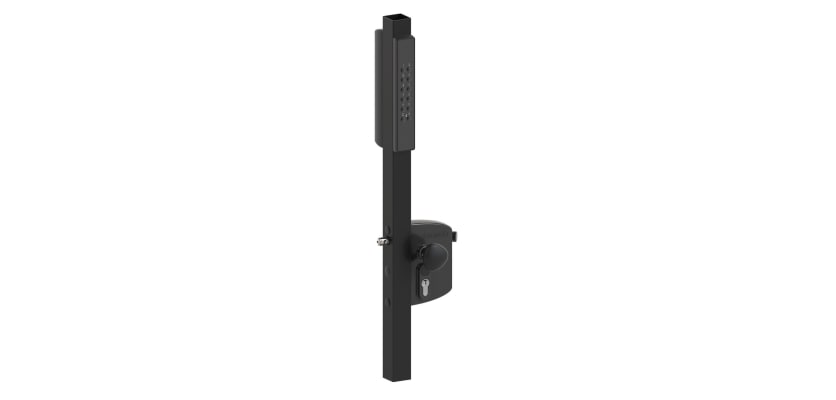

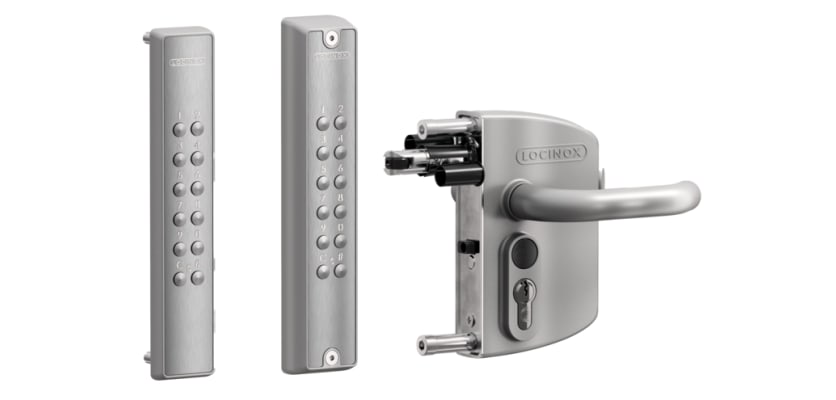

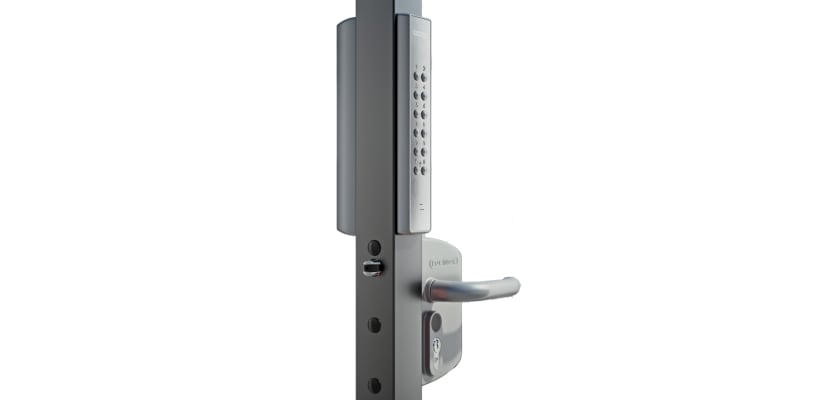

Locinox Volta Surface Mounted Lock With External Battery Powered Keypad
Product Description
Locinox Volta Surface Mounted Lock With External Battery Powered Keypad
The Locinox Volta Surface Mounted Lock with External Battery Powered Keypad is a versatile access control solution designed to add secure, keypad-controlled entry to gate installations. Combining a surface-mounted lock with a separate external keypad, the Volta system delivers reliable access management without the need for a hard-wired power supply.
The keypad connects through the gate profile, allowing for a clean and discreet installation, while the lock integrates seamlessly with the modular Locinox hole pattern for accurate fitting. Users can select, modify, or delete up to 100 individual PIN codes, providing flexible access control for residential, commercial, and shared-use environments. Powered by an energy-efficient battery set capable of up to 150,000 open and close cycles in all weather conditions, the Volta system operates independently of external power sources. The lock is available in two configurations: a single version with one keypad and free exit, or a double version with two keypads for controlled access on both sides.
#Please note - keep not included#
Key Features
- Surface-mounted lock with an external battery-powered keypad
- Enables keypad-based access control without an external power supply
- Keypad connected through the gate profile for a neat installation
- Compatible with the modular Locinox hole pattern
- Stores up to 100 programmable PIN codes
- Energy-efficient battery set rated for up to 150,000 cycles
- Suitable for all weather conditions
- Available in single (keypad and free exit) or double (two keypads) configurations
Applications
The Locinox Volta Surface Mounted Lock with External Battery Powered Keypad is suitable for:
- Pedestrian access gates
- Residential and commercial gate installations
- Sites requiring controlled keypad access
- Locations without access to a mains power supply
- New builds and retrofit access control projects
Contact Us
For advice on choosing the correct Volta configuration or support with installation and access control options, call 01283 512111, speak to our team via online chat, or email sales@firstfence.co.uk for expert sales assistance.

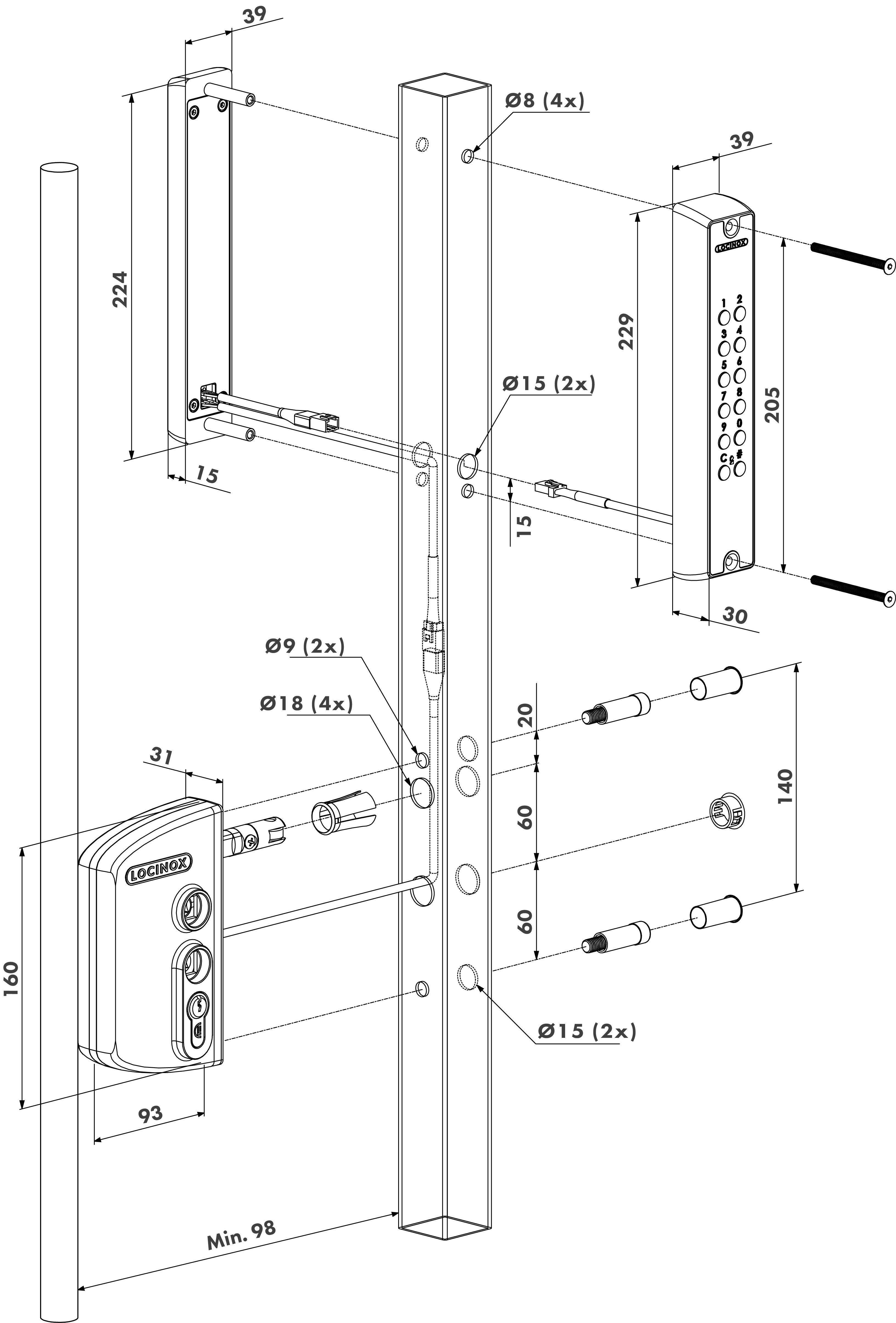

Specifications & Downloads
| Keypad Height | 229mm |
| Keypad Width | 39mm |
| Keypad Depth | 30mm |
| Lock Height | 160mm |
| Lock Width | 93mm |
| Lock Depth | 31mm |
| Total Weight | Approx. 1.61kg |
| Profile Type | Square |
| IP Rating | 56 |
What's Included
| Name | Quantity |
|---|---|
| Surface Mount Lock | 1 |
| Lockbox | 1 |
| Handle Set | 1 |
| Lock Cylinder | 1 |
| Battery Pack for Keypad | 1 |
Videos
Specifications & Downloads
| Keypad Height | 229mm |
| Keypad Width | 39mm |
| Keypad Depth | 30mm |
| Lock Height | 160mm |
| Lock Width | 93mm |
| Lock Depth | 31mm |
| Total Weight | Approx. 1.61kg |
| Profile Type | Square |
| IP Rating | 56 |
What's Included
| Name | Quantity |
|---|---|
| Surface Mount Lock | 1 |
| Lockbox | 1 |
| Handle Set | 1 |
| Lock Cylinder | 1 |
| Battery Pack for Keypad | 1 |
