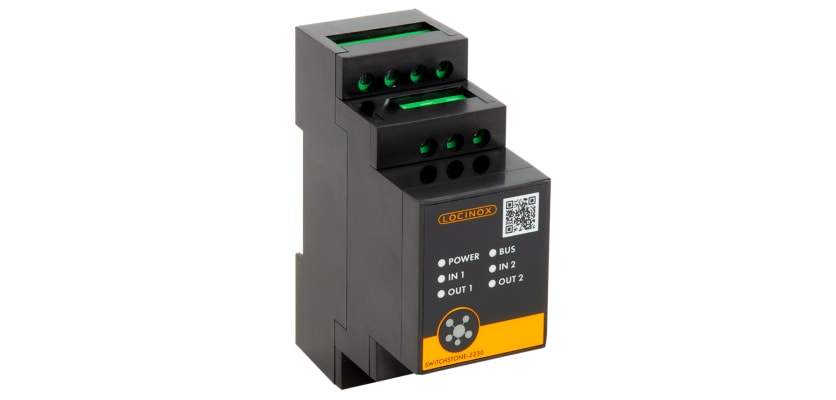

Locinox Switchstone 2-Channel Relay Module
Product Description
Locinox Switchstone 2-Channel Relay Module
The Locinox SwitchStone 2-Channel Relay Module is a versatile and secure control component developed for use in combination with access devices such as the SlimStone-X keypad. Designed to expand system functionality, it enables reliable switching and control across a wide range of gate automation, access control, and lighting applications.
The module features two external relays, each offering Common, Fail Open, and Fail Close contacts to provide maximum flexibility and security. Capable of switching voltages up to 250V AC or 26V DC, the SwitchStone is suitable not only for access control devices but also for auxiliary functions such as lighting control. In addition, free-exit functionality can be easily implemented using the two dedicated inputs on the module, allowing for safe and convenient egress solutions.
This module must be used exclusively with the Locinox PowerStone 60W power supply.
Key Features
Two-channel relay module for advanced access control integration.
Designed for use with devices such as the SlimStone-X keypad.
Two external relays with Common, Fail Open, and Fail Close contacts.
Switching capacity up to 250V AC / 26V DC.
Suitable for access control and lighting applications.
Two inputs for simple implementation of free-exit functionality.
Enhances system flexibility and security.
Applications
The Locinox SwitchStone 2-Channel Relay Module is suitable for:
Integration with Locinox keypads and access control devices.
Pedestrian gate automation systems.
Lighting control linked to access systems.
Residential, commercial, and public access installations requiring flexible relay control.
Contact Us
If you need assistance selecting compatible access control components or power supplies for your project, call 01283 512111 or speak to us via online chat for expert support.
Specifications & Downloads

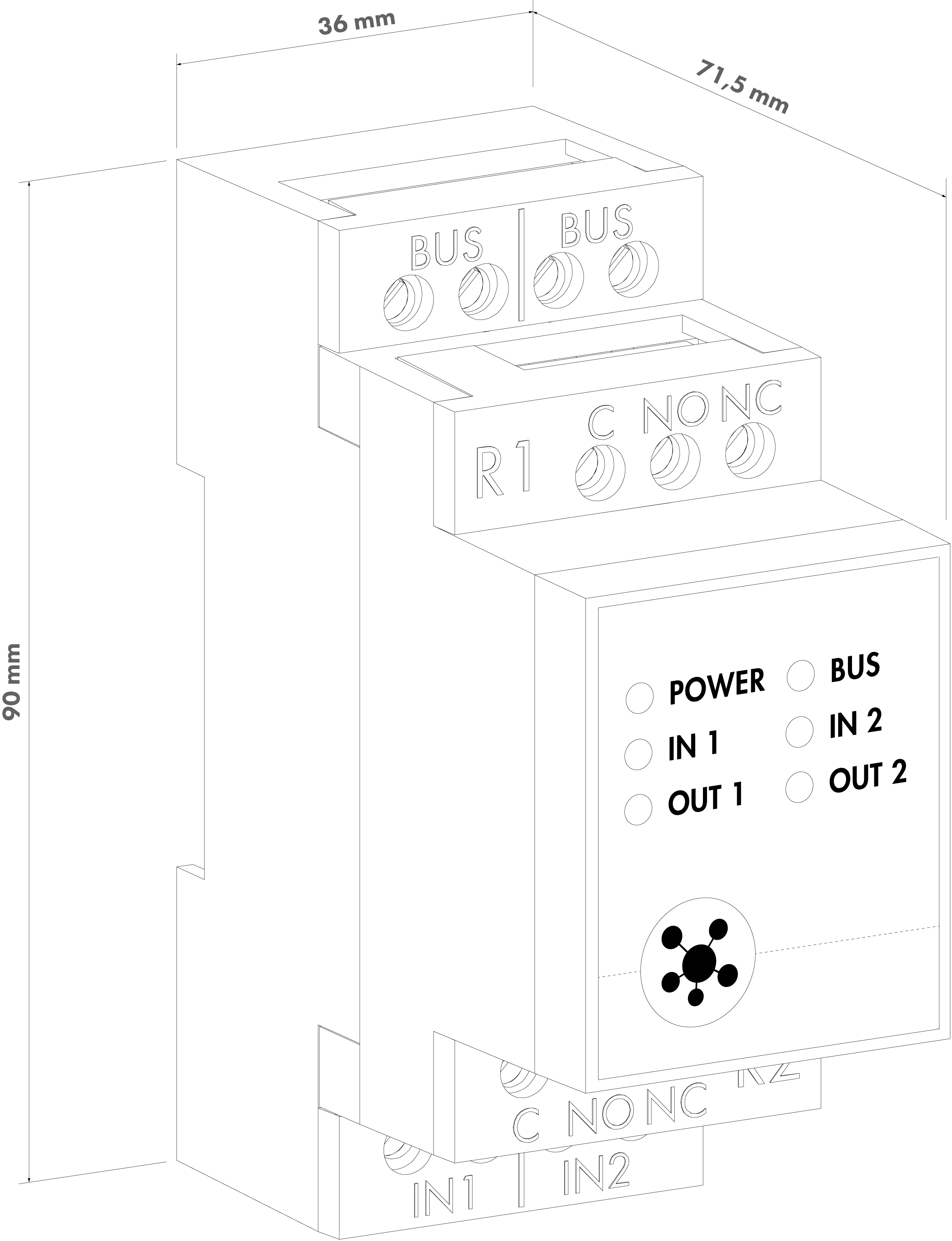

| Height | 90mm |
| Width | 36mm |
| Depth | 71.5mm |
| Total Weight | 0.15kg |
| Voltage Requirement | 250V AV / 26V DC |
| Current | 0.07A Maximum |
| Power Consumption | 1.7W Maximum |
