Locinox Seventylock-A Multi-Functional Insert Lock
Product Description
Locinox Seventylock-A Multi-Functional Insert Lock
The Locinox Seventylock-A Multi-Functional Insert Lock is a versatile and reliable locking solution recommended for residential gate applications. Featuring a 100% stainless steel internal mechanism, this insert lock is designed to deliver long-term durability and smooth operation across a wide range of gate materials.
With a 50 mm backset and a 10 mm adjustable bolt, the Seventylock-A allows precise alignment for secure and consistent latching. Its patented internal mechanism enables two distinct locking functions via the cylinder, allowing control of the latch bolt and/or the handles depending on the chosen configuration. When combined with a mechanical keep, both the latch bolt and handles can be locked, providing enhanced security. For installations requiring compatibility with electric keeps, the lock can be configured so the latch bolt remains unlocked while the handles stay locked.

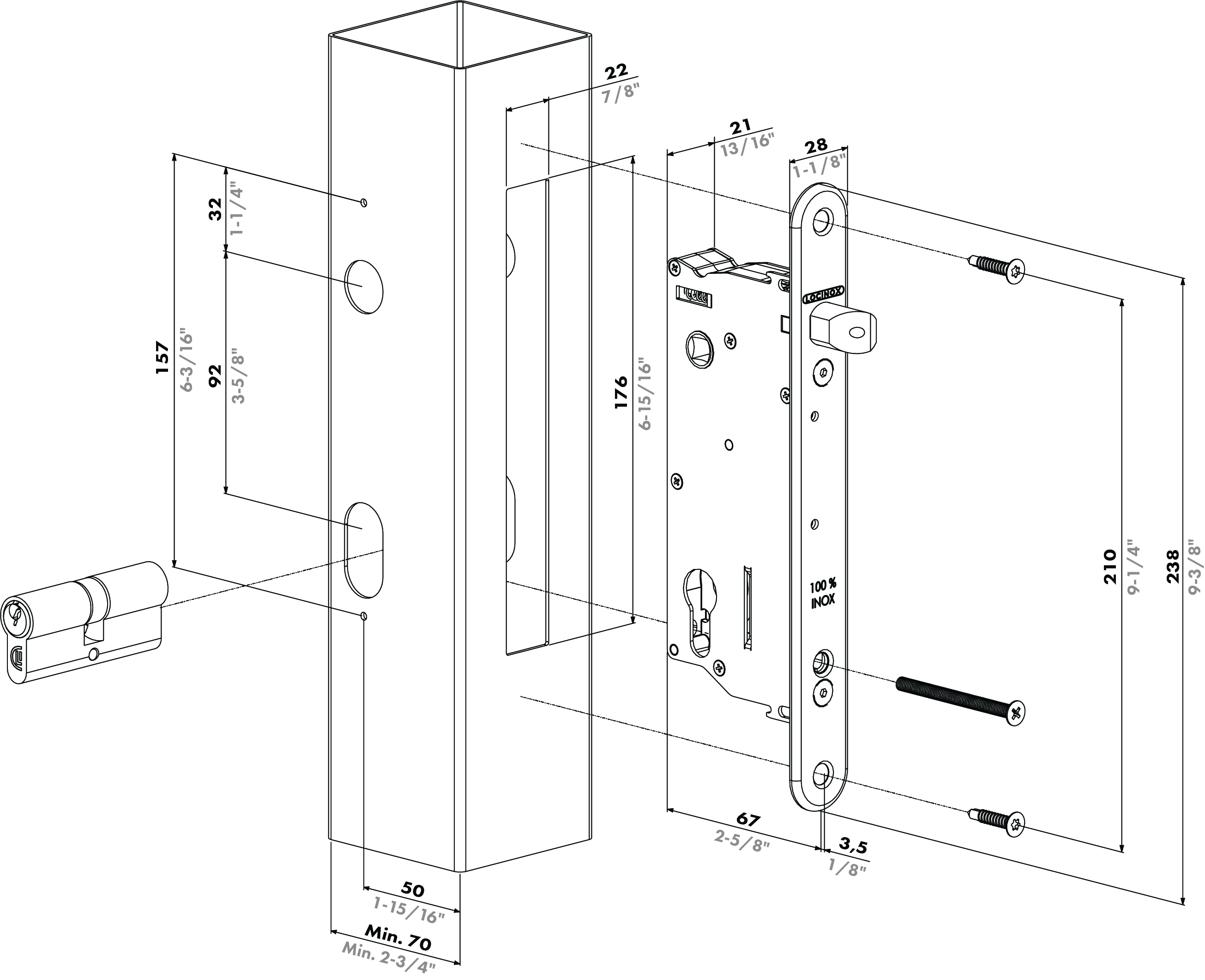

The lock is designed for straightforward installation using self-drilling screws into a rectangular recess, making it suitable for metal, aluminium, timber, and PVC profiles starting from 70 mm.
Key Features
Multi-functional insert lock recommended for residential use.
100% stainless steel internal mechanism for durability.
50 mm backset with 10 mm adjustable bolt.
Patented mechanism offering multiple locking configurations.
Allows independent locking of latch bolt and/or handles.
Compatible with electric keep configurations.
Easy installation with self-drilling screws.
Suitable for metal, aluminium, timber, and PVC profiles from 70 mm.
Applications
The Locinox Seventylock-A Multi-Functional Insert Lock is suitable for:
Residential pedestrian and garden gates.
Gates requiring flexible locking configurations.
Installations using mechanical or electric keeps.
Projects requiring a concealed insert lock solution.
Contact Us
If you need assistance selecting the correct insert lock or compatible components for your project, call 01283 512111 or contact us via online chat for expert support.
Specifications & Downloads
| Height | 238mm |
| Width | 70.5mm |
| Depth | 21mm |
| Total Weight | Approx. 1.14kg |
| Profile Size | 70mm |
| Profile Type | Flat, Square |
Specifications & Downloads
| Height | 238mm |
| Width | 70.5mm |
| Depth | 21mm |
| Total Weight | Approx. 1.14kg |
| Profile Size | 70mm |
| Profile Type | Flat, Square |
