Locinox Mammoth Second Generation 180° Gate Closer and Hinge Combination
Product Description
Locinox Mammoth Second Generation 180° Gate Closer and Hinge Combination
The Locinox Mammoth 180 is an elegant and powerful self-closing hinge designed for gates that open up to 180°. Engineered for durability and smooth operation, it is suitable for gates weighing up to 150 kg and measuring up to 1.5 m wide. The built-in double bearing system ensures exceptional functionality, even with frequent use.
With the Active Thermal System, the Mammoth 180 maintains a consistent closing speed regardless of weather conditions, providing reliable performance in all environments. The hinge is supplied with the Dino hinge for a complete, easy-to-install solution.
Key Features
Self-closing hinge suitable for 180° gate openings.
Supports gates up to 150 kg and 1.5 m wide.
Double bearing system for smooth and reliable operation.
Active Thermal System ensures consistent closing speed in varying temperatures.
Supplied with a Dino hinge for a complete installation.
Ideal for high-traffic pedestrian and light vehicular gates.
Applications
The Mammoth 180 is ideal for:
Residential or commercial pedestrian gates.
Gates exposed to extreme weather conditions.
High-use entrances requiring consistent, safe closing.
Security or aesthetic gate installations where smooth operation is important.
Explore other Products
A self-closing gate is only half the battle; it also needs to lock securely. Consider the LAKQ Gate Locks, the Slimstone 2 Keypad or the Modulec-SF Electric Strike.
Contact Us
For more information or assistance selecting the right solution for your gate, call us on 01283 512111 or reach us via online chat.

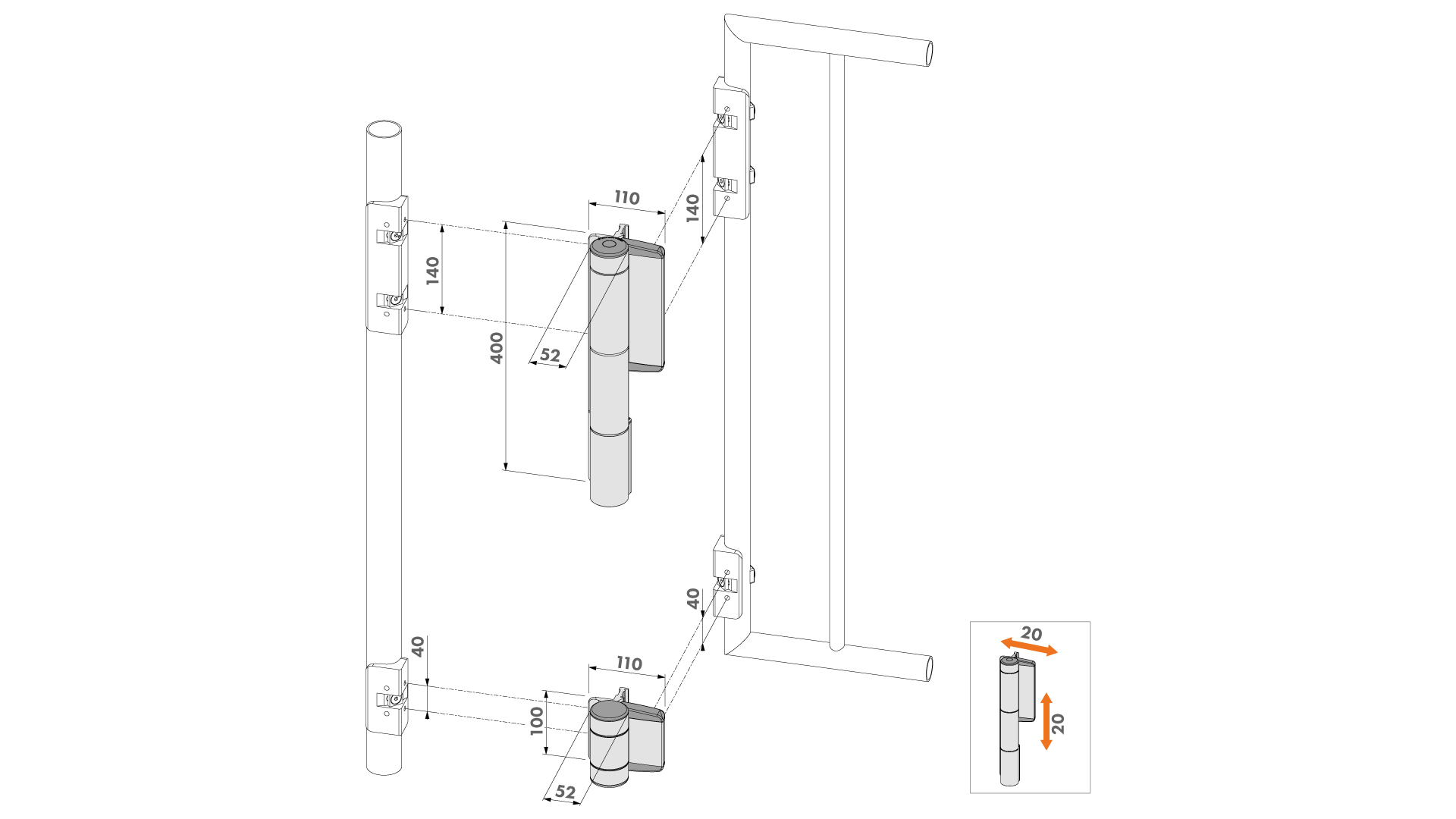

Specifications & Downloads
| Minimum Gate Width | 900mm |
| Maximum Gate Width | 1500mm |
| Maximum Operating Weight | 150kg |
| Height | 400mm |
| Width | 110mm |
| Depth | 60mm |
| Item Weight | Approx. 4.7kg |
| Maximum Force | 16N |
| Maximum Opening Angle | 180° |
What's Included
| Name | Quantity |
|---|---|
| Self-Closing Hinge | 1 |
| Dino Bottom Hinge | 1 |
| Quick-Fix Mounting Pack | 1 |
Specifications & Downloads
| Minimum Gate Width | 900mm |
| Maximum Gate Width | 1500mm |
| Maximum Operating Weight | 150kg |
| Height | 400mm |
| Width | 110mm |
| Depth | 60mm |
| Item Weight | Approx. 4.7kg |
| Maximum Force | 16N |
| Maximum Opening Angle | 180° |
What's Included
| Name | Quantity |
|---|---|
| Self-Closing Hinge | 1 |
| Dino Bottom Hinge | 1 |
| Quick-Fix Mounting Pack | 1 |
